994001 (Pro-Aire 27) - Gravely Pro-Aire Vacuum, Honda (SN: 000101 & Above) ENGINE AND DRIVE Parts Diagram

Pro-Aire Vacuum, Honda

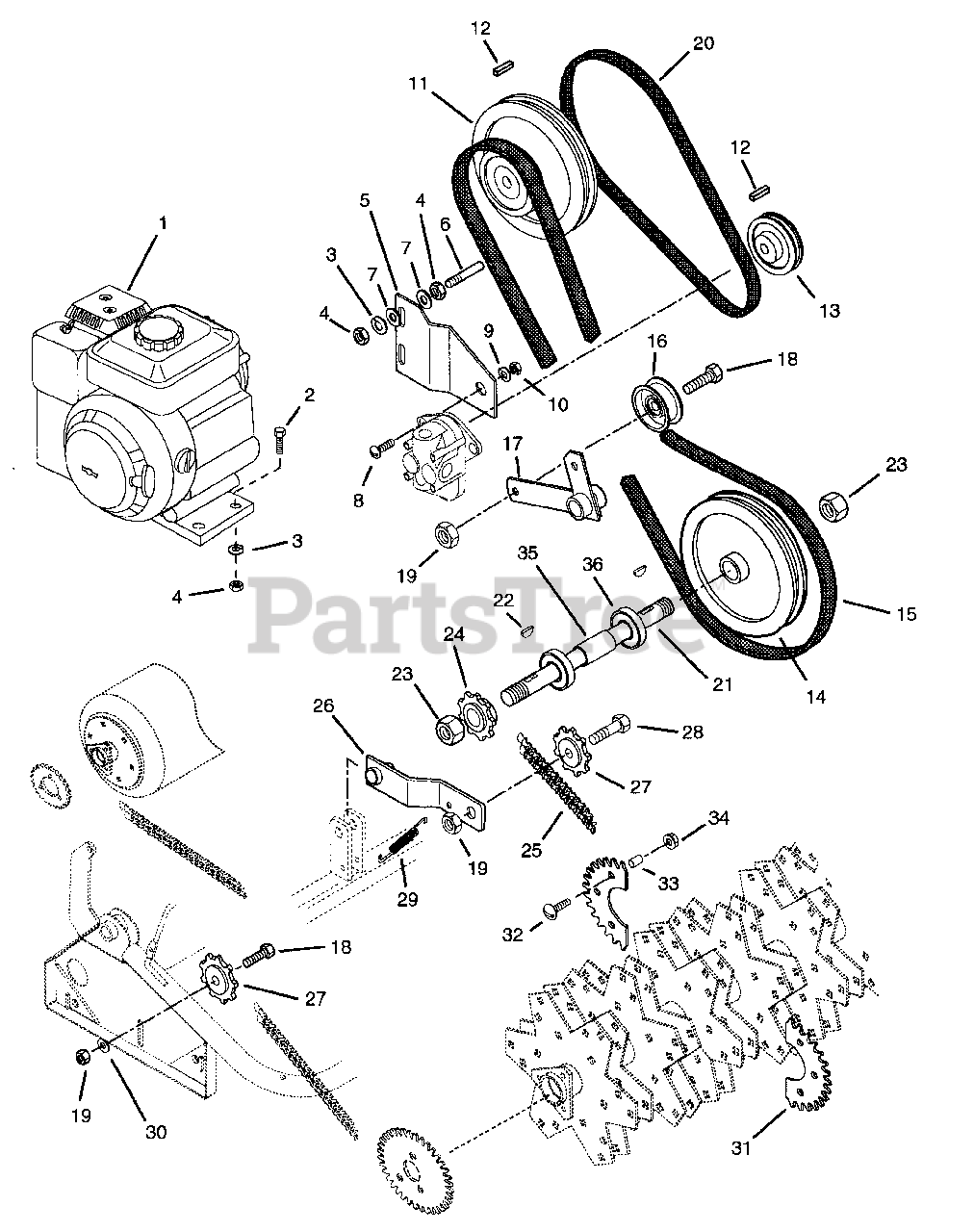

ENGINE AND DRIVE Parts Diagram

  • Title

1

Gravely 08243200

Engine, Honda

$

$

Not available

2

Gravely 05914000

Bolt-Hex .31-18 x 1.50 Grade 5
(Superseded to 05952400)

$1.49

$

Usually ships in 4-12 days

0

3

Gravely 06303600

Washer-Lock .313 x .078
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06501500

Nut-Hex .312-18 Grade 2
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

5

Gravely 09403600

Belt Aligner

$

$

Not available

6

Gravely 09403700

Belt Alignment Bolt

$

$

Not available

7

Gravely 06400200

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06435700)

$1.49

$

In Stock, only 3 left!

0

8

Gravely 06208100

Bolt-Round Head Square Neck .38-16 x 1.2Grade 5
(Superseded to 06224100)

$2.49

$

In Stock, Qty 18

0

9

Gravely 06302100

Washer-Lock .375 x .094
(Superseded to 06308800)

$0.99

$

In Stock, Qty 18

0

10

Gravely 06501800

Nut-Hex .375-16 Grade 2
(Superseded to 06529400)

$0.99

$

Usually ships in 4-12 days

0

11

Gravely 09402700

Pulley Weldment

$

$

Not available

12

Gravely 06610100

Keystock .188 x 1.25

$

$

Not available

13

Gravely 09402500

Hydraulic Pulley Weldment

$

$

Not available

14

Gravely 09402600

Driver Pulley Weldment

$

$

Not available

15

Gravely 07219300

V-Belt B54
(Superseded to 07233700)

$

$

Not available

16

Gravely 09405400

Belt Tightener Pulley

$

$

Not available

17

Gravely 09402000

Idler Weldment

$

$

Not available

18

Gravely 05936000

Bolt Hex .50-13 x 1.75
(Superseded to 05901939)

$3.99

$

In Stock, Qty 7

0

19

Gravely 06531600

Nut-Locking Unitorque .50

$

$

Not available

20

Gravely 07230000

V-Belt B36

$

$

Not available

21

Gravely 09402900

Counter Shaft

$

$

Not available

22

Gravely 06610000

Key-Woodruff .188 x .750

$

$

Not available

23

Gravely 06531900

Nut-Locking 2-Way .75

$

$

Not available

24

Gravely 09405500

Sprocket w/Hub

$

$

Not available

25

Gravely 09405200

Chain #40

$

$

Not available

26

Gravely 09401900

Chain Tightener Weldment

$

$

Not available

27

Gravely 09404900

Idler Sprocket 18 Tooth

$

$

Not available

28

Gravely 05923500

Bolt-Hex .50-13 x 2.00 Grade 5
(Superseded to 05901929)

$3.49

$

Usually ships in 4-12 days

0

29

Gravely 08330900

Spring-Tension

$

$

Not available

30

Gravely 06429500

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 09404000

Split Sprocket

$

$

Not available

32

Gravely 06213100

Bolt-Round Head Square Neck .312 x 2.50

$

$

Not available

33

Gravely 09403300

Spacer-Split Sprocket

$

$

Not available

34

Gravely 06504200

Nut-Locking .312-18
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 09403400

Spacer-Cross Shaft

$

$

Not available

36

Gravely 05425700

Bearing-Schultz

$

$

Not available
