994001 (Pro-Aire 27) - Gravely Pro-Aire Vacuum, Honda (SN: 000101 & Above) ENGINE AND DRIVE Parts Diagram

Pro-Aire Vacuum, Honda

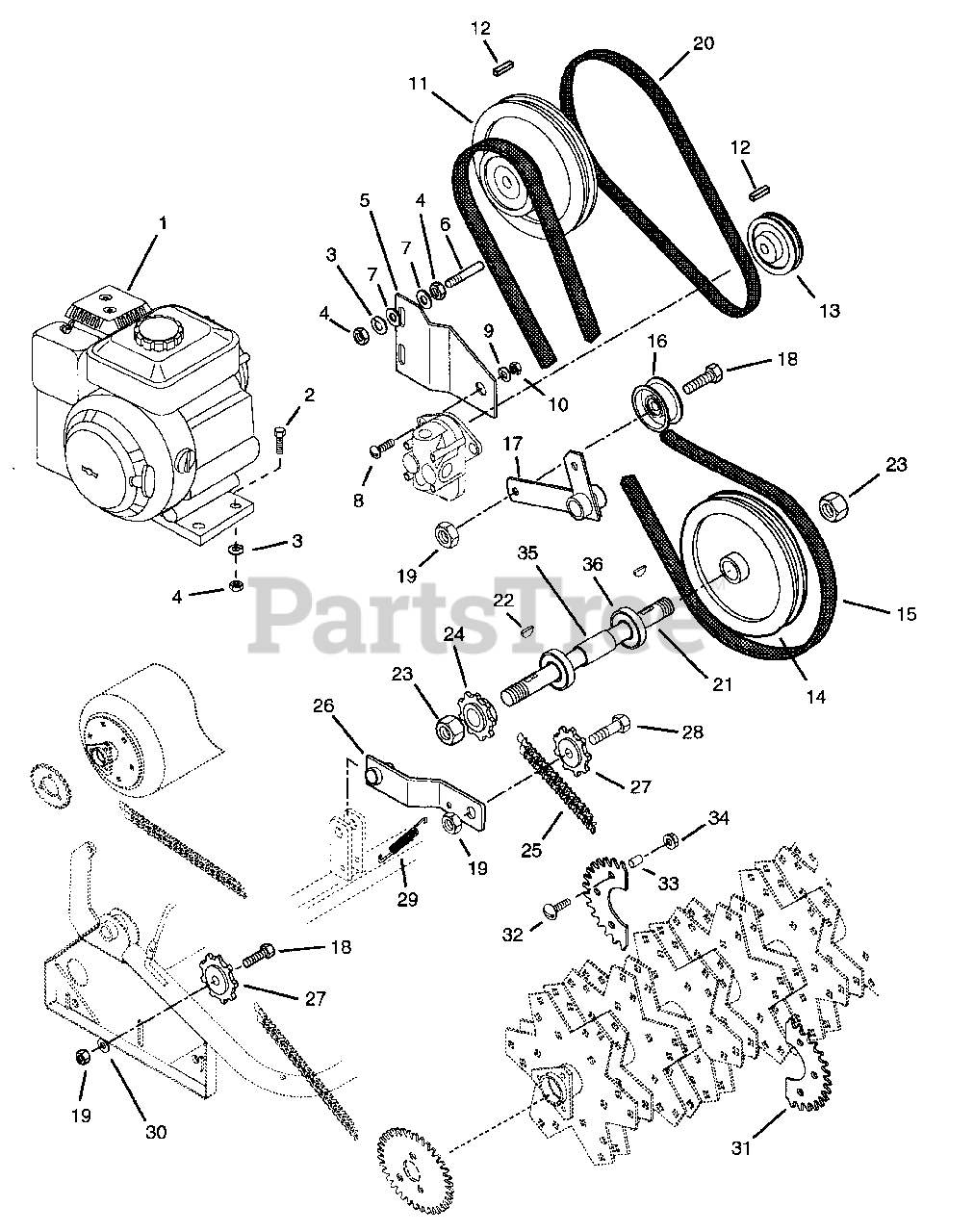

ENGINE AND DRIVE Parts Diagram

  • Title

1

Gravely 08243200

ENGINE, HONDA GX120 K1HX

$

$

Not available

2

Gravely 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

$1.99

$

In Stock, Qty 15

0

3

Gravely 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06501500

NUT-HEX .312-18
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

5

Gravely 09403600

BELT ALINGER

$

$

Not available

6

Gravely 09403700

BELT ALIGNMENT BOLT

$

$

Not available

7

Gravely 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06208100

BLT-RDHDSQNK .38-16X1.25 GR5PL
(Superseded to 06224100)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09402700

PULLY WELDMENT (MOTOR)

$

$

Not available

12

Gravely 06610100

KEY-WDRF .188X1.25

$

$

Not available

13

Gravely 09402500

HYDRUALIC PULLY WELDMENT

$

$

Not available

14

Gravely 09402600

DRIVER PULLY WELDMENT

$

$

Not available

15

Gravely 07219300

OBSOLETE
(Superseded to 07233700)

$

$

Not available

16

Gravely 09405400

BELT TIGHTENER PULLY

$

$

Not available

17

Gravely 09402000

IDLER WELDMENT

$

$

Not available

18

Gravely 05936000

BLT-HEX .50-13X1.75
(Superseded to 05901939)

$4.99

$

In Stock, Qty 20+

0

19

Gravely 06531600

NUT-LK UNITORQUE .50(STOVER)ZP

$

$

Not available

20

Gravely 07230000

V-BELT B36

$

$

Not available

21

Gravely 09402900

COUNTER SHAFT

$

$

Not available

22

Gravely 06610000

KEY-WDRF .188X.750

$

$

Not available

23

Gravely 06531900

NUT-LK 2-WAY .75 UNF ZP

$

$

Not available

24

Gravely 09405500

SPROCKET W/HUB

$

$

Not available

25

Gravely 09405200

CHAIN #40 76PITCHES (TANG DRV)

$

$

Not available

26

Gravely 09401900

CHAIN TIGHTENER WELDMENT

$

$

Not available

27

Gravely 09404900

IDLER SPROCKET 18TOOTH .50BORE

$

$

Not available

28

Gravely 05923500

BLT-HEX .50-13X2.00 PL GR5
(Superseded to 05901929)

$3.49

$

In Stock, only 2 left!

0

29

Gravely 08330900

SG-TENS (PROAIRE)

$

$

Not available

30

Gravely 06429500

WSHR-FL-STL .531X1.062X.095
(Superseded to 06441900)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 09404000

SPLIT SPROCKET

$

$

Not available

32

Gravely 06213100

BLT-RDHDSQNK .312X2.50 G5 ZP

$

$

Not available

33

Gravely 09403300

SPACER .350X.500X.750

$

$

Not available

34

Gravely 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.99

$

In Stock, Qty 20+

0

35

Gravely 09403400

CROSS SHAFT SPACER

$

$

Not available

36

Gravely 05425700

BRG SHATZ BEARING (PROAIRE)

$

$

Not available
