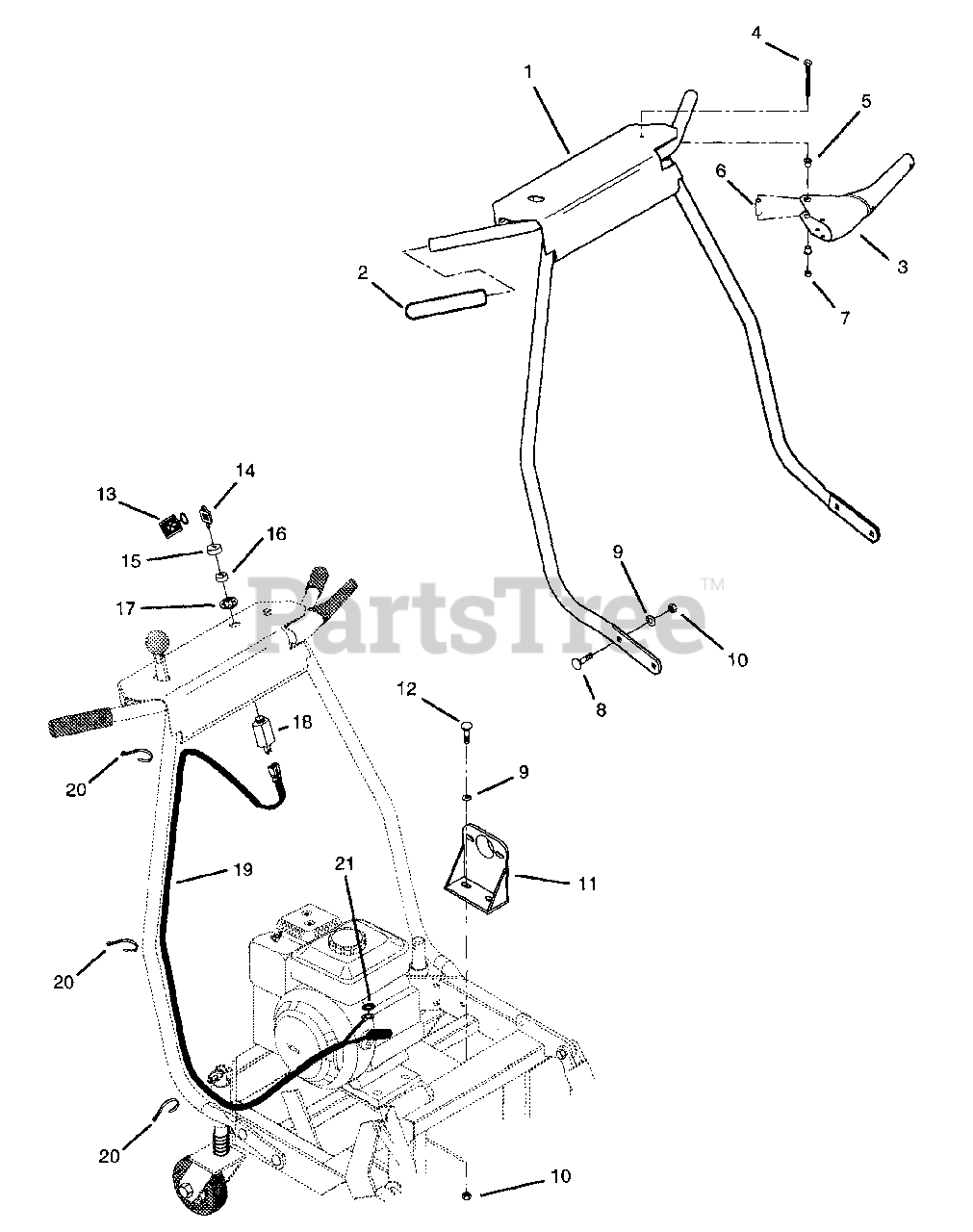

994001 (Pro-Aire 27) - Gravely Pro-Aire Vacuum, Honda (SN: 000101 & Above) HANDLEBAR, KEY SWITCH, PUMP MOUNT Parts Diagram

Pro-Aire Vacuum, Honda

HANDLEBAR, KEY SWITCH, PUMP MOUNT Parts Diagram

  • Title

1

Gravely 09400500

HANDLEBAR WELDMENT

$

$

Not available

2

Gravely 07518700

HANDLE GRIP
(Superseded to 07500239)

$3.99

$

In Stock, only 2 left!

0

3

Gravely 09400700

CLUTCH LEVER-COATED

$

$

Not available

4

Gravely 05917000

BLT-HEX .31-18X2.00 PL GR5
(Superseded to 05957200)

$1.99

$

In Stock, Qty 18

0

5

Gravely 05517500

BSHG-FLG .320X.620X.312 NY

$18.99

$

Usually ships in 4-12 days

0

6

Gravely 05518100

BSHG-SLV .377X.503X.88

$6.49

$

Usually ships in 4-12 days

0

7

Gravely 06531400

NUT-LK UNITORQUE .31(STOVER)ZP

$

$

Not available

8

Gravely 06213200

BLT-RDHDSQNK .38X2.50 G5
(Superseded to 06200234)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09401600

PUMP MOUNT WELDMENT

$

$

Not available

12

Gravely 06208100

BLT-RDHDSQNK .38-16X1.25 GR5PL
(Superseded to 06224100)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 03490000

KEY CHAIN

$

$

Not available

14

Gravely 03489900

IGNITION SWITCH KEY
(Superseded to 02460700)

$10.99

$

In Stock, Qty 20+

0

15

Gravely 07517700

CAP - IGNITION SWITCH

$3.99

$

In Stock, Qty 11

0

16

Gravely 06517300

NUT-PANEL .625-32 GRECO

$9.49

$

Usually ships in 4-12 days

0

17

Gravely 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 02456500

KEY SWITCH ASSEMBLY
(Superseded to 52406900)

$39.99

$

In Stock, only 2 left!

0

19

Gravely 09406100

WIRE HARNESS

$

$

Not available

20

Gravely 07519900

TIE WRAP, BLACK LG 7.31

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 06302400

WSHR-LK-EXT 12X.025 PL

$

$

Not available
