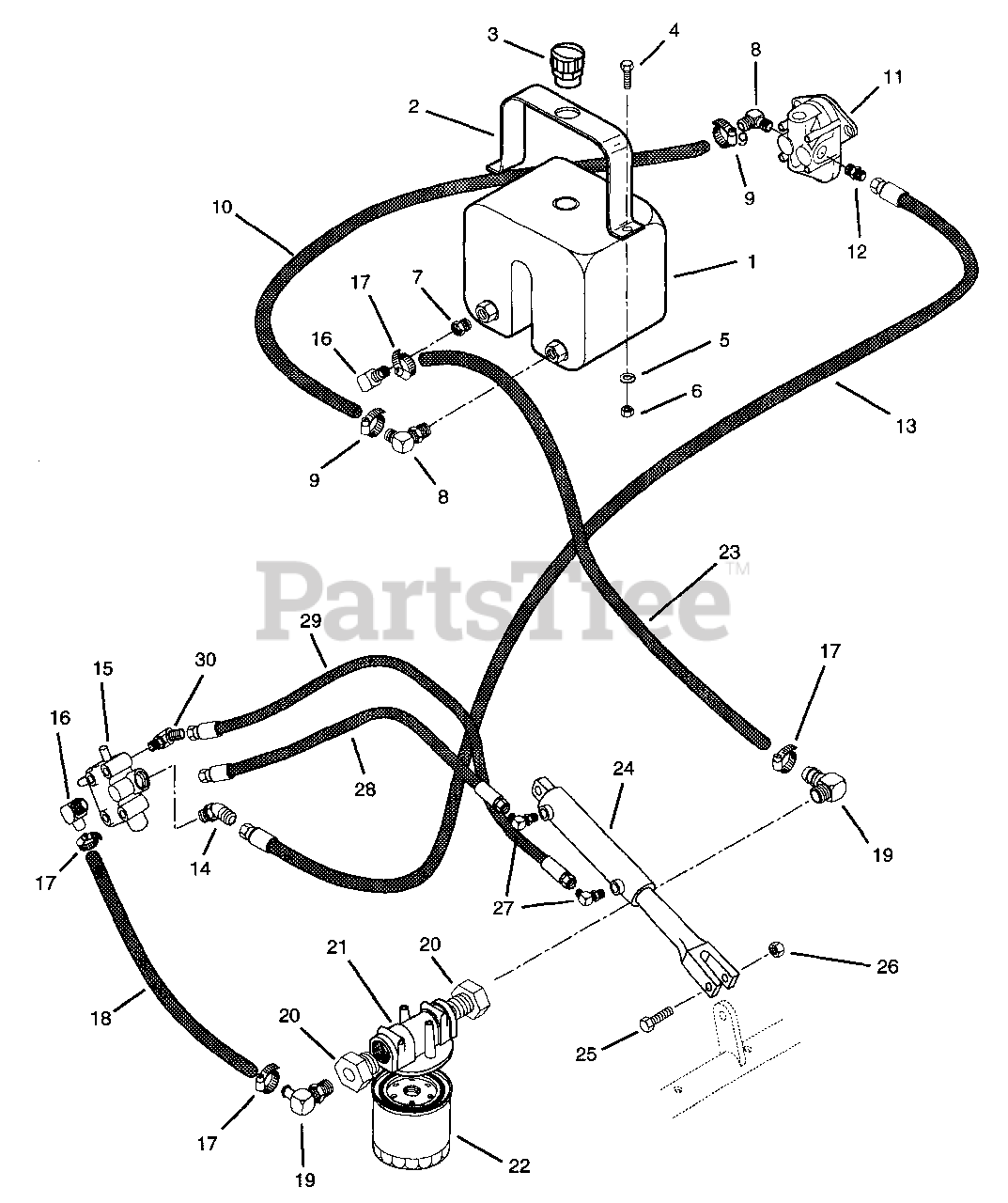

994001 (Pro-Aire 27) - Gravely Pro-Aire Vacuum, Honda (SN: 000101 & Above) HYDRAULIC SYSTEM Parts Diagram

Pro-Aire Vacuum, Honda

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Gravely 09032900

Tank, Hydraulic

$

$

Not available

2

Gravely 08997100

Strap, Tank

$5.99

$

Usually ships in 4-12 days

0

3

Gravely 08996400

Cap, Filter

$35.99

$

In Stock, only 1 left!

0

4

Gravely 05913500

Bolt-Hex .31-18 .75 Plated Grade 5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 10

0

5

Gravely 06303600

Washer-Lock .313 x .078 Plated Medium
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06501500

Nut-Hex .312-18 Zinc Grade 2
(Superseded to 06529200)

$0.99

$

In Stock, Qty 16

0

7

Gravely 07031400

Fitting 10

$43.99

$

In Stock, only 2 left!

0

8

Gravely 07031300

Fitting 10HS

$

$

Not available

9

Gravely 06932500

Clamp-Hose .219 x .625

$

$

Not available

10

Gravely 09405800

Hose 300 PSI .625 x 15

$

$

Not available

11

Gravely 09405300

Praker Pump

$

$

Not available

12

Gravely 07031500

Straight Thread Connector

$

$

Not available

13

Gravely 09404300

Hydraulic Hose Assembly .38 x 25.5

$

$

Not available

14

Gravely 07031800

Adapter

$

$

Not available

15

Gravely 09405600

Parker Valve

$

$

Not available

16

Gravely 07031900

Fitting 6HS-6MB90

$

$

Not available

17

Gravely 06932400

Clamp-Hose .562" x 1.06

$

$

Not available

18

Gravely 09405900

Hose 300PSI .375 x 18

$

$

Not available

19

Gravely 07032200

90 Deg Hose Insert

$

$

Not available

20

Gravely 07032100

Fitting 12MP-6FP

$

$

Not available

21

Gravely 09406200

Filter Mount and Filter(includes 09405700)
(Superseded to 09204900)

Note: (includes 09405700)

$

$

Not available

22

Gravely 09405700

Hydraulic Filter
(Superseded to 04108100)

$50.99

$

Usually ships in 4-12 days

0

23

Gravely 09406000

Hose 300PSI .375 x 8

$

$

Not available

24

Gravely 09403900

Hydraulic Cylinder

$

$

Not available

25

Gravely 05936000

Bolt-Hex .50-13 x 1.75
(Superseded to 05901939)

$3.99

$

In Stock, Qty 7

0

26

Gravely 06531600

Nut-Locking Unitorque .50

$

$

Not available

27

Gravely 07031600

Adapter 4MJ-4MP90

$

$

Not available

28

Gravely 09404400

Hydraulic Hose Assembly .25 x 25

$

$

Not available

29

Gravely 09404500

Hydraulic Hose Assembly .25 x 33

$

$

Not available

30

Gravely 07031700

Fitting 6MJ-6MB45

$

$

Not available
