994001 (Pro-Aire 27) - Gravely Pro-Aire Vacuum, Honda (SN: 000101 & Above) ROLLER DRUM, DRIVE, AND TANG Parts Diagram

Pro-Aire Vacuum, Honda

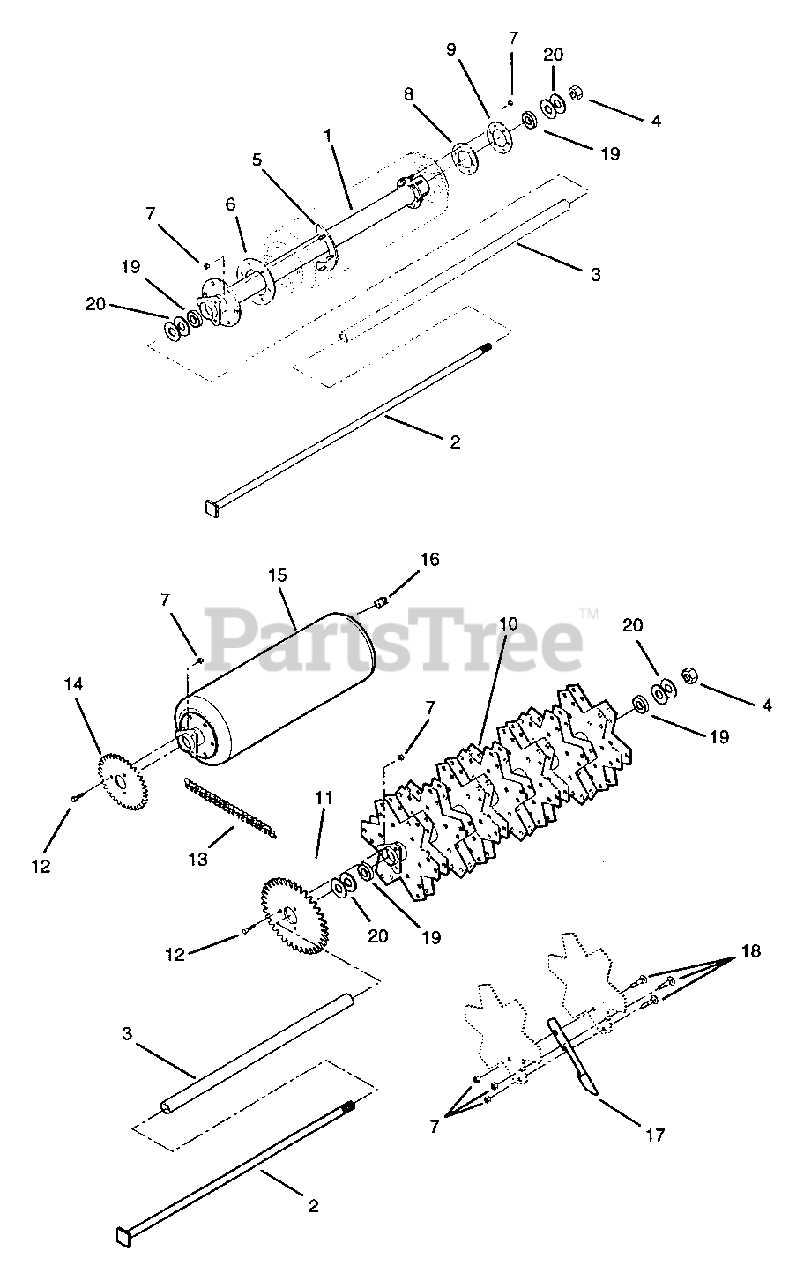

ROLLER DRUM, DRIVE, AND TANG Parts Diagram

  • Title

1

Gravely 09402200

DRUM SHAFT WELDMENT

$

$

Not available

2

Gravely 09402400

SHAFT ROD WELDMENT

$

$

Not available

3

Gravely 09403500

SHAFT SPACER

$

$

Not available

4

Gravely 06518700

NUT-LK-TOP .62-11 PL (ND)

$4.99

$

In Stock, Qty 10

0

5

Gravely 09402300

INNER BOLT HOLDER WELDMENT

$

$

Not available

6

Gravely 05614700

LARGE GASKET

$

$

Not available

7

Gravely 06531400

NUT-LK UNITORQUE .31(STOVER)ZP

$

$

Not available

8

Gravely 05614800

SMALL GASKET

$

$

Not available

9

Gravely 09402201

SMALL FLANGE

$

$

Not available

10

Gravely 09401300

TANG WELDMENT

$

$

Not available

11

Gravely 09404100

TANG SPROCKET (SPIDER)

$

$

Not available

12

Gravely 180071

Bolt-Hex .31-18 x .75 Plated Grade 5

$

$

Not available

13

Gravely 09405100

CHAIN #40 86PITCHES (DRUM DRV)

$

$

Not available

14

Gravely 09404200

DRUM SPROCKET

$

$

Not available

15

Gravely 09403000

ROLLER DRUM

$

$

Not available

16

Gravely 07527000

TEST PLUG-QUICK SNAP

$

$

Not available

17

Gravely 09405000

CLOSE SPOON TINE .75" 14GA

$

$

Not available

18

Gravely 06204400

BLT-RDHDSQNK .31-18X1.50 GR5PL
(Superseded to 06212100)

$1.99

$

In Stock, Qty 11

0

19

Gravely 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$16.99

$

In Stock, Qty 20+

0

20

Gravely 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0
