994001 (Pro-Aire 27) - Gravely Pro-Aire Vacuum, Honda (SN: 000101 & Above) ROLLER DRUM, DRIVE, AND TANG Parts Diagram

Pro-Aire Vacuum, Honda

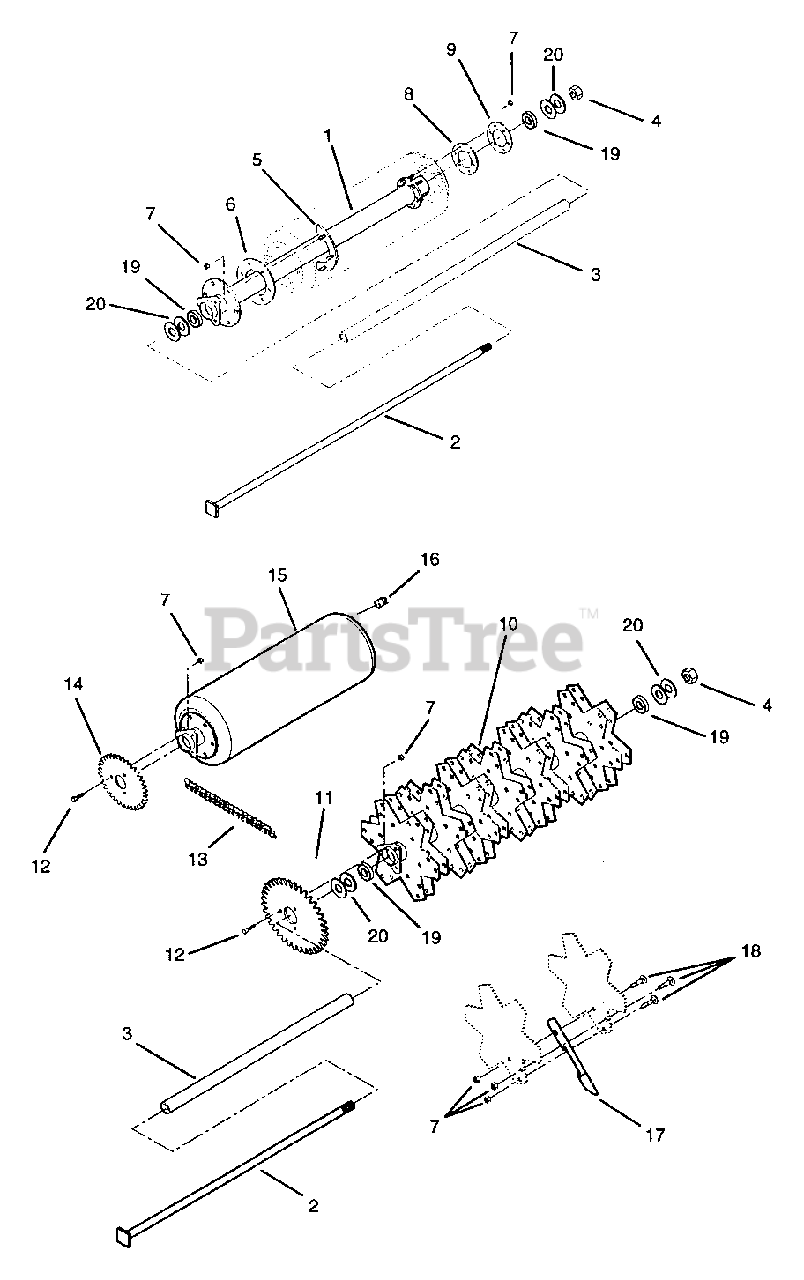

ROLLER DRUM, DRIVE, AND TANG Parts Diagram

  • Title

1

Gravely 09402200

Drum Shaft Weldment

$

$

Not available

2

Gravely 09402400

Shaft Rod Weldment

$

$

Not available

3

Gravely 09403500

Shaft Spacer

$

$

Not available

4

Gravely 06518700

Nut-Locking-Top .62-11

$4.99

$

In Stock, only 4 left!

0

5

Gravely 09402300

Inner Bolt Holder Weldment

$

$

Not available

6

Gravely 05614700

Large Gasket

$

$

Not available

7

Gravely 06531400

Nut-Locking Unitorque .31

$

$

Not available

8

Gravely 05614800

Small Gasket

$

$

Not available

9

Gravely 09402201

Small Flange

$

$

Not available

10

Gravely 09401300

Tang Weldment

$

$

Not available

11

Gravely 09404100

Tang Sprocket

$

$

Not available

12

Gravely 180071

Bolt-Hex .31-18 x .75 Plated Grade 5

$

$

Not available

13

Gravely 09405100

Chain #40

$

$

Not available

14

Gravely 09404200

Drum Sprocket

$

$

Not available

15

Gravely 09403000

Roller Drum

$

$

Not available

16

Gravely 07527000

Test Plug-Quick Snap

$

$

Not available

17

Gravely 09405000

Close Spoon Tine .75"

$

$

Not available

18

Gravely 06204400

Bolt-Round Head Square Neck .31-18 x 1.50 Plated Grade 5
(Superseded to 06212100)

$1.99

$

In Stock, Qty 12

0

19

Gravely 05403900

Bearing-Ball .625 x 1.375 x .44
(Superseded to 05435100)

$16.99

$

In Stock, Qty 20+

0

20

Gravely 06403900

Washer-Flat-Steel .630 x 1.005 x .062
(Superseded to 06436100)

$0.99

$

In Stock, Qty 5

0
