994001 (Pro-Aire 27) - Gravely Pro-Aire Vacuum, Honda (SN: 000101 & Above) SHROUD, FRAME, AND WHEEL MOUNT Parts Diagram

Pro-Aire Vacuum, Honda

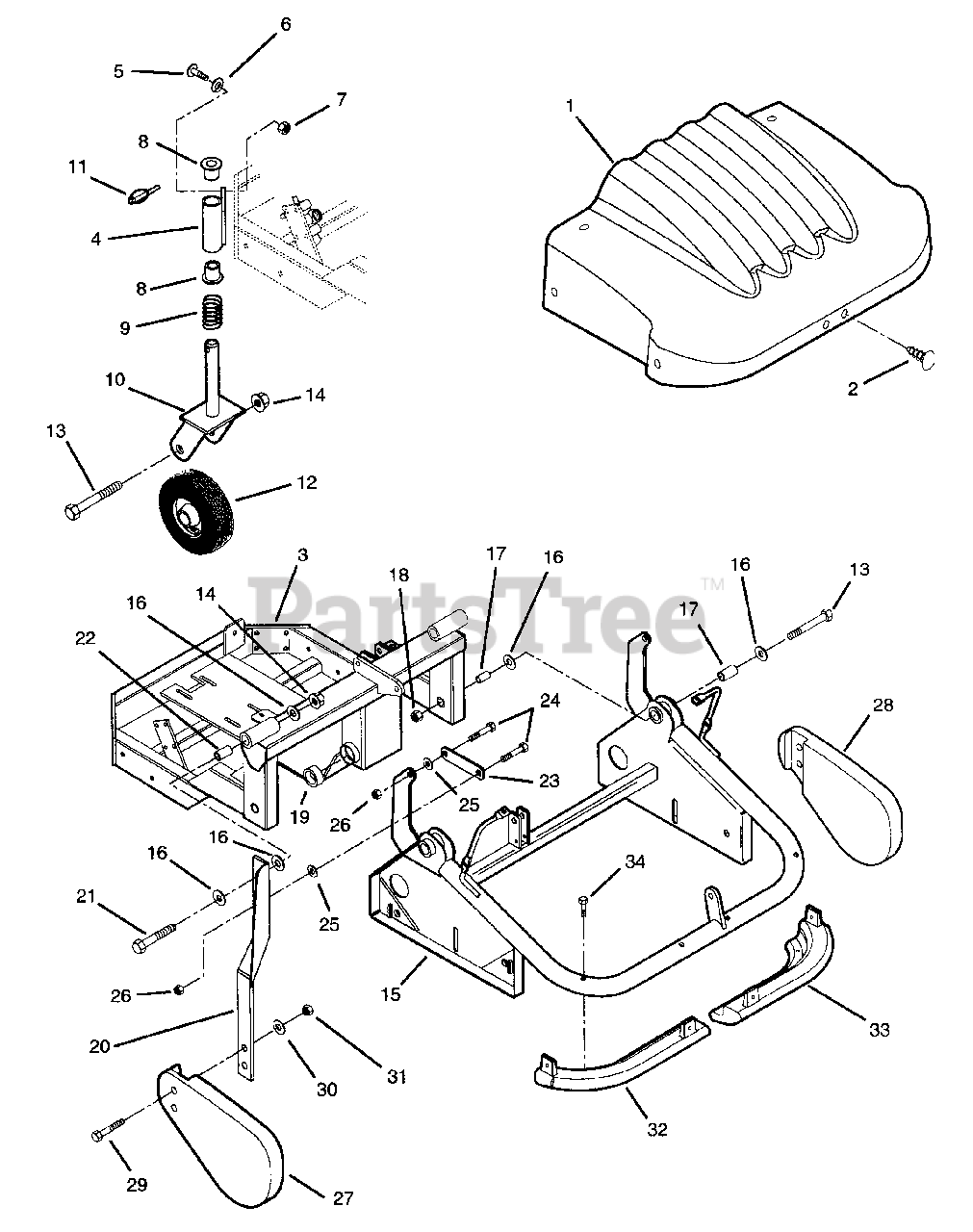

SHROUD, FRAME, AND WHEEL MOUNT Parts Diagram

  • Title

1

Gravely 09400800

SHROUD

$87.99

$

Usually ships in 4-12 days

0

2

Gravely 07526500

PUSH FASTENER

$

$

Not available

3

Gravely 09401100

REAR FRAME WELDMENT

$

$

Not available

4

Gravely 09401700

CASTOR MOUNT WELDMENT

$

$

Not available

5

Gravely 06202800

BLT-RDHDSQNK .38-16X1.0 GR5PL
(Superseded to 06223600)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05425500

BRG-FLG 1.5OX.125 (PROAIRE)

$

$

Not available

9

Gravely 08331000

SG-COMP (PROAIRE)

$

$

Not available

10

Gravely 09401800

WHEEL FORK WELDMENT

$

$

Not available

11

Gravely 07015800

PIN-LOK .31X2.00

$7.49

$

In Stock, only 2 left!

0

12

Gravely 07141100

T/WHL ASSY 6.25X3.00 .75 RIB

$

$

Not available

13

Gravely 05939800

BLT-HEX .75-10X4.50
(Superseded to 05968800)

$9.99

$

In Stock, only 1 left!

0

14

Gravely 06531800

NUT-LK UNITORQUE .75(STOVER)ZP

$

$

Not available

15

Gravely 09401200

FRONT FRAME WELDMENT

$

$

Not available

16

Gravely 06426000

WSHR-FL-STL .812X1.469X.134 ZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 05522900

BSHG-SLV 1.00X.750X2.00

$

$

Not available

18

Gravely 06531700

NUT-LK 2-WAY .75 UNC ZP

$

$

Not available

19

Gravely 05425700

BRG SHATZ BEARING (PROAIRE)

$

$

Not available

20

Gravely 09401500

COUNTER PENDULUM R.H.

$

$

Not available

Gravely 09401400

COUNTER PENDULUM L.H.

$

$

Not available

21

Gravely 05940300

BLT-HEX .75-10X5.50
(Superseded to 05964300)

$8.49

$

Usually ships in 4-12 days

0

22

Gravely 05523100

BSHG-SLV 1.00X.750X1.50

$

$

Not available

23

Gravely 09404800

PENDULUM LINK

$

$

Not available

24

Gravely 05914600

BLT-HEX .50-13X1.25 PL GR5
(Superseded to 05958900)

$3.49

$

In Stock, Qty 6

0

25

Gravely 06429500

WSHR-FL-STL .531X1.062X.095
(Superseded to 06441900)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06531600

NUT-LK UNITORQUE .50(STOVER)ZP

$

$

Not available

27

Gravely 09400100

SIDE WEIGHT-R.H.

$

$

Not available

28

Gravely 09400200

SIDE WEIGHT-L.H.

$

$

Not available

29

Gravely 05936000

BLT-HEX .50-13X1.75
(Superseded to 05901939)

$4.99

$

In Stock, Qty 20+

0

30

Gravely 06305100

WSHR-LK .50 REG.
(Superseded to 06307300)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06502100

NUT .50-13 PL
(Superseded to 06537300)

$4.99

$

Usually ships in 4-12 days

0

32

Gravely 09400400

COUNTER WEIGHT-R.H.

$

$

Not available

33

Gravely 09400300

COUNTER WEIGHT-L.H.

$

$

Not available

34

Gravely 05916000

BLT-HEX .38-16X2.75 PL GR5
(Superseded to 05961400)

$4.99

$

In Stock, Qty 20+

0
