994001 (Pro-Aire 27) - Gravely Pro-Aire Vacuum, Honda (SN: 000101 & Above) SHROUD, FRAME, AND WHEEL MOUNT Parts Diagram

Pro-Aire Vacuum, Honda

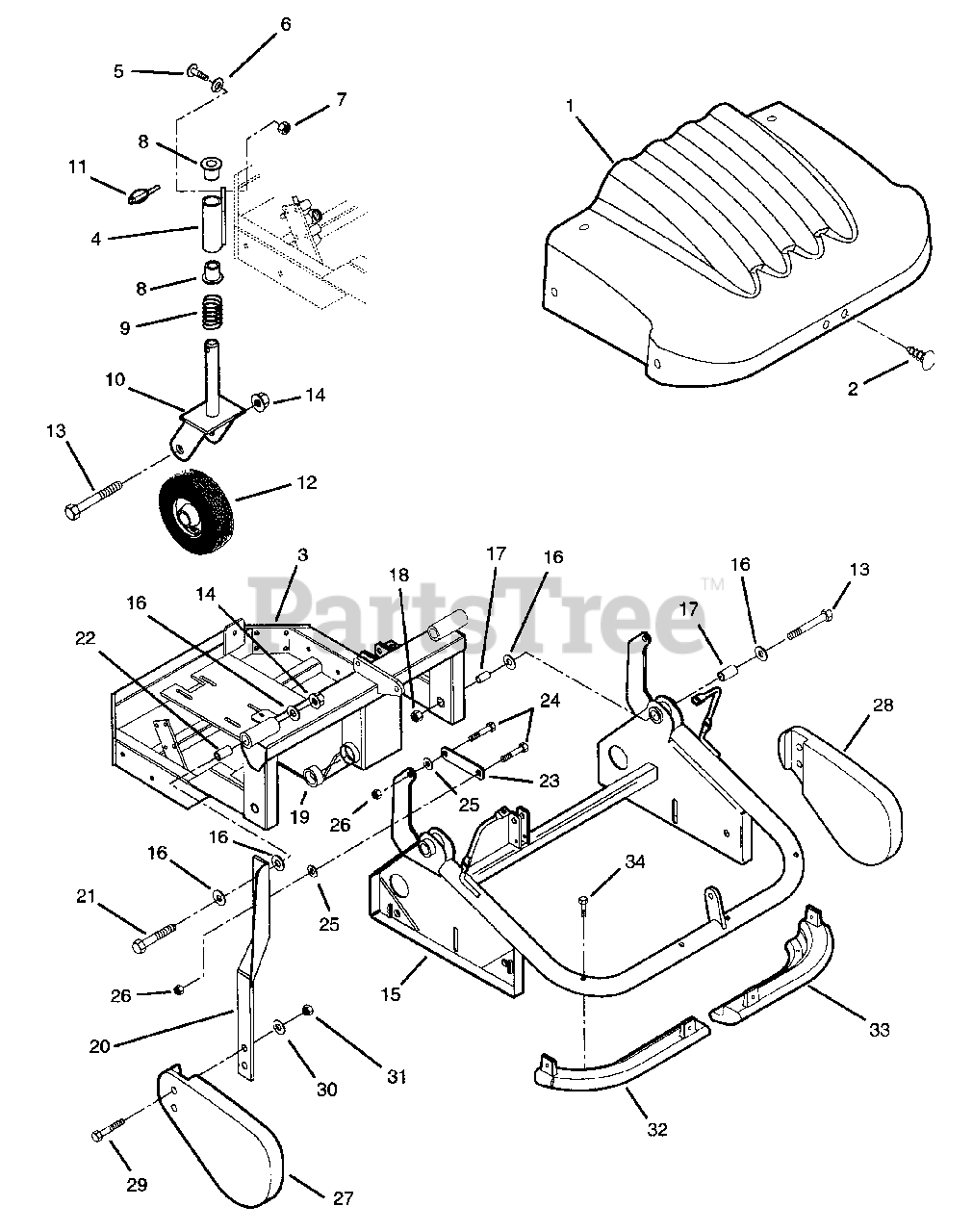

SHROUD, FRAME, AND WHEEL MOUNT Parts Diagram

  • Title

1

Gravely 09400800

Shroud

$87.99

$

Usually ships in 4-12 days

0

2

Gravely 07526500

Push Fastener

$

$

Not available

3

Gravely 09401100

Rear Frame Weldment

$

$

Not available

4

Gravely 09401700

Castor Mount Weldment

$

$

Not available

5

Gravely 06202800

Bolt-Round Head Square Neck .38-16 x 1.0Grade 5
(Superseded to 06223600)

$2.49

$

In Stock, Qty 19

0

6

Gravely 06302100

Washer-Lock .375 x .094
(Superseded to 06308800)

$0.99

$

In Stock, Qty 16

0

7

Gravely 06501800

Nut-Hex .375-16 Grade 2
(Superseded to 06529400)

$0.99

$

Usually ships in 4-12 days

0

8

Gravely 05425500

Bearing-Flange 1.50 OD x .125

$

$

Not available

9

Gravely 08331000

Spring-Compression

$

$

Not available

10

Gravely 09401800

Wheel Fork Weldment

$

$

Not available

11

Gravely 07015800

Pin-Lock .31-2.00

$6.99

$

In Stock, only 2 left!

0

12

Gravely 07141100

Tire/Wheel Assembly 6.25 x 3.00

$

$

Not available

13

Gravely 05939800

Bolt-Hex .75-10 x 4.50
(Superseded to 05968800)

$9.49

$

In Stock, only 1 left!

0

14

Gravely 06531800

Nut-Locking Unitorque .75

$

$

Not available

15

Gravely 09401200

Front Frame Weldment

$

$

Not available

16

Gravely 06426000

Washer-Flat .812 x 1.469 x .134
(Superseded to 06401140)

$1.49

$

In Stock, Qty 13

0

17

Gravely 05522900

Bushing-Sleeve 1.0 OD x .75 ID x 2.0 LG

$

$

Not available

18

Gravely 06531700

Nut-Locking 2-Way .75

$

$

Not available

19

Gravely 05425700

Bearing-Schultz

$

$

Not available

20

Gravely 09401500

Counter Pendulum Right Hand

$

$

Not available

Gravely 09401400

Counter Pendulum Left Hand

$

$

Not available

21

Gravely 05940300

Bolt-Hex .75-10 x 5.50
(Superseded to 05964300)

$7.99

$

Usually ships in 4-12 days

0

22

Gravely 05523100

Bushing-Sleeve 1.0 OD x .75 ID x 1.50 LG

$

$

Not available

23

Gravely 09404800

Pendulum Link

$

$

Not available

24

Gravely 05914600

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05958900)

$3.49

$

Usually ships in 4-12 days

0

25

Gravely 06429500

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 06531600

Nut-Locking Unitorque .50

$

$

Not available

27

Gravely 09400100

Side Weight - Right Hand

$

$

Not available

28

Gravely 09400200

Side Weight - Left Hand

$

$

Not available

29

Gravely 05936000

Bolt-Hex .50-13 x 1.75
(Superseded to 05901939)

$3.99

$

In Stock, Qty 7

0

30

Gravely 06305100

Washer-Lock .50 Reg
(Superseded to 06307300)

$1.49

$

In Stock, Qty 18

0

31

Gravely 06502100

Nut .50-13
(Superseded to 06537300)

$3.99

$

In Stock, only 2 left!

0

32

Gravely 09400400

Counter Weight - Right Hand

$

$

Not available

33

Gravely 09400300

Counter Weight - Left Hand

$

$

Not available

34

Gravely 05916000

Bolt-Hex .38-16 x 2.75 Plated Grade 5
(Superseded to 05961400)

$3.99

$

In Stock, Qty 19

0
