994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000101 - 000500) Drive Controls And Linkage Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

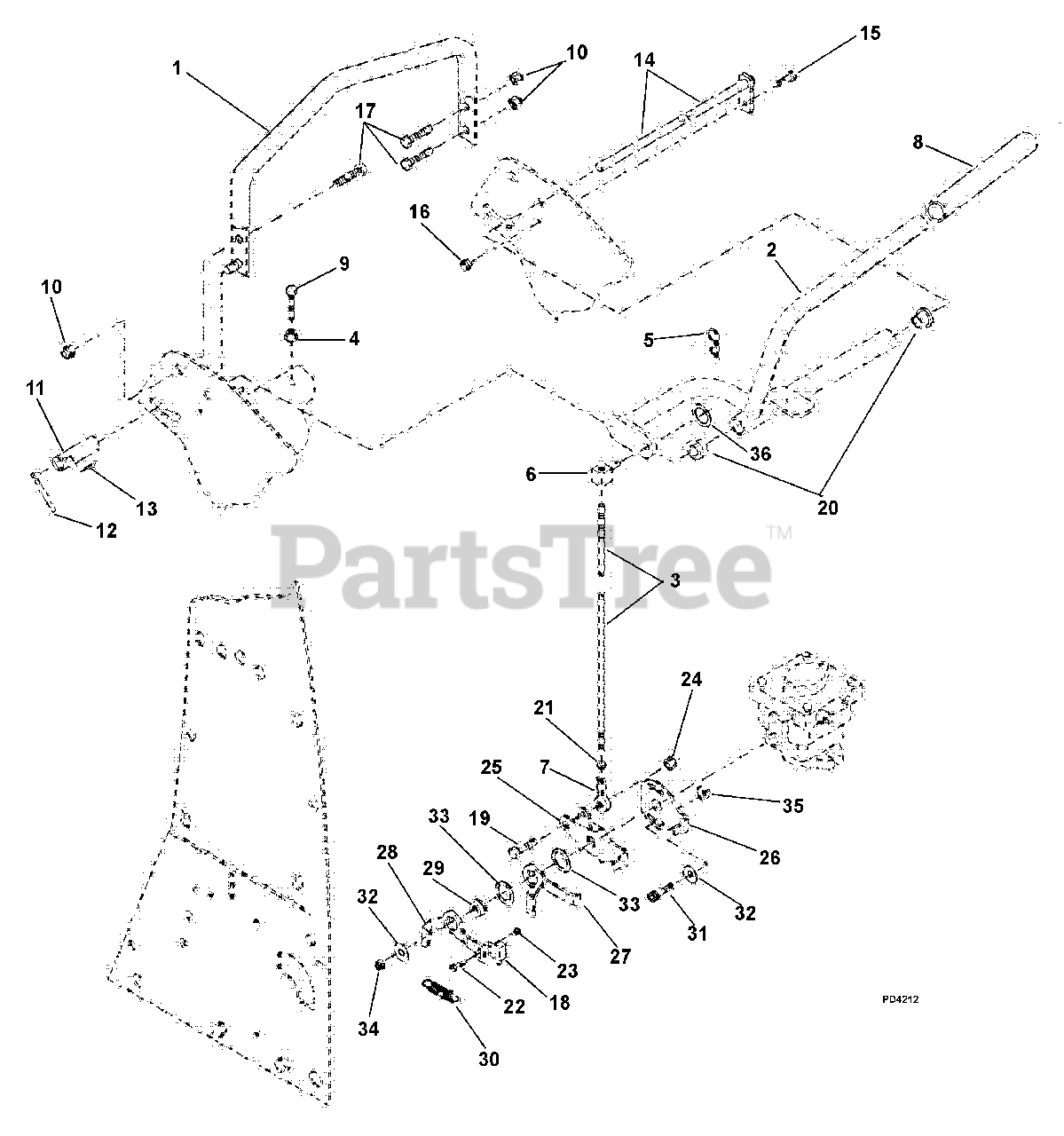

Drive Controls And Linkage Parts Diagram

  • Title

1

Gravely 00875700

Speed Limiter
(Superseded to D18069)

$200.99

$

Usually ships in 4-12 days

0

2

Gravely 00890100

Weldment, LH SS Control Lever
(Superseded to 00200080)

$197.99

$

Usually ships in 4-12 days

0

Gravely 00890200

Weldment, RH SS Control Lever
(Superseded to 00200081)

$

$

Not available

3

Gravely 00874400

Control Rod
(Superseded to D13029)

$44.99

$

Usually ships in 4-12 days

0

4

Gravely 06500026

Flange Nut, M16 x 1.0
(Superseded to 06500729)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 06700101

Spring Pin

$

$

Not available

6

Gravely 00874300

Swivel
(Superseded to D13028)

$85.99

$

Usually ships in 4-12 days

0

7

Gravely 08960700

Rod End, 5/16 RH -Female
(Superseded to 03787100)

$18.99

$

In Stock, only 4 left!

0

8

Gravely 00943900

Grip, Control
(Superseded to D18093)

$8.49

$

In Stock, only 1 left!

0

9

Gravely 05900111

Cap Screw, Reverse Stop M6 x 1

$

$

Not available

10

Gravely 06542400

Nut, Lock, Nylon M10-1.5

$1.99

$

Usually ships in 4-12 days

0

11

Gravely 00874500

Base, Speed Control Lock

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 00874600

Handle

$

$

Not available

13

Gravely 05800005

Pin, Spring 5/32 x 1

$2.49

$

Usually ships in 4-12 days

0

14

Gravely 00882700

Shaft, Pivot

$

$

Not available

15

Gravely 05900115

Cap Screw, M6 x 1.0 x 20
(Superseded to 19M7862)

$

$

Not available

16

Gravely 06500024

Lock Nut, Flat, ISO 7043, M6 x 1.00-10
(Superseded to 06500729)

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 05943000

Bolt, Hex M10 x 1.5 x 25

$2.99

$

Usually ships in 4-12 days

0

18

Gravely 00953900

Switch, Stop (Double Pole) N.O.
(Superseded to 08828100)

Note: (Double Pole) N.O.

$21.99

$

In Stock, Qty 6

0

19

Gravely 05946900

Bolt, Hex .31-18 x 1.00
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

20

Gravely 05500125

Bushing
(Superseded to 00200116)

$6.49

$

Usually ships in 4-12 days

0

21

Gravely 06536700

Nut, Jam .31-24
(Superseded to 06500923)

$1.49

$

In Stock, Qty 10

0

22

Gravely 05975800

Bolt, Hex M5-.8 x 16

$

$

Not available

23

Gravely 06522100

Nut, Hex M5 x .8

$

$

Not available

24

Gravely 06529800

Nut, Lockinig, Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 00886700

Arm, Control Return

$

$

Not available

26

Gravely 00886800

Arm, Return

$

$

Not available

27

Gravely 00886200

Arm, RH Inner Return
(Superseded to TCU18929)

$

$

Not available

Gravely 00886400

Arm, LH Inner Return

$

$

Not available

28

Gravely 00886500

Arm, LH Outer Return

$

$

Not available

Gravely 00886300

Arm, RH Outer Return
(Superseded to TCA14966)

$858.99

$

Usually ships in 4-12 days

0

29

Gravely 00886900

Spacer
(Superseded to TCU19203)

$

$

Not available

30

Gravely 08300101

Spring
(Superseded to 21544001)

$15.99

$

Usually ships in 4-12 days

0

31

Gravely 05900119

Screw, 5/16 x 1 Patch Lock

$

$

Not available

32

Gravely 06400023

Washer
(Superseded to 08611200)

$4.49

$

Usually ships in 4-12 days

0

33

Gravely 06400024

Washer, Nylon

$

$

Not available

34

Gravely 06537000

Nut, Center Lock .31-24

$1.99

$

In Stock, Qty 5

0

35

Gravely 00887000

Spacer

$

$

Not available

36

Gravely 06436200

Washer, Flat, Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0
