994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000101 - 000500) Drive Controls And Linkage Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

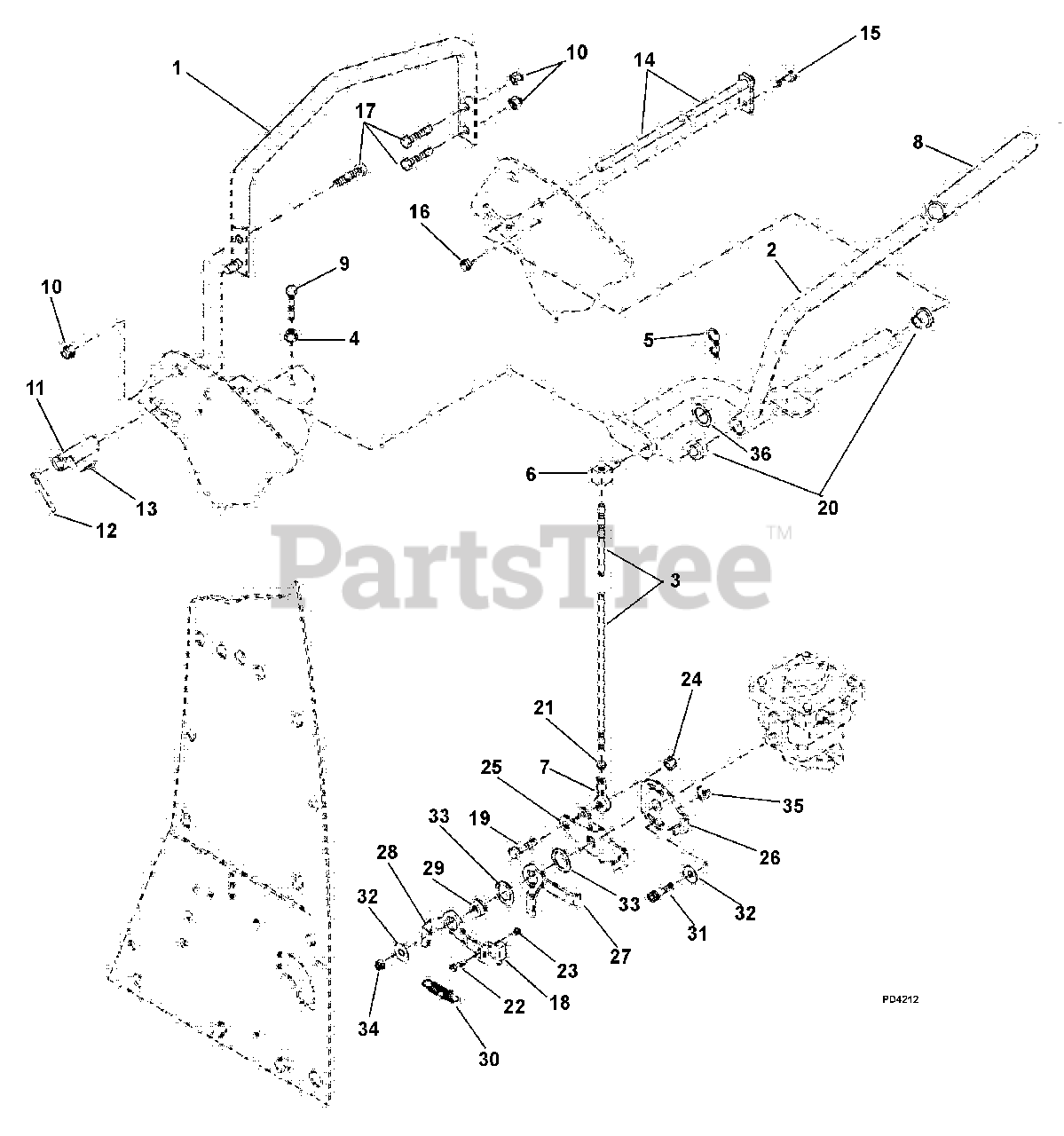

Drive Controls And Linkage Parts Diagram

  • Title

1

Gravely 00875700

SPEED LIMITER
(Superseded to D18069)

$208.99

$

Usually ships in 4-12 days

0

2

Gravely 00890100

WLDT, LH SS CONTROL LEVER
(Superseded to 00200080)

$206.99

$

Usually ships in 4-12 days

0

Gravely 00890200

WLDT, RH SS CONTROL LEVER
(Superseded to 00200081)

$

$

Not available

3

Gravely 00874400

CONTROL ROD
(Superseded to D13029)

$46.99

$

Usually ships in 4-12 days

0

4

Gravely 06500026

FLANGE NUT, M6 X 1.0
(Superseded to 06500729)

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 06700101

SPRING PIN

$

$

Not available

6

Gravely 00874300

SWIVEL
(Superseded to D13028)

$89.99

$

Usually ships in 4-12 days

0

7

Gravely 08960700

ROD END, 5/16 RH - FEMALE
(Superseded to 03787100)

$19.99

$

In Stock, only 3 left!

0

8

Gravely 00943900

GRIP, CONTROL
(Superseded to D18093)

$9.49

$

In Stock, only 1 left!

0

9

Gravely 05900111

CAP SCREW, REVERSE STOP M6 X 1

$

$

Not available

10

Gravely 06542400

NUT-LK-NYL M10-1.5 YWZC

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 00874500

BASE, SPEED CONTROL LOCK

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 00874600

HANDLE

$

$

Not available

13

Gravely 05800005

PIN, SPRING 5/32 X 1

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 00882700

SHAFT, PIVOT

$

$

Not available

15

Gravely 05900115

CAP SCREW, M6 X 1.0 X 20
(Superseded to 19M7862)

$

$

Not available

16

Gravely 06500024

LOCKNUT,FL,ISO7043,M6X1.00-10-
(Superseded to 06500729)

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 05943000

BLT-HEX M10 X 1.5X25 YWZC

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 00953900

SWITCH, STOP (DOUBLE POLE)(N.O
(Superseded to 08828100)

Note: (Double Pole) N.O.

$21.99

$

In Stock, only 2 left!

0

19

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 05500125

BUSHING
(Superseded to 00200116)

$6.99

$

In Stock, only 2 left!

0

21

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.99

$

In Stock, Qty 5

0

22

Gravely 05975800

BLT-HEX M5-.8X16 YWZC

$

$

Not available

23

Gravely 06522100

NUT-HEX M5X.8 PL

$

$

Not available

24

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.49

$

In Stock, Qty 20+

0

25

Gravely 00886700

ARM, CONTROL RTN

$

$

Not available

26

Gravely 00886800

ARM, RETURN

$

$

Not available

27

Gravely 00886200

ARM, RH INNER RTN
(Superseded to TCU18929)

$

$

Not available

Gravely 00886400

ARM, LH INNER RTN

$

$

Not available

28

Gravely 00886500

ARM, LH OUTER RTN

$

$

Not available

Gravely 00886300

ARM, RH OUTER RTN
(Superseded to TCA14966)

$897.99

$

Usually ships in 4-12 days

0

29

Gravely 00886900

SPACER
(Superseded to TCU19203)

$

$

Not available

30

Gravely 08300101

SPRING
(Superseded to 21544001)

$15.99

$

Usually ships in 4-12 days

0

31

Gravely 05900119

SCREW, 5/16 X 1 PATCH LOCK

$

$

Not available

32

Gravely 06400023

WASHER
(Superseded to 08611200)

$5.49

$

Usually ships in 4-12 days

0

33

Gravely 06400024

WASHER, NYLON

$

$

Not available

34

Gravely 06537000

NUT-CTRLK .31-24 YWZC

$2.49

$

In Stock, Qty 5

0

35

Gravely 00887000

SPACER

$

$

Not available

36

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0
