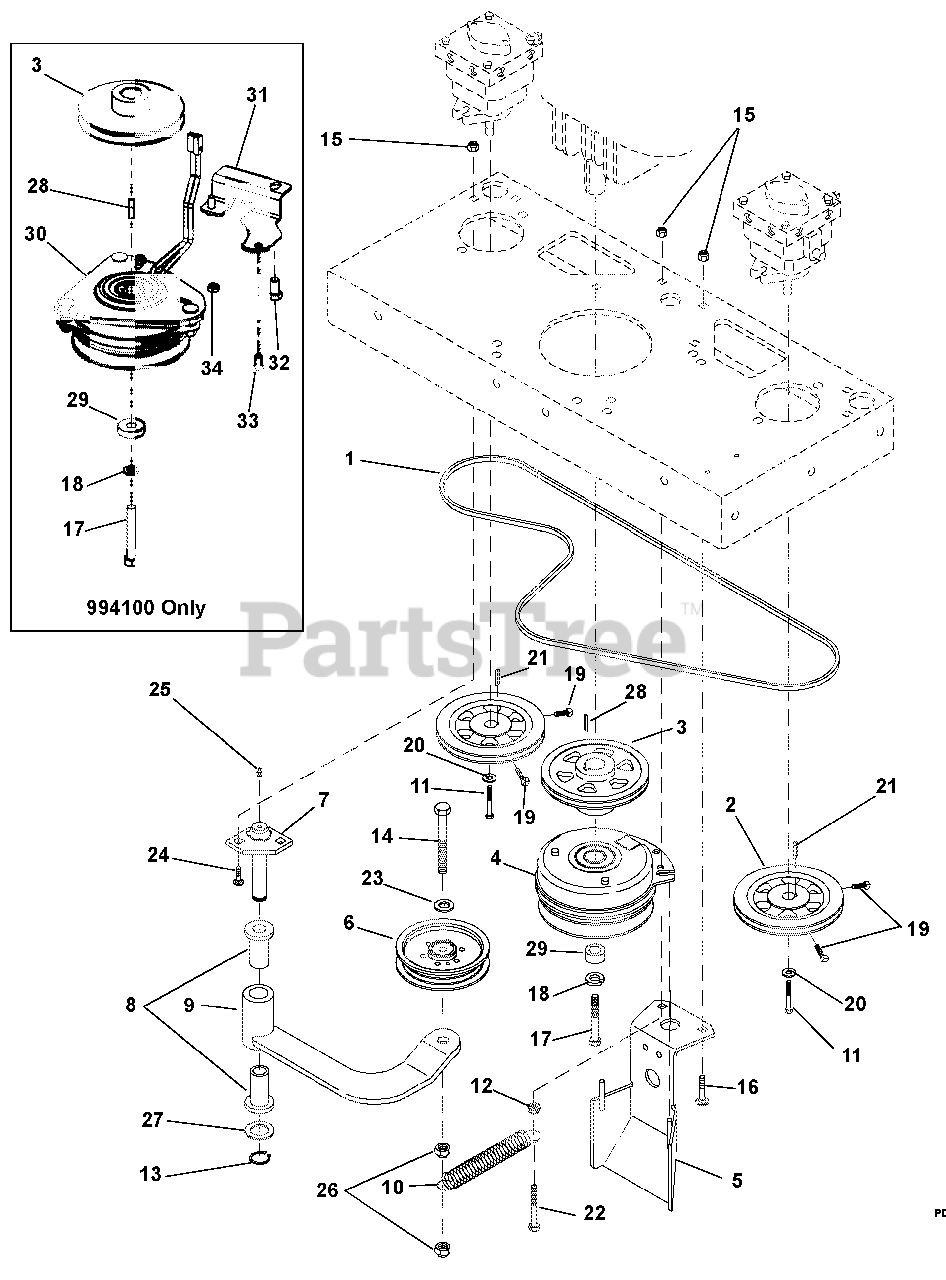

994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000101 - 000500) Hydrostatic Pump Drive And PTO Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

Hydrostatic Pump Drive And PTO Parts Diagram

  • Title

1

Gravely 07200118

V-Belt
(Superseded to GDU10025)

$46.99

$

Usually ships in 4-12 days

0

2

Gravely 07300116

Pulley, RH Pump, Set Screw Included
(Superseded to TCA15316)

$52.99

$

Usually ships in 4-12 days

0

3

Gravely 07300113

Pulley, Engine Drive

$

$

Not available

4

Gravely 00877900

PTO Clutch (994103)
(Superseded to GDA10017)

Note: (994103)

$526.99

$

Usually ships in 4-12 days

0

5

Gravely 00956700

Bracket
(Superseded to 00200937)

$

$

Not available

6

Gravely 07300111

Idler
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

7

Gravely 07300114

Idler Post

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 05500126

Bushing
(Superseded to D18403)

$9.99

$

Usually ships in 4-12 days

0

9

Gravely 07300115

Idler Arm

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 08300037

Spring, Idler
(Superseded to D18071)

$11.99

$

Usually ships in 4-12 days

0

11

Gravely 05900124

Bolt, M6 x 1.00 x 10 Hex

$

$

Not available

12

Gravely 06500034

Locknut, M10 x 1.50

$

$

Not available

13

Gravely 05701200

Ring, Retaining, External .750 x .042
(Superseded to 05700135)

$2.99

$

In Stock, only 2 left!

0

14

Gravely 05958400

Bolt, Hex .38-16 x 2.50
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 06542400

Nut, Locking, Nylon M10-1.5

$1.99

$

Usually ships in 4-12 days

0

16

Gravely 06200015

Carriage Bolt, M10 x 1.5 x 25

$

$

Not available

17

Gravely 05965700

Bolt, Hex .44-20 x 3.00 Grade 5
(Superseded to 05900037)

$7.49

$

In Stock, Qty 17

0

18

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

19

Gravely 06000002

Set Screw

$2.99

$

Usually ships in 4-12 days

0

20

Gravely 06308000

Washer, Locking .250 x .077

$0.99

$

Usually ships in 4-12 days

0

21

Gravely 06600005

Key, Special M5 x 28
(Superseded to D18067)

$

$

Not available

22

Gravely 05900113

Cap Screw, Spring Anchor, M10

$

$

Not available

23

Gravely 06436200

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 06200015

Carriage Bolt, M10 x 1.5 x 25

$

$

Not available

25

Gravely 00878300

Lubrication Fitting

$3.49

$

Usually ships in 4-12 days

0

26

Gravely 06529600

Nut, Locking, Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 05500138

Bushing, 3/4 Machine

$

$

Not available

28

Gravely 06600007

Key, .250 x .250 x .995 Taper
(Superseded to D18145)

$7.49

$

Usually ships in 4-12 days

0

29

Gravely 00875500

Spacer, PTO Clutch
(Superseded to D18056)

$22.99

$

Usually ships in 4-12 days

0

30

Gravely 00899800

Clutch Assembly, Ogura (994100)
(Superseded to 00200665)

Note: (994100)

$383.99

$

In Stock, only 2 left!

0

31

Gravely 08999000

Plate, Clutch Dog (994100)

Note: (994100)

$

$

Not available

32

Gravely 05900121

Bolt, 7/16-14 x .750 Hex 5 (994100)

Note: (994100)

$

$

Not available

33

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5 (994100)
(Superseded to 05901704)

Note: (994100)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 06530200

Nut, Locking, Nylon .312-18 (994100)
(Superseded to 06500820)

Note: (994100)

$1.49

$

In Stock, Qty 20+

0
