994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000101 - 000500) Mower Deck Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

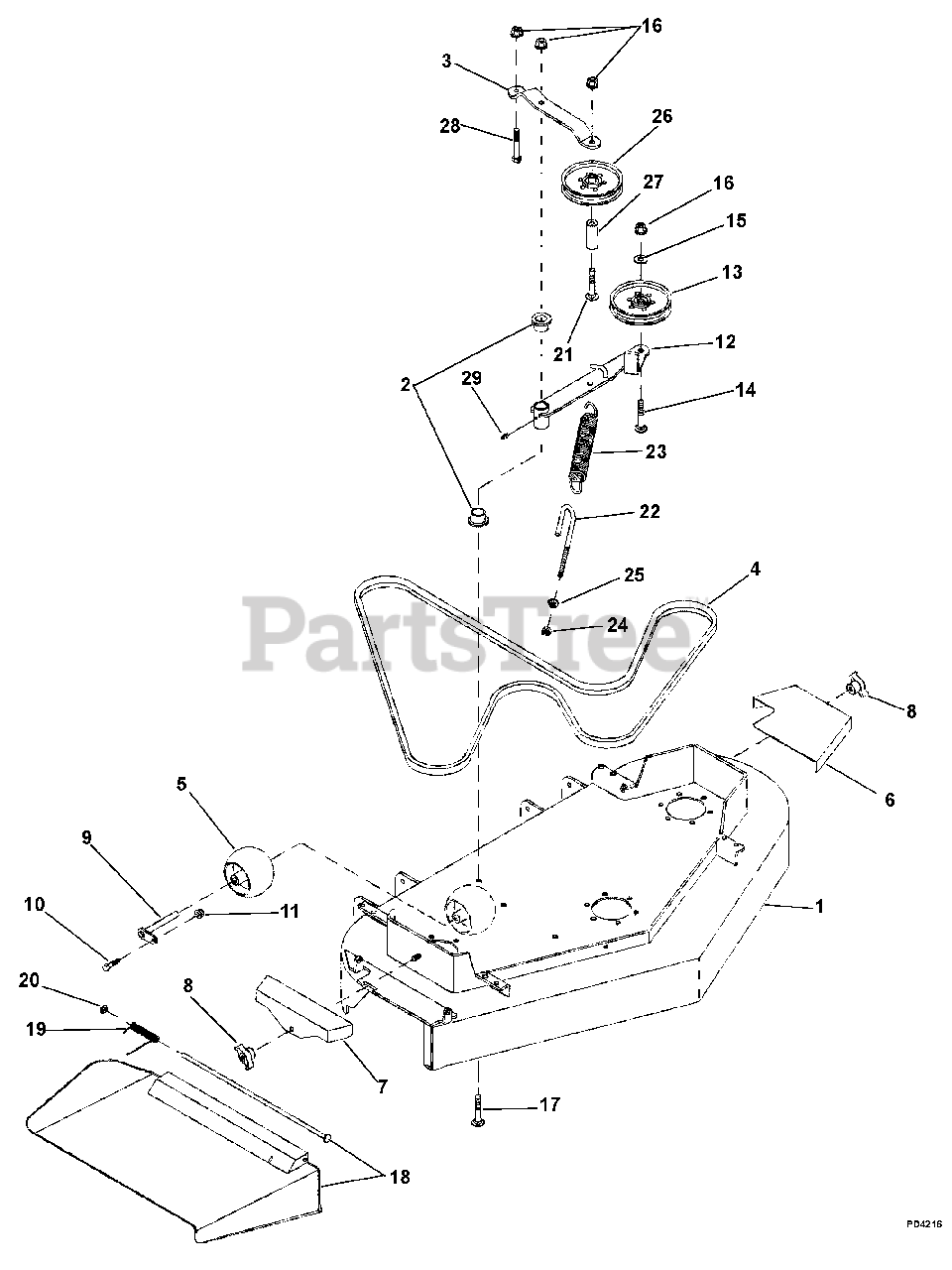

Mower Deck Parts Diagram

  • Title

1

Gravely 00883400

MOWER DECK, 48" S/O
(Superseded to 00200220)

Note: (994100)

$

$

Not available

Gravely 00883500

MOWER DECK, 52" S/O
(Superseded to 00894300)

Note: (994103)

$

$

Not available

2

Gravely 05500128

BUSHING
(Superseded to TCU14540)

$18.99

$

In Stock, Qty 6

0

3

Gravely 00949900

STRAP, IDLER PULLEY
(Superseded to TCU18344)

$40.99

$

Usually ships in 4-12 days

0

4

Gravely 07200119

BELT, ENGINE-TO-BLADES, 48"DEC
(Superseded to TCU18847)

Note: (994100)

$113.99

$

In Stock, only 1 left!

0

Gravely 07200120

BELT, ENGINE-TO-BLADES, 52"DEC
(Superseded to TCU18848)

Note: (994103)

$108.99

$

In Stock, only 2 left!

0

5

Gravely 07100327

WHEEL, GAGE, 48" AND 52" DECK
(Superseded to TCU18744)

$14.99

$

In Stock, Qty 14

0

6

Gravely 00950100

COVER, LH 48/52 DECK BELT S/O
(Superseded to 00200203)

$103.99

$

Usually ships in 4-12 days

0

7

Gravely 00885700

BELT COVER, RH 48" DECK
(Superseded to 00200202)

Note: (994100)

$

$

Not available

Gravely 00950100

COVER, LH 48/52 DECK BELT S/O
(Superseded to 00200203)

Note: (994103)

$103.99

$

Usually ships in 4-12 days

0

8

Gravely 00955100

KNOB, 3/8-16 INSERT
(Superseded to M119352)

$3.99

$

In Stock, only 4 left!

0

9

Gravely 00878000

PIVOT, ANTI-SCALP ROLLER

$

$

Not available

10

Gravely 06219800

BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 06500035

NUT-1/4" FLANGE PREVAILING TOR

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 07300117

ARM, IDLER ENGINE-TO-BLADE
(Superseded to TCA15346)

$145.99

$

In Stock, only 3 left!

0

13

Gravely 07300107

PULLEY, FLAT TENSION IDLER
(Superseded to D18032)

$82.99

$

In Stock, Qty 9

0

14

Gravely 06213400

BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$4.99

$

In Stock, Qty 9

0

15

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 05900108

BOLT, 3/8-16 X 4.00 CHCS

$

$

Not available

18

Gravely 00873900

DISCHARGE CHUTE, 48" DECK

Note: (994100)

$

$

Not available

Gravely 00874000

DISCHARGE CHUTE, 52" & 61" DEC
(Superseded to TCA16387)

Note: (994103)

$37.99

$

In Stock, only 2 left!

0

19

Gravely 08300039

SPRING, TORSIONAL DISCHARGE CH
(Superseded to M132768)

$9.99

$

In Stock, only 1 left!

0

20

Gravely 06900107

CLIP, RETAINER

$

$

Not available

21

Gravely 05900106

BOLT, 3/8-16 X 3-3/4 CHCS

$

$

Not available

22

Gravely 00876900

J-HOOK
(Superseded to D23058)

$6.49

$

In Stock, only 2 left!

0

23

Gravely 08300040

SPRING, DECK BELT TENSION
(Superseded to N242189)

$10.99

$

Usually ships in 4-12 days

0

24

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

25

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 07300112

PULLEY, FLAT BLADE-TO-BLADE
(Superseded to D28050)

$

$

Not available

27

Gravely 00886100

SPACER, BLADE-TO-BLADE PULLEY
(Superseded to TCU18742)

$19.99

$

Usually ships in 4-12 days

0

28

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

29

Gravely 00954800

FITTING, LUBRICATION

$3.49

$

Usually ships in 4-12 days

0
