994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000101 - 000500) Platform Components Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

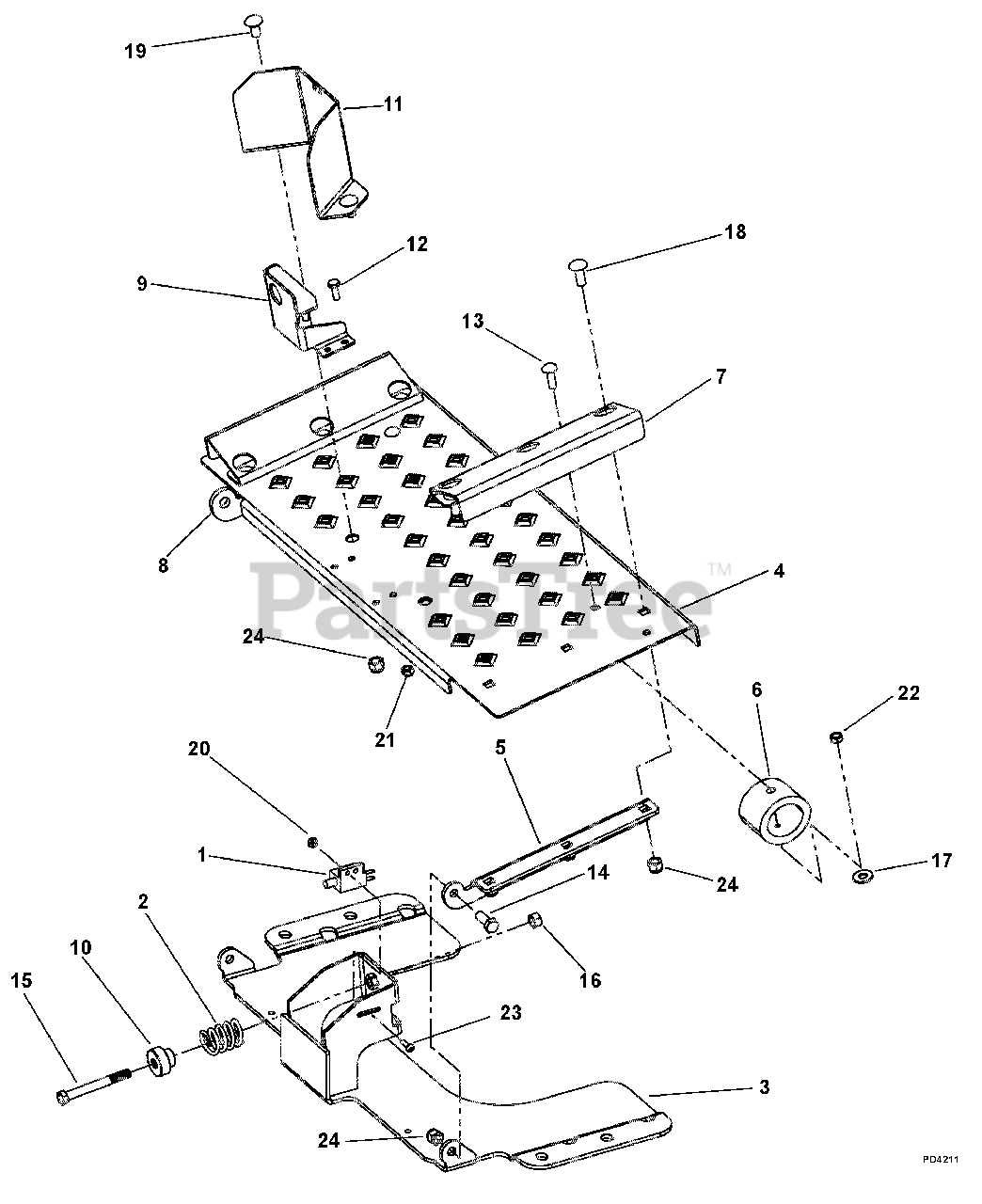

Platform Components Parts Diagram

  • Title

1

Gravely 00875300

Switch
(Superseded to D18038)

$4.99

$

Usually ships in 4-12 days

0

2

Gravely 08300038

Spring
(Superseded to D38128)

$18.99

$

Usually ships in 4-12 days

0

3

Gravely 00956800

Weldment, Platform
(Superseded to 00200299)

$

$

Not available

4

Gravely 00897100

Plate, Platform
(Superseded to 00200618)

$

$

Not available

5

Gravely 00897200

Plate, Platform Tab
(Superseded to 00200619)

$

$

Not available

6

Gravely 00941800

Bumper, Miner GBR-6
(Superseded to 00200655)

$

$

Not available

7

Gravely 00938300

Wedge, Platform

$9.49

$

Usually ships in 4-12 days

0

8

Gravely 00938400

Plate, Platform Tab LH
(Superseded to 00200693)

$

$

Not available

9

Gravely 00941300

Anchor, Operator Presence Control

$

$

Not available

10

Gravely 06400027

Washer, Spring
(Superseded to 00200770)

$

$

Not available

11

Gravely 00956900

Cover, Operator Presence Control

$

$

Not available

12

Gravely 05946400

Bolt, Hex M12 x 1.75 x 25

$

$

Not available

13

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

14

Gravely 05900120

Bolt, JDS19-16 UNC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05961100

Bolt, Hex .38-16 x 3.25
(Superseded to 05901817)

$3.99

$

In Stock, only 1 left!

0

16

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

17

Gravely 06435700

Washer, Flat .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

18

Gravely 06212000

Bolt, Round Head Square Neck .31-16 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06223900

Bolt, Round Head Square Neck .31-16 x .75
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

20

Gravely 06506000

Nut, Locking, Nylon 10-24 With Insert
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06531000

Nut, Locking, Nylon .250-20
(Superseded to 06500832)

$4.99

$

In Stock, only 2 left!

0

22

Gravely 06530200

Nut, Locking, Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

23

Gravely 06111100

Screw, Machine 10-24 x .62 Pan Head

$0.99

$

In Stock, Qty 16

0

24

Gravely 06535800

Nut, Locking, Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0
