994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000101 - 000500) Spindle Assembly Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

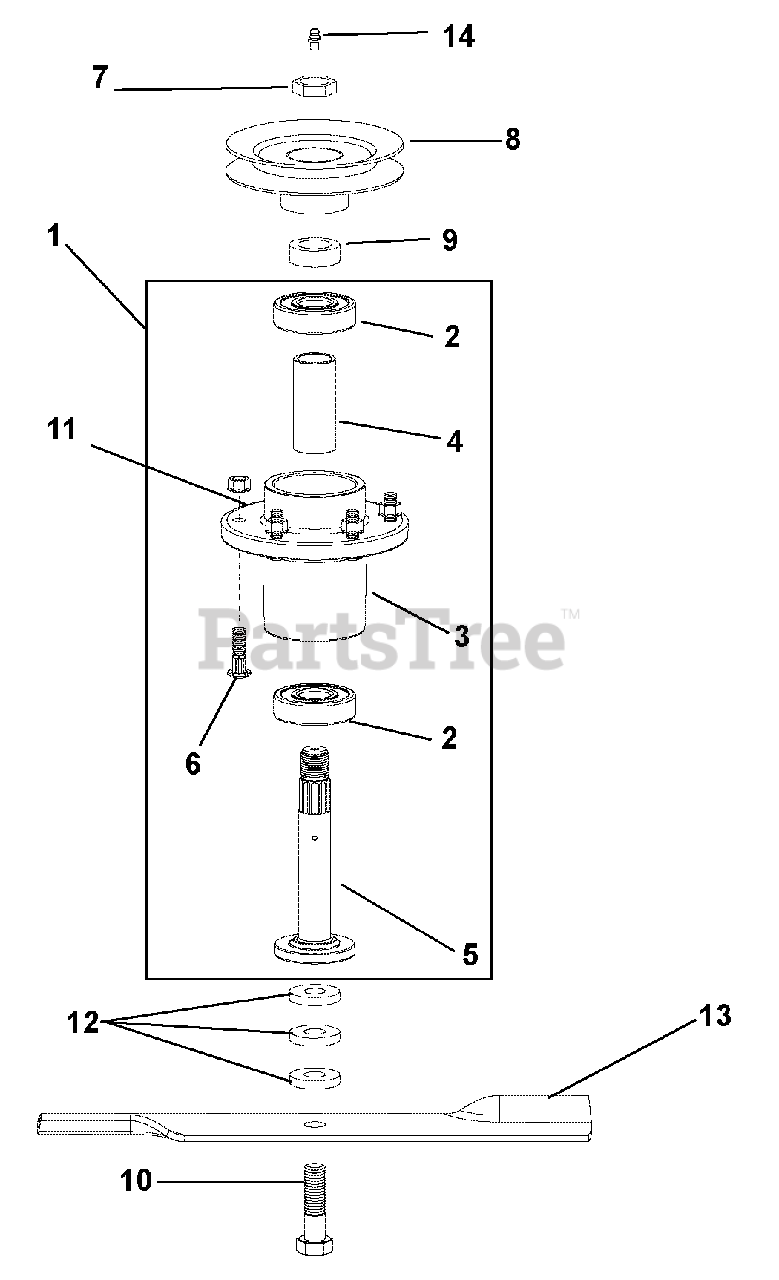

Spindle Assembly Parts Diagram

  • Title

1

Gravely 00872700

Spindle Assembly, Includes Items 2, 3, 4, 5, 6, 14
(Superseded to 00200262)

$250.99

$

In Stock, only 1 left!

0

2

Gravely 05400019

Ball Bearing
(Superseded to 00200046)

$26.99

$

Usually ships in 4-12 days

0

3

Gravely 00872800

Housing
(Superseded to 00200042)

$87.99

$

Usually ships in 4-12 days

0

4

Gravely 00873000

Spacer, 1.000 x 1.250 x 2.772
(Superseded to 00200044)

$29.99

$

Usually ships in 4-12 days

0

5

Gravely 00872900

Shaft, Spindle
(Superseded to 00200261)

$93.99

$

Usually ships in 4-12 days

0

6

Gravely 05900105

Bolt, 3/8 x 1.25 RIB
(Superseded to 00200045)

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 06500027

Nut, Pulley (Special)
(Superseded to D13055)

Note: (Special)

$39.99

$

In Stock, only 1 left!

0

8

Gravely 07300109

Pulley, Cutter Housing (994100)
(Superseded to D18209)

Note: (994100)

$91.99

$

In Stock, only 4 left!

0

Gravely 07300108

Pulley, Cutter Housing (994103)
(Superseded to 07329667)

Note: (994103)

$90.99

$

In Stock, only 1 left!

0

9

Gravely 00874200

Spacer, Pulley
(Superseded to D13024)

$10.99

$

In Stock, only 2 left!

0

10

Gravely 05930700

Bolt, Hex .62-11 x 2.25

$3.99

$

In Stock, only 1 left!

0

11

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

12

Gravely 00875400

Spacer, Blade Bolt
(Superseded to D18055)

$6.99

$

In Stock, only 4 left!

0

13

Gravely 00878100

16.5" Blade (994100)
(Superseded to GDU10230)

Note: (994100)

$27.99

$

In Stock, Qty 19

0

Gravely 00878200

18.0" Blade (994103)
(Superseded to GDU10231)

Note: (994103)

$27.99

$

In Stock, Qty 20+

0

14

Gravely 00873100

Zerk, Grease S/O
(Superseded to JD7849)

$3.49

$

Usually ships in 4-12 days

0
