994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000501 & Above) 48" Flat Discharge Shield Assembly Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

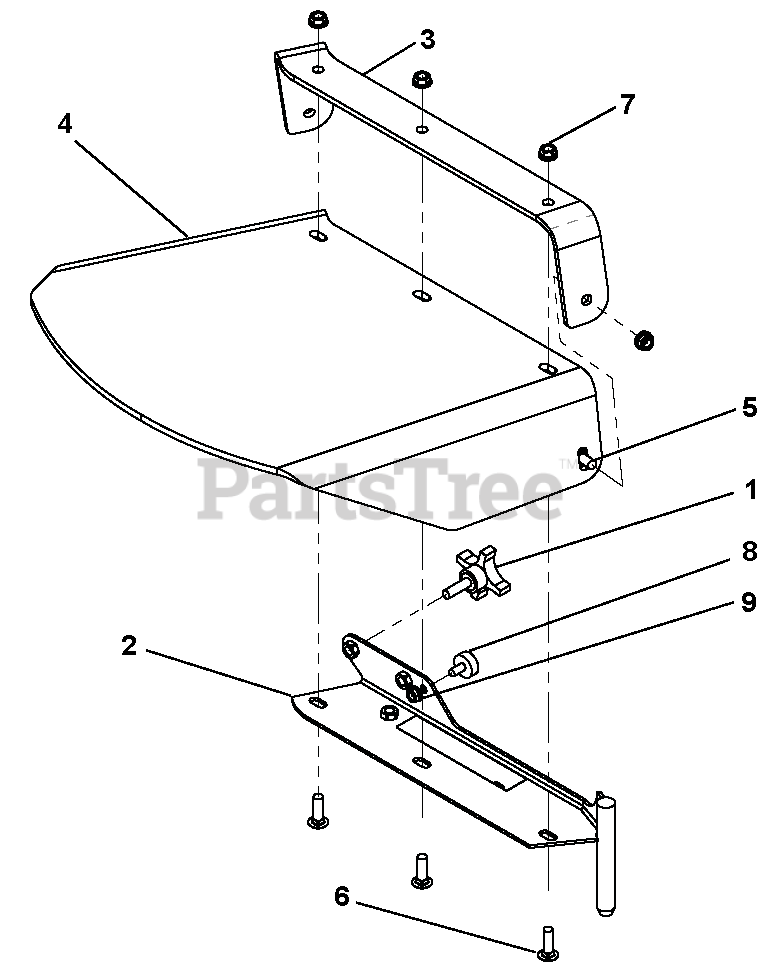

48" Flat Discharge Shield Assembly Parts Diagram

  • Title

1

Gravely 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

In Stock, only 4 left!

0

2

Gravely 03981953

WLDT. DISCHARGE

$90.99

$

Usually ships in 4-12 days

0

3

Gravely 03983853

STRAP, GRAVELY WLK RUBBER DIS

$63.99

$

Usually ships in 4-12 days

0

4

Gravely 04044200

SHIELD, WALK RUBBER DISCHARGE

$70.99

$

Usually ships in 4-12 days

0

5

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

9

Gravely 00964019

LOCKNUT, 5/16-18 WHIZ Y
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0
