994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000501 & Above) Caster Wheels and Rear Wheels Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

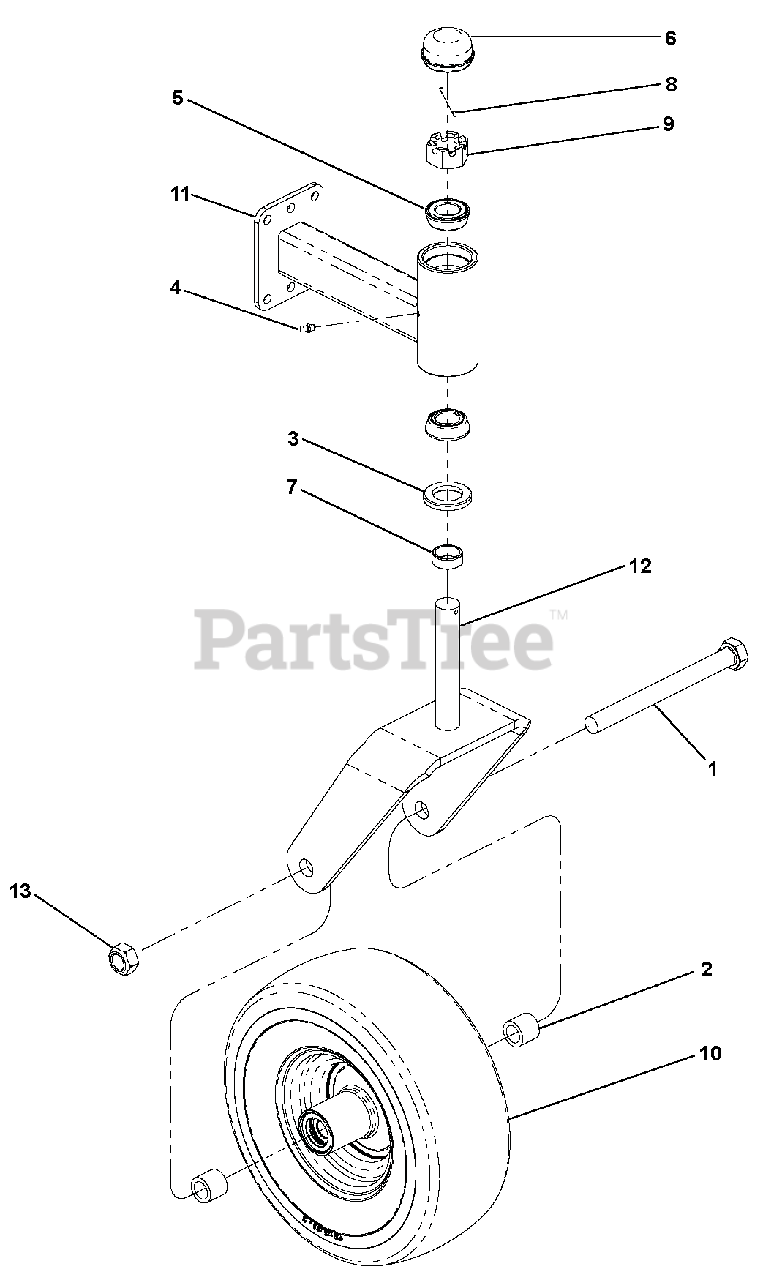

Caster Wheels and Rear Wheels Parts Diagram

  • Title

1

Gravely D28097

WHEEL BOLT, CASTER
(Superseded to 05901333)

$

$

Not available

2

Gravely D33007

SPACER

$19.99

$

Usually ships in 4-12 days

0

3

Gravely E14625

SEAL, WHEEL BEARING

$17.99

$

Usually ships in 4-12 days

0

4

Gravely JD7844

FITTING, LUBRICATION

$

$

Not available

5

Gravely JD8933

CONE BEARING
(Superseded to 05406900)

$21.99

$

In Stock, Qty 20+

0

6

Gravely M135582

CAP, DUST
(Superseded to 05117700)

$7.49

$

In Stock, Qty 12

0

7

Gravely TCU17863

SPACER, CASTER

$

$

Not available

8

Gravely 11M7083

PIN,COTTER,DIN94,3.2X50-ST-ZN

$

$

Not available

9

Gravely 14H920

NUT, HEX SLOT 1.00 UNS2B ZN 5

$

$

Not available

10

Gravely 00200013

ASSY, CASTER WHEELS & TIRE

$134.99

$

Usually ships in 4-12 days

0

11

Gravely 00200209

WLDT, FRONT CASTER (GRVLY) RED

$364.99

$

Usually ships in 4-12 days

0

12

Gravely 00200210

WLDT, YOKE (GRAVELY RED)

$243.99

$

Usually ships in 4-12 days

0

13

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$4.99

$

In Stock, Qty 16

0
