994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000501 & Above) Caster Wheels and Rear Wheels Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

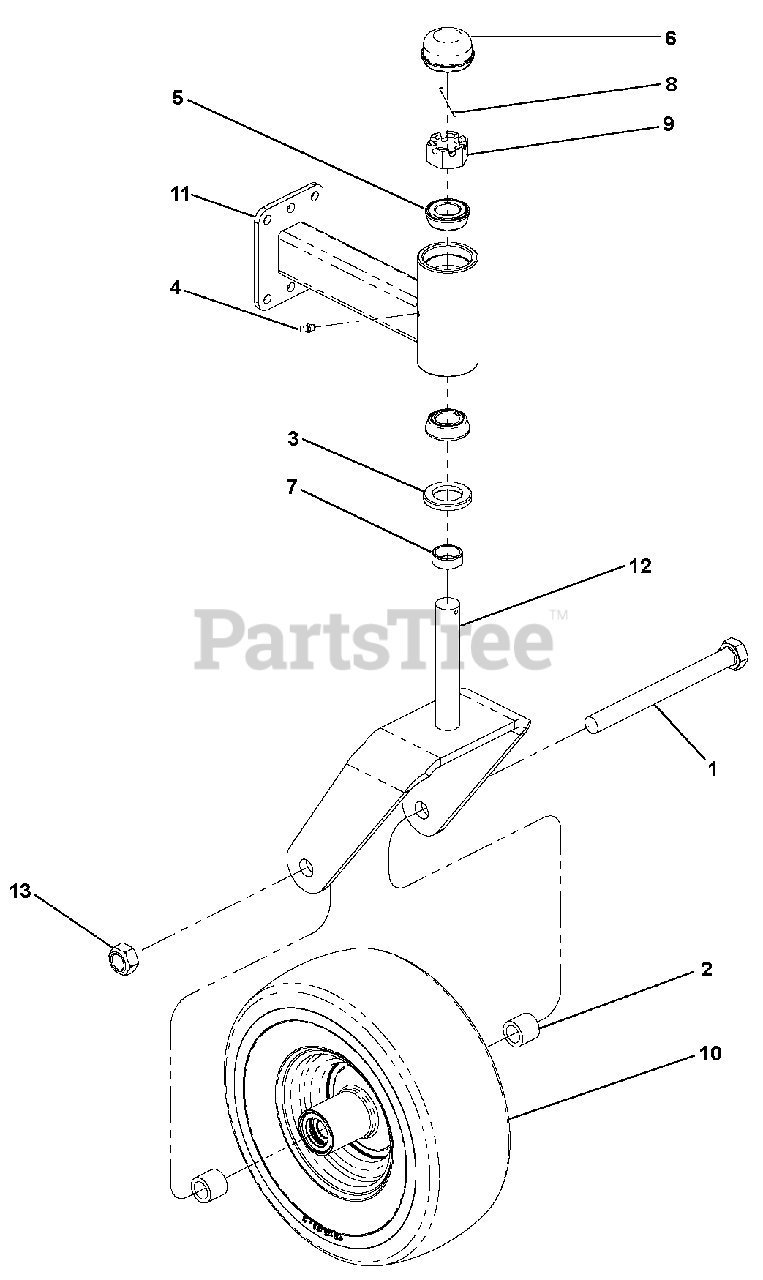

Caster Wheels and Rear Wheels Parts Diagram

  • Title

1

Gravely D28097

Wheel Bolt, Caster
(Superseded to 05901333)

$

$

Not available

2

Gravely D33007

Spacer Assembly

$18.99

$

Usually ships in 4-12 days

0

3

Gravely E14625

Seal, Wheel Bearing

$16.99

$

Usually ships in 4-12 days

0

4

Gravely JD7844

Fitting, Lubrication

$

$

Not available

5

Gravely JD8933

Cone, Bearing
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

6

Gravely M135582

Cap, Dust
(Superseded to 05117700)

$6.49

$

In Stock, only 2 left!

0

7

Gravely TCU17863

Spacer, Caster

$

$

Not available

8

Gravely 11M7083

Pin, Cotter, DIN94, 3.2 x 50-Steel-ZN

$

$

Not available

9

Gravely 14H920

Nut, Hex Slot 1.00

$

$

Not available

10

200013

Assembly, Caster Wheels and Tire

$

$

Not available

11

200209

Weldment, Front Caster Support S/O

$

$

Not available

12

200210

Weldment, Yoke

$

$

Not available

13

964024

Locknut, 3/4 - 16 Crown

$

$

Not available
