994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000501 & Above) Drive Controls and Linkage Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

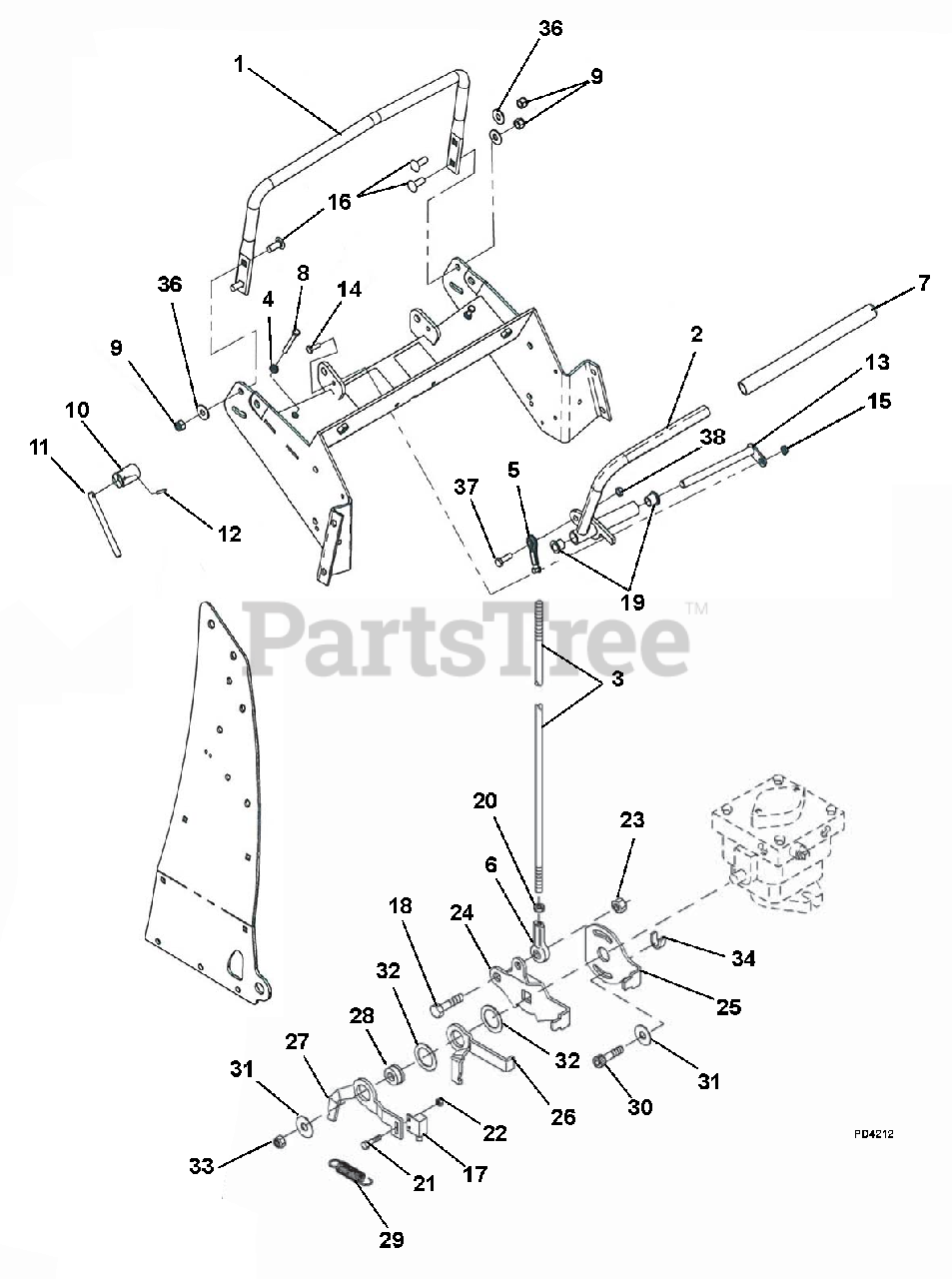

Drive Controls and Linkage Parts Diagram

  • Title

1

Gravely 03730751

SUPPORT, HANDLE PAINTED

$

$

Not available

2

Gravely 03730900

LH CONTROL LEVER W/GRIP

$

$

Not available

Gravely 03731000

RH CONTROL LEVER W/GRIP

$246.99

$

Usually ships in 4-12 days

0

3

Gravely 03787300

ROD, CONTROL 5/16 X 23.75

$

$

Not available

4

Gravely 06500026

FLANGE NUT, M6 X 1.0
(Superseded to 06500729)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 03787200

ALIGNABALL, 5/16 LH THREAD
(Superseded to 05298700)

$17.99

$

In Stock, only 2 left!

0

6

Gravely 03787100

ALIGNABALL, 5/16 RH THREAD

$18.99

$

Usually ships in 4-12 days

0

7

Gravely D18093

GRIP, CONTROL
(Superseded to 07500222)

$8.49

$

In Stock, only 1 left!

0

8

Gravely 05900111

CAP SCREW, REVERSE STOP M6 X 1

$

$

Not available

9

Gravely 06542400

NUT-LK-NYL M10-1.5 YWZC

$1.99

$

Usually ships in 4-12 days

0

10

Gravely D13308

BASE, LOCK LEVER Y

$

$

Not available

11

Gravely D13309

LEVER, LOCK Y

$

$

Not available

12

Gravely 05800005

PIN, SPRING 5/32 X 1

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 00203893

WLDT, PIN AND LOCK Y

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

15

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

16

Gravely 05943000

BLT-HEX M10 X 1.5X25 YWZC

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 00191256

SWITCH, PLUNGER DP - N.O.-N.C.
(Superseded to 08828100)

Note: (Double Pole) N.O.

$21.99

$

In Stock, only 1 left!

0

18

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 00200116

BRG, FLG .500X.620X.500 BRNZ

$6.49

$

Usually ships in 4-12 days

0

20

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.49

$

In Stock, only 2 left!

0

21

Gravely 06111100

SCR-MCH 10-24X.62 P/HD

$1.49

$

In Stock, Qty 10

0

22

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

24

Gravely TCU19201

ARM, CONTROL RTN

$

$

Not available

25

Gravely TCU19202

ARM, RETURN

$

$

Not available

26

Gravely TCU18929

ARM, RTN PUMP RH (INT)

$

$

Not available

Gravely TCU18931

ARM, RTN PUMP LH (INT)

$

$

Not available

27

Gravely TCU18932

ARM, RTN PUMP LH (EXT)

$

$

Not available

Gravely TCU18930

ARM, RTN PUMP RH (EXT)

$

$

Not available

28

Gravely TCU19203

SPACER, RTN

$

$

Not available

29

Gravely TCU19204

SPRING, EXTENSION

$

$

Not available

30

Gravely 05900119

SCREW, 5/16 X 1 PATCH LOCK

$

$

Not available

31

Gravely 06400023

WASHER
(Superseded to 08611200)

$4.49

$

Usually ships in 4-12 days

0

32

Gravely 06400024

WASHER, NYLON

$

$

Not available

33

Gravely 06537000

NUT-CTRLK .31-24 YWZC

$1.99

$

In Stock, Qty 5

0

34

Gravely TCU19208

SPACER

$

$

Not available

35

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

37

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

38

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0
