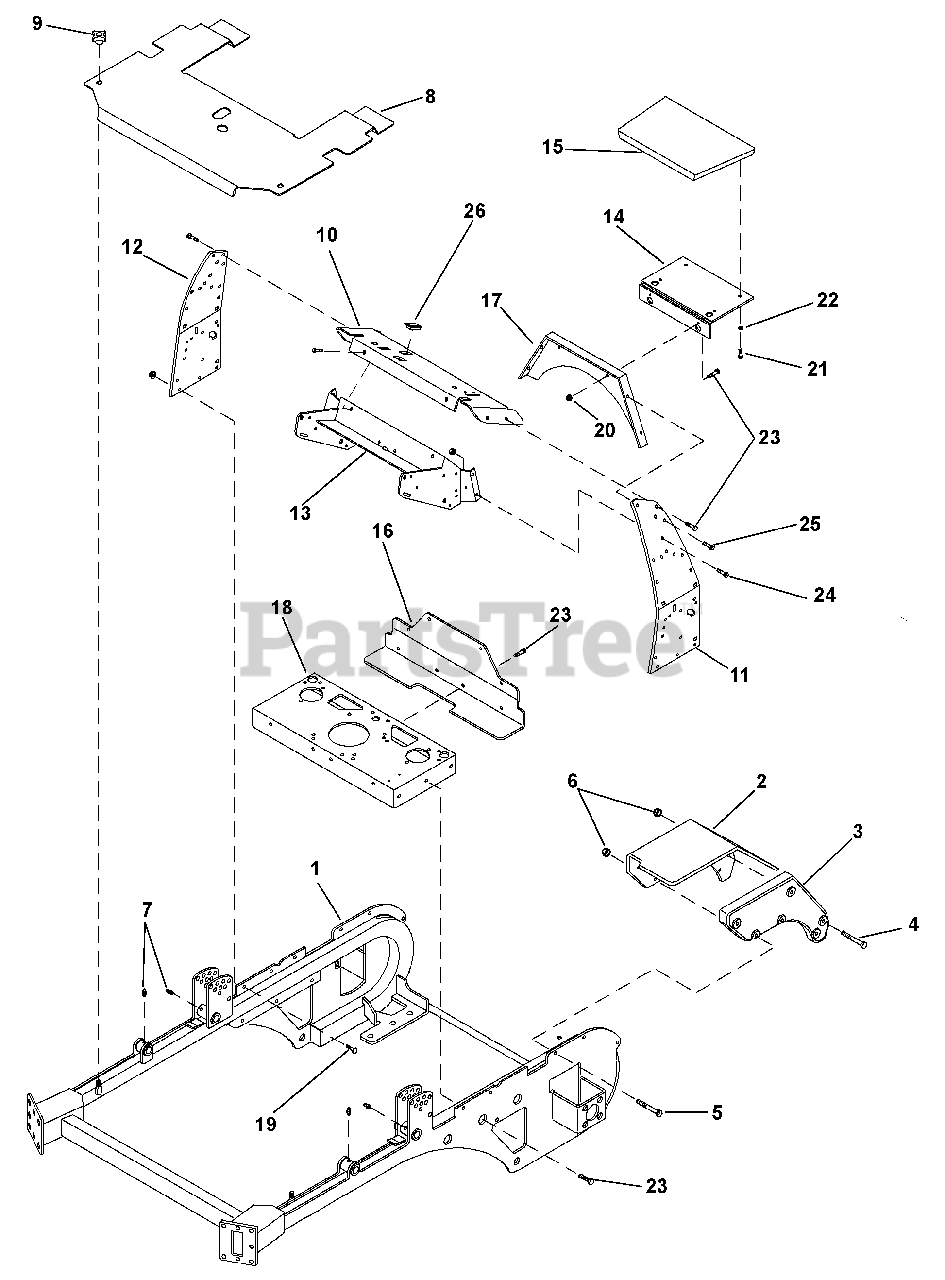

994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000501 & Above) Frame, Traction Deck and Console Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

Frame, Traction Deck and Console Parts Diagram

  • Title

1

Gravely 56323004

ASSY, 48-52 FRAME W/DECALS FL

$

$

Not available

2

Gravely 00200212

FENDER, LH S/O

$

$

Not available

Gravely 00200211

FENDER, RH S/O

$

$

Not available

3

Gravely 00200038

WEIGHT, MACHINED

$

$

Not available

4

Gravely 05975300

BLT-HEX M8-1.25X65 YWZC

$

$

Not available

5

Gravely 05976800

BLT, HEX M8-1.25X70 YWZC

$

$

Not available

6

Gravely 06541700

NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$2.49

$

Usually ships in 4-12 days

0

7

Gravely JD7842

ZERK,1/4-28ST FITTNG, SHORT SH

$

$

Not available

8

Gravely 56320006

ASSY, 48 SHIELD W/DECALS GRAVL

Note: (994100)

$

$

Not available

Gravely 56323006

ASSY, 52 SHIELD W/DECALS GRAVL

Note: (994103)

$

$

Not available

9

Gravely M119352

KNOB, 3/8-16 INSERT

$4.99

$

In Stock, only 4 left!

0

10

Gravely 56323003

CONTROL CONSOLE W/DECALS GRAVL

$

$

Not available

11

Gravely 00200214

WLDT, LH SIDE SUPPORT

$

$

Not available

12

Gravely 00200215

WLDT, RH SIDE SUPPORT S/O

$

$

Not available

13

Gravely 56323002

WLDT FLOAT CONSOLE WITH DECALS

$

$

Not available

14

Gravely D15368

PLATE, HINGED THIGH PAD

$

$

Not available

15

Gravely 00200152

PAD, THIGH BLACK

$

$

Not available

16

Gravely 03773310

SHIELD, ENGINE HEAT W/DECALS

$

$

Not available

17

Gravely D15305

WLDT, THIGH PLATE

$90.99

$

Usually ships in 4-12 days

0

18

Gravely 56323005

ENGINE DECK W/DECALS GRAVELY

$

$

Not available

19

Gravely 06200015

CARRIAGE BOLT, M10 X 1.5 X 25

$

$

Not available

20

Gravely 06542400

NUT-LK-NYL M10-1.5 YWZC

$2.49

$

Usually ships in 4-12 days

0

21

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 05967600

BLT-HEX M10 X 1.5X20 GR5 YWZC

$3.49

$

Usually ships in 4-12 days

0

24

Gravely 05943000

BLT-HEX M10 X 1.5X25 YWZC

$3.49

$

Usually ships in 4-12 days

0

25

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$2.49

$

In Stock, Qty 11

0

26

Gravely M115279

3PLUG, EURO STYLE

$

$

Not available
