994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000501 & Above) Fuel Tank and Lines Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

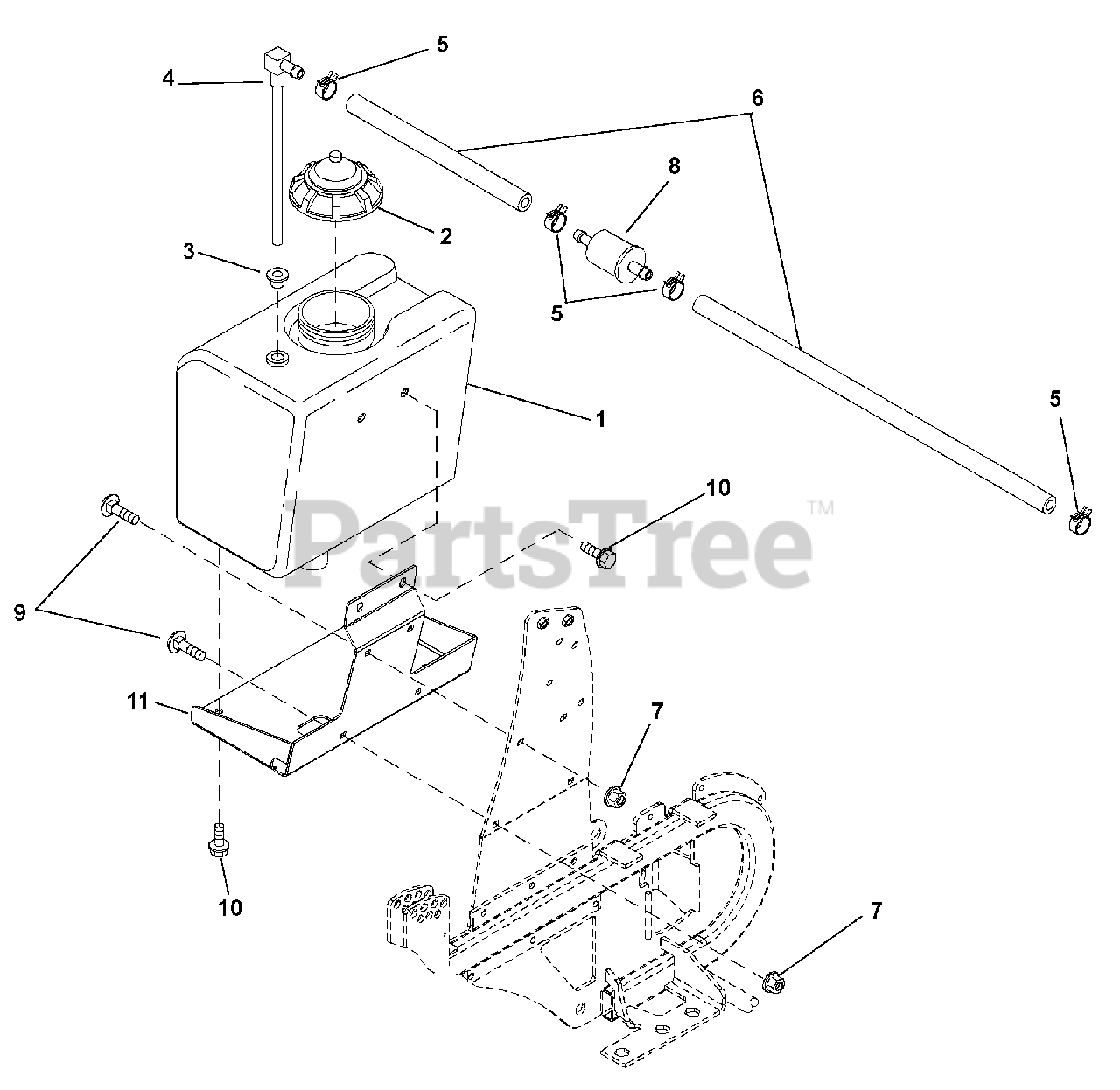

Fuel Tank and Lines Parts Diagram

  • Title

1

Gravely 00200151

Fuel Tank (includes 2, 3 and 4)

Note: (includes 2, 3 and 4)

$

$

Not available

2

Gravely 00181251

Cap, Fuel

$24.99

$

In Stock, Qty 10

0

3

Gravely 00181208

Grommet
(Superseded to 00387300)

$9.99

$

In Stock, Qty 13

0

4

Gravely TCA15048

Fuel Pickup

$

$

Not available

5

Gravely 03278800

Clamp

$1.49

$

In Stock, Qty 20+

0

6

Gravely M88753

Hose, 10 FT Service (cut as needed)

Note: (cut as needed)

$

$

Not available

7

Gravely 06542400

Nut, Lock, Nylon M10-1.5

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 21547900

Fuel Filter, Kawasaki
(Superseded to 21573800)

$15.99

$

Usually ships in 4-12 days

0

9

Gravely 06200015

Carriage Bolt, M10 x 1.5 x 25

$

$

Not available

10

Gravely 05956300

Bolt, Hex, M8 x 1.25 x 16

$

$

Not available

11

Gravely TCU18489

Bracket, Fuel Tank Mounting Welding

$

$

Not available
