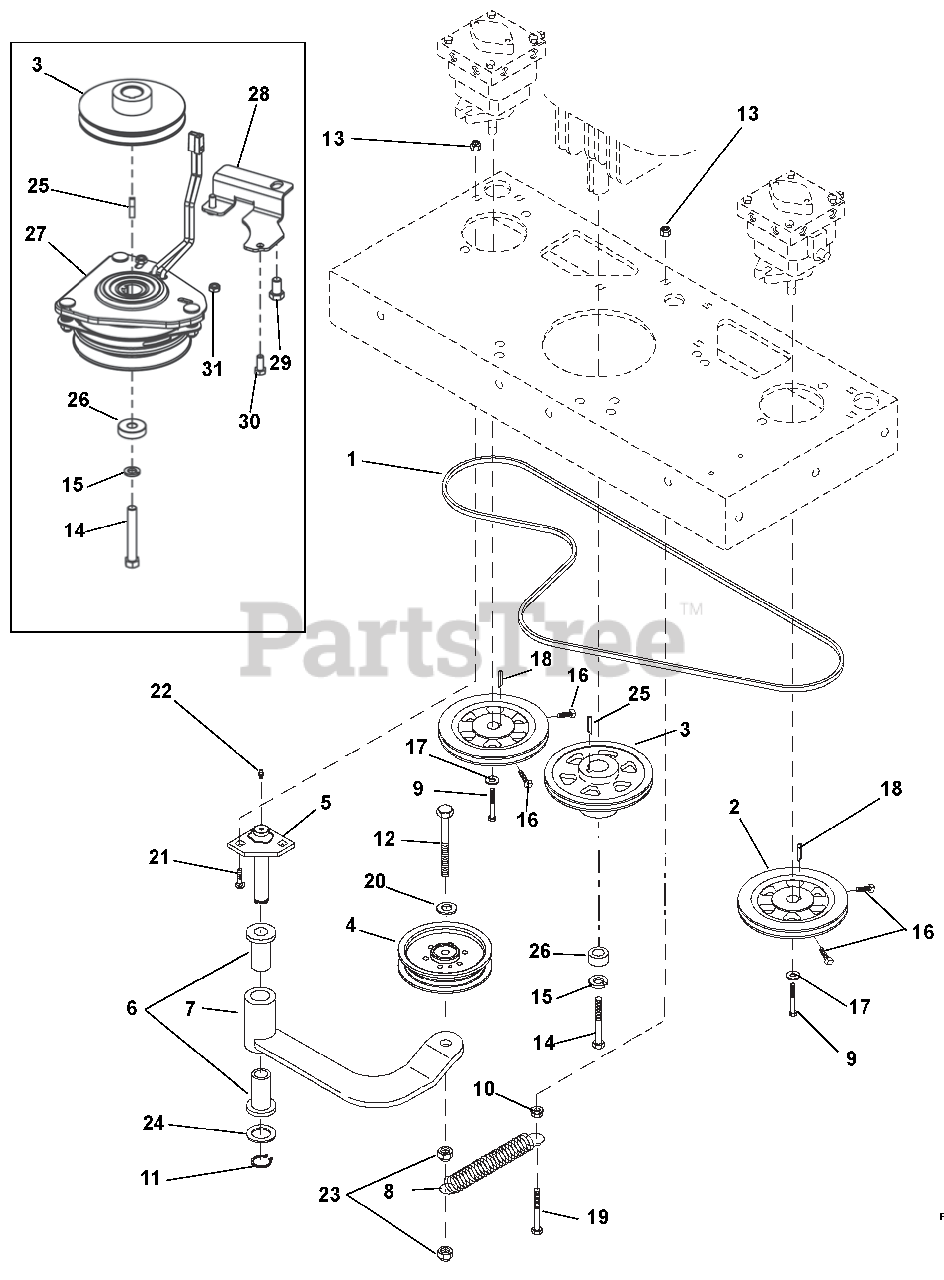

994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000501 & Above) Hydrostatic Pump Drive and PTO Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

Hydrostatic Pump Drive and PTO Parts Diagram

  • Title

1

Gravely GDU10025

BELT, DRIVE, PUMP

$46.99

$

Usually ships in 4-12 days

0

2

Gravely TCA15316

ASSY, PUMP PULLEY W/SET SCREW

$52.99

$

Usually ships in 4-12 days

0

3

Gravely D28091

PULLEY

$70.99

$

Usually ships in 4-12 days

0

4

Gravely 07300039

ASM, IDLER 4"
(Superseded to 07350100)

$50.99

$

In Stock, Qty 20+

0

5

Gravely GDA10004

WLDT, PIVOT IDLER MOUNT

$

$

Not available

6

Gravely D18403

BUSHING

$9.99

$

In Stock, only 2 left!

0

7

Gravely GDA10005

ARM, IDLER WELDMENT

$80.99

$

Usually ships in 4-12 days

0

8

Gravely D18071

SPRING, EXT .900X.135X4.50 Y

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 05900124

BOLT, M6X1.00X10 HEX 8.8 Y

$

$

Not available

10

Gravely 06500034

LOCKNUT, M10X1.50 WHIZ GR10 Y

$

$

Not available

11

Gravely 00403490

SNAP RING, .750 X .042 EXT

$

$

Not available

12

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 06542400

NUT-LK-NYL M10-1.5 YWZC

$1.99

$

Usually ships in 4-12 days

0

14

Gravely 05900037

BLT-HEX .44-20X3.00 G5 YZ EP80

$7.49

$

In Stock, Qty 14

0

15

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

16

Gravely 06000002

SET SCREW

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 06308000

WSHR-LK .250X.077 HVY YWZC

$0.99

$

In Stock, Qty 7

0

18

Gravely 06600005

KEY, SPECIAL M5 X 28
(Superseded to D18067)

$

$

Not available

19

Gravely 05900113

CAP SCREW, SPRING ANCHOR M10 X

$

$

Not available

20

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06200015

CARRIAGE BOLT, M10 X 1.5 X 25

$

$

Not available

22

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

23

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

24

Gravely 00150052

BUSHING, MACH .750X1.25X.048 Y

$5.49

$

Usually ships in 4-12 days

0

25

Gravely 06600007

KEY, .250 X .250 X .995 TPR
(Superseded to D18145)

$7.49

$

Usually ships in 4-12 days

0

26

Gravely D18056

SPACER, .468 X 1.38 X .375 Y

$22.99

$

Usually ships in 4-12 days

0

27

Gravely 00200665

CLUTCH ASSY, OGURA# GT1A-HU02

$284.99

$

In Stock, only 3 left!

0

28

Gravely 00200666

PLATE, CLUTCH DOG

$52.99

$

Usually ships in 4-12 days

0

29

Gravely 05900121

BLT-HEX .44-14X.75 GR5 YWZC
(Superseded to 05901920)

Note: (994100)

$2.99

$

Usually ships in 4-12 days

0

30

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (994100)

$1.99

$

In Stock, Qty 20+

0

31

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

Note: (994100)

$1.49

$

In Stock, Qty 5

0
