994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000501 & Above) Kawasaki Engine and Related Components Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

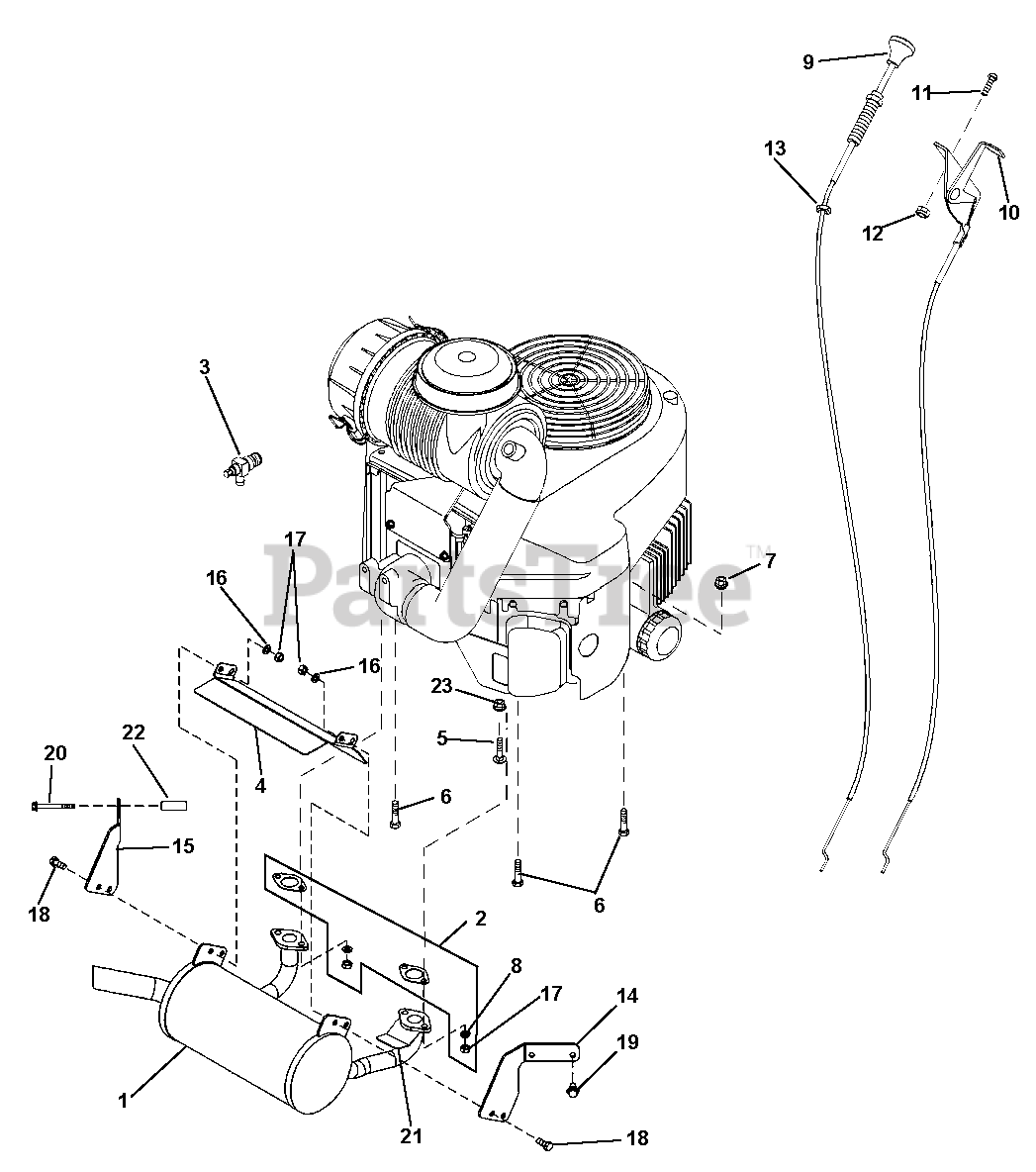

Kawasaki Engine and Related Components Parts Diagram

  • Title

1

Gravely TCA15321

Muffler (994103)

Note: (994103)

$361.99

$

Usually ships in 4-12 days

0

2

Gravely 00191601

Gasket Kit, (Includes Gaskets, items 8 and 17)

Note: (Includes Gaskets, items 8 and 17)

$55.99

$

Usually ships in 4-12 days

0

3

Gravely TCA16240

Oil Drain Fitting

$

$

Not available

4

Gravely TCU19288

Muffler Shield (994103)

Note: (994103)

$10.99

$

In Stock, only 1 left!

0

5

Gravely 05900123

Carriage Bolt, Engine Mounting M8 x1.25 x 50
(Superseded to 06200203)

$

$

Not available

6

Gravely 05900116

Cap Screw, Engine Mounting M8 x 1.2

$

$

Not available

7

Gravely 06541700

Nut, Locking, Nylon M8-1.25
(Superseded to 06500817)

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 06308600

Washer, Lock .31 x .078
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

9

Gravely D18427

Cable, Choke

$54.99

$

Usually ships in 4-12 days

0

10

Gravely TCA15051

Cable, Throttle

$22.99

$

Usually ships in 4-12 days

0

11

Gravely 06200013

Bolt, Hex, 8-32 x .5

$

$

Not available

12

Gravely 06531300

Nut, Locking, Nylon 8-32 With Insert

$0.99

$

Usually ships in 4-12 days

0

13

Gravely 06522900

Nut, Hex .38-24
(Superseded to 06500940)

$2.99

$

In Stock, only 2 left!

0

14

Gravely TCU15762

Bracket, Muffler Support RH (994103)

Note: (994103)

$

$

Not available

15

Gravely TCU15761

Bracket, Muffler Support LH (994103)

Note: (994103)

$

$

Not available

16

Gravely 06400327

Washer, Helical Spring

$

$

Not available

17

Gravely 06538600

Nut, Hex, M8-1.25

$2.49

$

Usually ships in 4-12 days

0

18

Gravely 05973300

Bolt, Hex, M8-1.250 x 20
(Superseded to 05901628)

$1.99

$

Usually ships in 4-12 days

0

19

Gravely 05956300

Bolt, Hex, M8 x 1.25 x 16

$

$

Not available

20

Gravely 06100008

Screw, Flanged Metric M6 x 60

$

$

Not available

21

Gravely 00191365

Shield, Heat (994103)

Note: (994103)

$

$

Not available

22

Gravely M146270

Spacer, Reverse Pedal Assembly

$

$

Not available

23

Gravely 06542300

Bolt, Hex, M8 x 1.25 x 16
(Superseded to 06500725)

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 00186700

Air Filter 19 (994100)

Note: (994100)

$

$

Not available

25

Gravely 00181073

Oil Filter (994100)
(Superseded to 21535800)

Note: (994100)

$18.99

$

In Stock, Qty 20+

0

26

Gravely 21538400

Fuel Filter-Kawasaki (994100)
(Superseded to 21573800)

Note: (994100)

$15.99

$

Usually ships in 4-12 days

0

27

Gravely 00186800

Spark Plug, 19 HP Kawasaki (994100)
(Superseded to 21533600)

Note: (994100)

$4.99

$

In Stock, Qty 20+

0
