994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000501 & Above) Mower Deck Lift Linkage Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

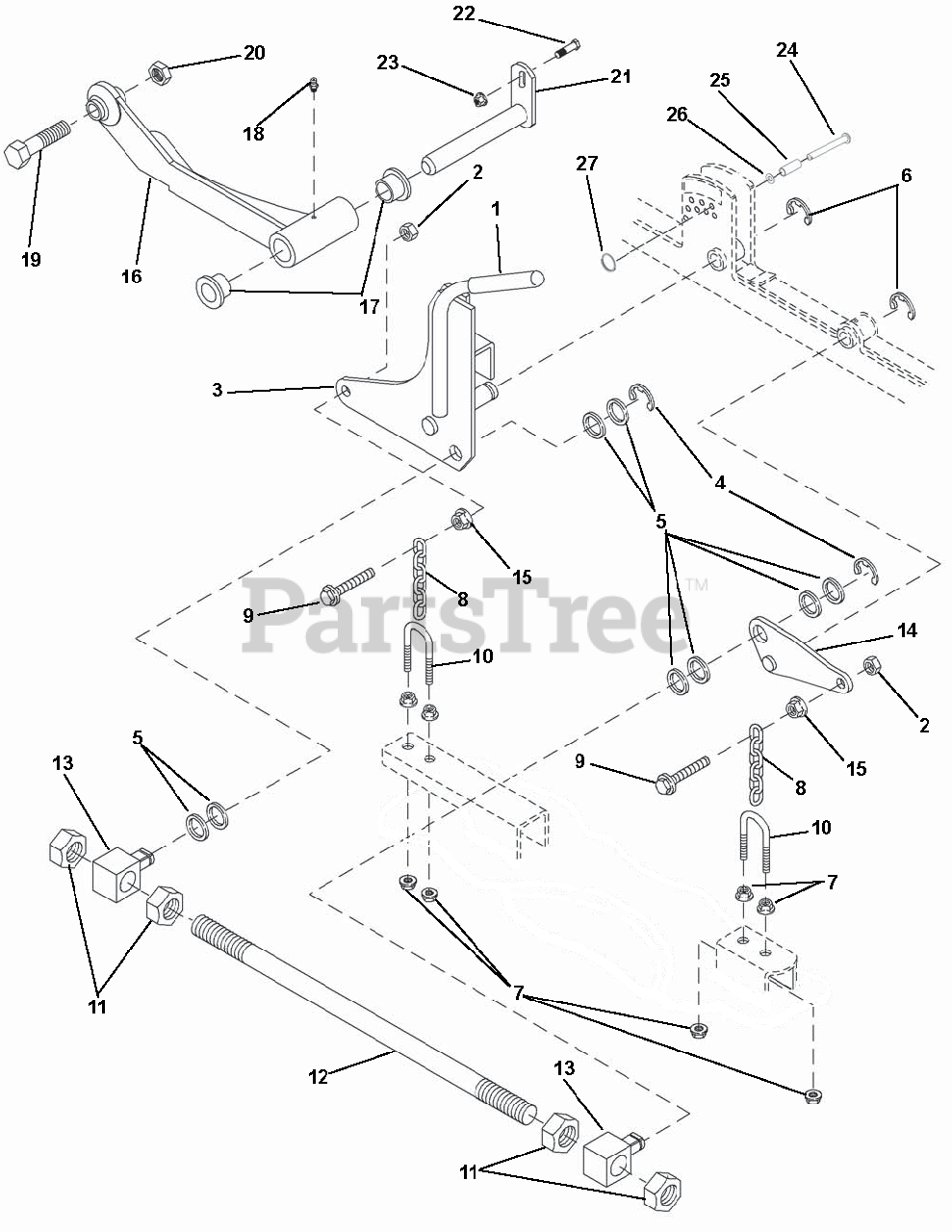

Mower Deck Lift Linkage Parts Diagram

  • Title

1

Gravely D18225

GRIP, CONTROL LEVER

$

$

Not available

2

Gravely 06500034

LOCKNUT, M10X1.50 WHIZ GR10 Y

$

$

Not available

3

Gravely GDA10010

WLDT, LH REAR ARM LIFT

$

$

Not available

Gravely GDA10009

WLDT, RH REAR ARM LIFT

$

$

Not available

4

Gravely P46402

RING, RETAINING

$

$

Not available

5

Gravely 06400029

WASHER,JDS24-.891X1.375X.048-S
(Superseded to 24H1413)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely R27434

RING, RETAINER (E SERIES)

$

$

Not available

7

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 00150749

CHAIN, 6 LINKS

$17.99

$

Usually ships in 4-12 days

0

9

Gravely 05955200

BLT M10 X 1.5X40 YWZC

$

$

Not available

10

Gravely 05900118

U-BOLT

$

$

Not available

11

Gravely 14H1058

NUT,3/4 UNC-2A A17F ZN HEX
(Superseded to 06537600)

$

$

Not available

12

Gravely TCU15817

ROD, DECK LIFT

$

$

Not available

13

Gravely 00200075

SWIVEL, DECK LIFT Y

$

$

Not available

14

Gravely GDA10008

WLDT, LH FRONT LIFT ARM

$

$

Not available

Gravely GDA10007

WLDT, RH FRONT LIFT ARM

$

$

Not available

15

Gravely 06500034

LOCKNUT, M10X1.50 WHIZ GR10 Y

$

$

Not available

16

Gravely TCA14877

ARM, THRUST LH (48")

Note: (994100)

$

$

Not available

Gravely TCA14876

ARM, THRUST RH (48")

Note: (994100)

$

$

Not available

Gravely TCA14879

ARM, THRUST LH (52")

Note: (994103)

$

$

Not available

Gravely TCA14878

ARM, THRUST RH (52")

Note: (994103)

$

$

Not available

17

Gravely M83541

BEARING, FLANGED

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.99

$

In Stock, only 2 left!

0

19

Gravely 05961700

BLT-HEX .75-10X3.00 GR5 YWZC

$3.99

$

Usually ships in 4-12 days

0

20

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

In Stock, Qty 18

0

21

Gravely TCA13292

PIN, WELDED

$

$

Not available

22

Gravely 06226100

BLT-RDHDSQNK M8-1.25X25 YWZC

$

$

Not available

23

Gravely 06541700

NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.99

$

Usually ships in 4-12 days

0

24

Gravely 06800007

PIN, CLEVIS
(Superseded to M137523)

$3.99

$

Usually ships in 4-12 days

0

25

Gravely TCU15892

BUSHING, H.O.C. PIN

$

$

Not available

26

Gravely H143731

PUSHNUT, M12 BOLT RETAINER

$

$

Not available

27

Gravely M88183

RING, LOCKING

$

$

Not available
