994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000501 & Above) Park Brake Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

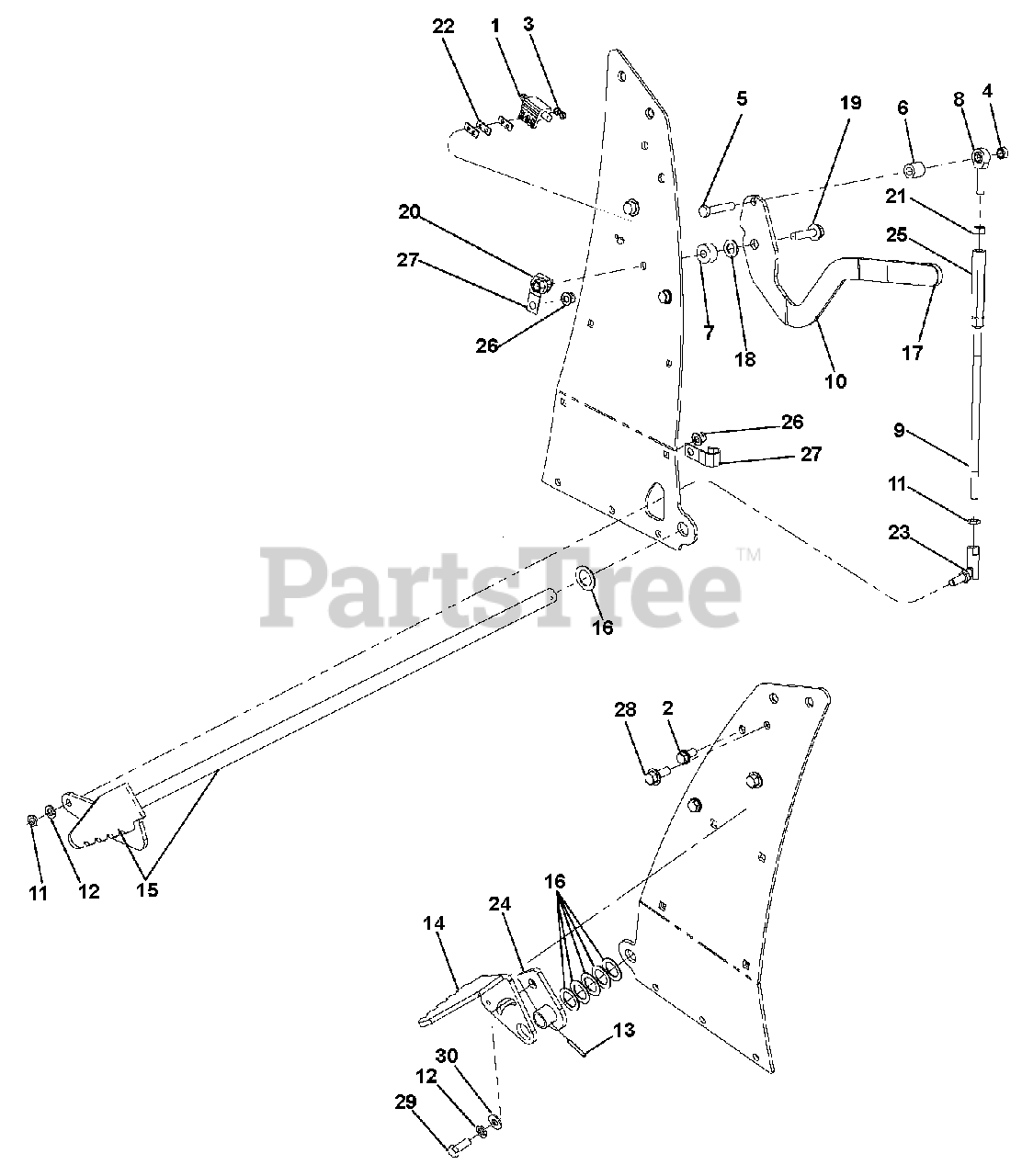

Park Brake Parts Diagram

  • Title

1

Gravely D18038

Switch
(Superseded to 03657100)

$9.99

$

In Stock, Qty 13

0

2

Gravely T34037

Screw, Cap Special

$

$

Not available

3

Gravely 14M7360

Nut, Nyloc M5 x .8

$

$

Not available

4

Gravely K40003

Nut, Lock 3/8

$

$

Not available

5

Gravely 19H1801

Bolt, Hex .38-16 x 2.00

$

$

Not available

6

Gravely TCU12713

Bushing .431 x .750 x .787

$

$

Not available

7

Gravely GDU10037

Bushing Assembly

$

$

Not available

8

Gravely AM105809

End, LH Tie Rod

$

$

Not available

9

Gravely 04196900

Rod, Threaded .38-24

$

$

Not available

10

Gravely 04196751

Lever, Brake Handle

$

$

Not available

11

Gravely 14H846

Nut, .38 UNF Hex Grade 5

$

$

Not available

12

Gravely 06308800

Locking Washer .38 x .094 Regular
(Superseded to 06300116)

$1.49

$

In Stock, Qty 15

0

13

Gravely 34H268

Pin, Spring

$

$

Not available

14

Gravely 04196851

Arm, Right Hand Brake

$

$

Not available

15

Gravely 04197951

Weldment, Brake Shaft

$93.99

$

Usually ships in 4-12 days

0

16

Gravely 24H1413

Washer, Steel JDS24 .891 x 1.375 x .048

$3.99

$

Usually ships in 4-12 days

0

17

Gravely D18079

Grip

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 24H1341

Washer, Steel JDS24 .531 x .938 x .060

$8.49

$

Usually ships in 4-12 days

0

19

Gravely 19M7804

Screw, Hex, JDS123, M10 x 1.5 x 40

$

$

Not available

20

Gravely 14M7518

Locknut, Flat M10 x 1.5-10

$3.99

$

Usually ships in 4-12 days

0

21

Gravely 14H1063

Nut, Hex

$

$

Not available

22

Gravely M94087

Strip, Back-Up

$

$

Not available

23

Gravely 00191186

Ball Joint, 3/8 x 24

$

$

Not available

24

Gravely 04181951

Weldment, Torque Arm

$

$

Not available

25

Gravely TCU20955

Turnbuckle

$

$

Not available

26

Gravely 14M7396

Locknut, M8 x 1.25 Nyloc Flange 10Y

$

$

Not available

27

Gravely AH89557

P-Clip, .500 Insulated

$5.49

$

In Stock, only 1 left!

0

28

Gravely 19M7785

Screw, Hex, Flat M10 x 1.5 x 25

$

$

Not available

29

Gravely 05948700

Bolt-Hex .38-16 x 1.00
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 06435700

Washer, Flat Steel, .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0
