994100 (1948 FL) - Gravely Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki (SN: 000501 & Above) Park Brake Parts Diagram

Pro-Stance 48" Stand-On Mower, Floating Deck, 19hp Kawasaki

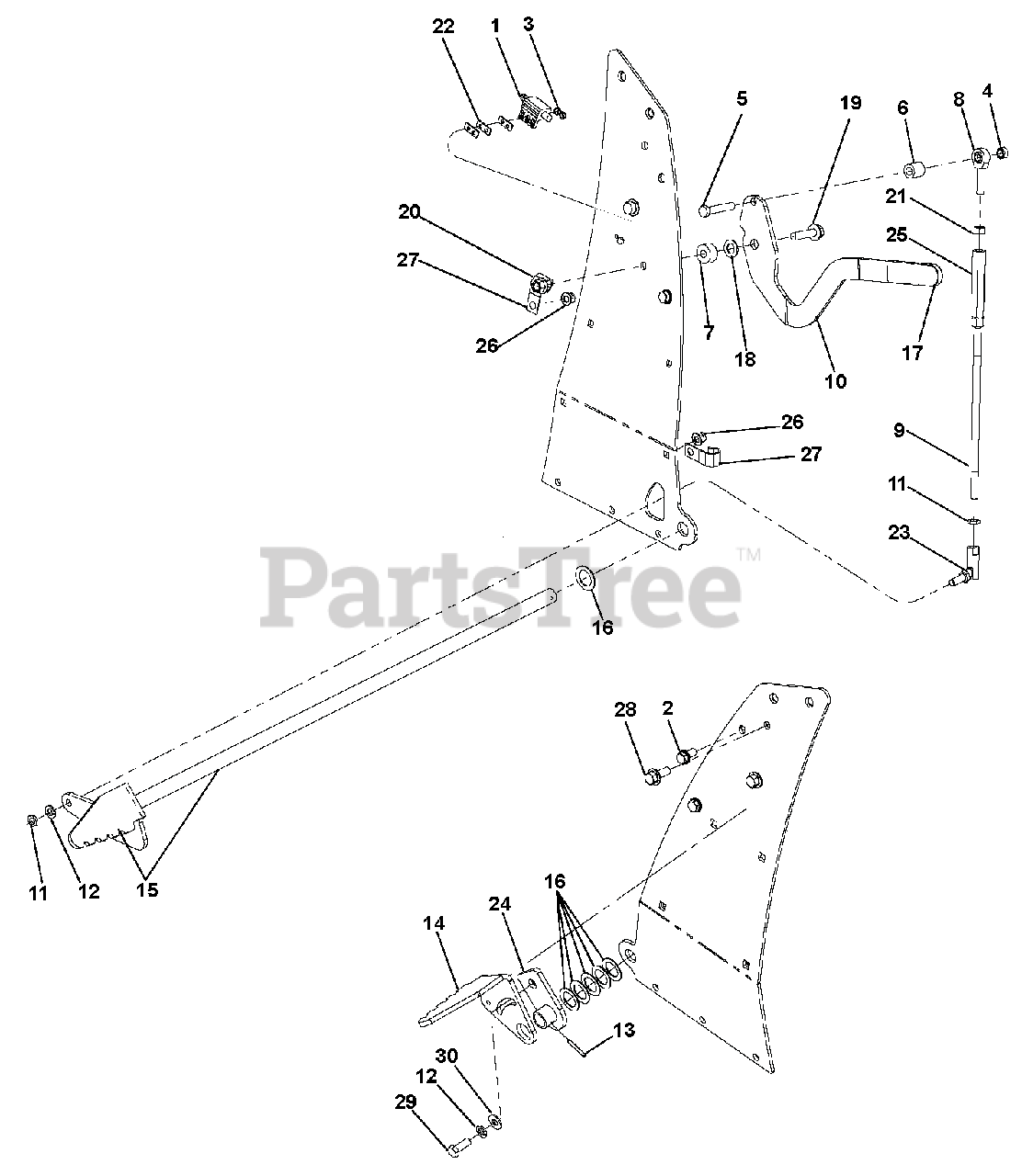

Park Brake Parts Diagram

  • Title

1

Gravely D18038

SWITCH (N.0.)
(Superseded to 03657100)

$10.99

$

In Stock, Qty 13

0

2

Gravely T34037

SCREW, CAP SPECIAL

$

$

Not available

3

Gravely 14M7360

LOCKNUT, ISO7040-5-8-ZN

$

$

Not available

4

Gravely K40003

NUT, 3/8 LOCK

$

$

Not available

5

Gravely 19H1801

BOLT, 3/8 X 2.00 A17D ZINC HEX

$

$

Not available

6

Gravely TCU12713

BUSHING, .431X.750X.787 Y

$

$

Not available

7

Gravely GDU10037

BUSHING

$

$

Not available

8

Gravely AM105809

END, LH TIE ROD

$

$

Not available

9

Gravely 04196900

ROD, THREADED .38-24

$

$

Not available

10

Gravely 04196751

LEVER, BRAKE HANDLE

$

$

Not available

11

Gravely 14H846

NUT, 3/8 UNF HEX GR 5 ZN

$

$

Not available

12

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 34H268

PIN, SPRING

$

$

Not available

14

Gravely 04196851

ARM, RH BRAKE

$

$

Not available

15

Gravely 04197951

WLDT, BRAKE SHAFT

$97.99

$

Usually ships in 4-12 days

0

16

Gravely 24H1413

WASHER,JDS24-.891X1.375X.048-S

$4.99

$

Usually ships in 4-12 days

0

17

Gravely D18079

GRIP, PVC .250 X 1.00 X 3.63

$4.99

$

Usually ships in 4-12 days

0

18

Gravely 24H1341

WASHER,JDS24,.531X.938X.060-ST

$9.49

$

Usually ships in 4-12 days

0

19

Gravely 19M7804

SCREW,HEX,FL,JDS123,M10X1.5X40

$

$

Not available

20

Gravely 14M7518

LOCKNUT,FL,ISO7044,M10X1.5-10-

$4.99

$

Usually ships in 4-12 days

0

21

Gravely 14H1063

NUT, HEX

$

$

Not available

22

Gravely M94087

STRIP, BACK-UP Y

$

$

Not available

23

Gravely 00191186

BALL JOINT, 3/8X24

$

$

Not available

24

Gravely 04181951

WLDT, TORQUE ARM

$

$

Not available

25

Gravely TCU20955

TURNBUCKLE

$

$

Not available

26

Gravely 14M7396

LOCKNUT, M8X1.25 NYLOC FLG 10Y

$

$

Not available

27

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

Usually ships in 4-12 days

0

28

Gravely 19M7785

SCREW,HEX,FL,JDS123,M10X1.5X25

$

$

Not available

29

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

30

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$2.49

$

In Stock, Qty 20+

0
