994101 (1952 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 & Above) Deck Assembly - 52inch Decks Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 19hp Kawasaki

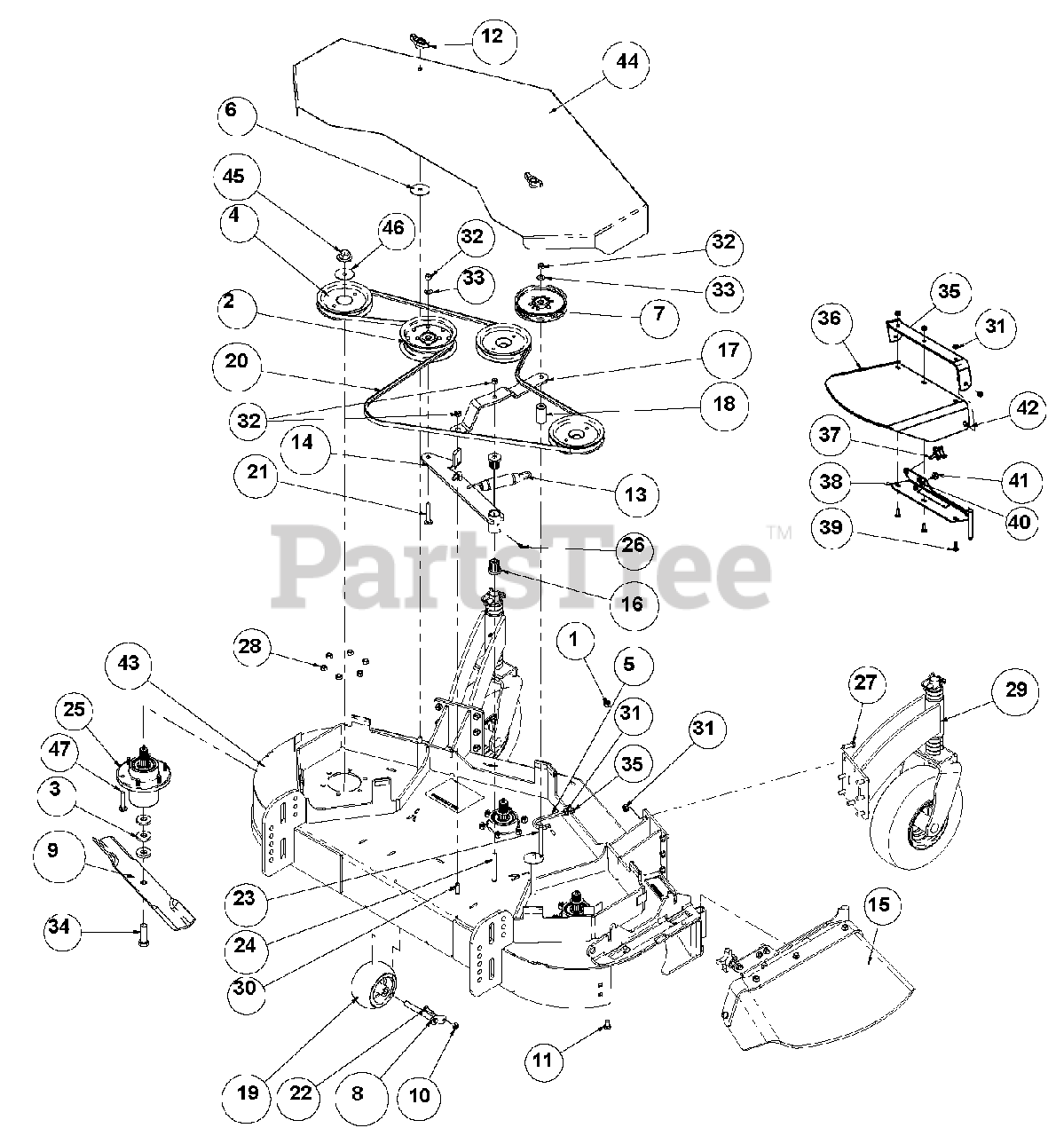

Deck Assembly - 52inch Decks Parts Diagram

  • Title

1

Gravely 00968087

Lochnut, .38-16 Nyloc

$

$

Not available

2

Gravely D18032

Pulley, Flat 5.0 x .38 W/Bearing
(Superseded to 07346700)

$82.99

$

In Stock, Qty 6

0

3

Gravely 06400913

Washer, Blade
(Superseded to 06401033)

$7.49

$

In Stock, only 4 left!

0

4

Gravely 03399702

Pulley, Spline Spindle LSE

$76.99

$

In Stock, only 4 left!

0

5

Gravely D23058

J-Bolt, 3/8-16 x 4.00 Y

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 06400030

Washer, .402 x 2.00 x .055 Fend Y

$4.99

$

Usually ships in 4-12 days

0

7

Gravely D28050

Pulley, FLAT 5.00 x .375 W/Bearing
(Superseded to 07352400)

$40.99

$

In Stock, Qty 20+

0

8

Gravely GDA10103

Pivot, Retainer Weld

$56.99

$

In Stock, Qty 7

0

9

Gravely GDU10231

Blade, 18"

$31.99

$

In Stock, Qty 16

0

10

Gravely 06500035

Nut-1/4" Flange Prevailing Tor

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 00963033

Bolt, .38-16 x .750 CRG 5

$

$

Not available

12

Gravely M119352

Knob, Locking

$3.99

$

In Stock, only 4 left!

0

13

Gravely 08300040

Spring, Tension
(Superseded to N242189)

$10.99

$

Usually ships in 4-12 days

0

14

Gravely TCA15346

Arm, Idler

$145.99

$

In Stock, only 1 left!

0

15

Gravely 56155053

Assembly, Discharge Shield

$203.99

$

In Stock, only 1 left!

0

16

Gravely TCU14540

Bearing, FLG M10 x M25 x M27 Fluted

$18.99

$

In Stock, only 3 left!

0

17

Gravely TCU18344

Strap, Idler Pulley

$40.99

$

Usually ships in 4-12 days

0

18

Gravely TCU18742

Spacer

$19.99

$

Usually ships in 4-12 days

0

19

Gravely TCU18744

Wheel, Gage

$14.99

$

In Stock, only 4 left!

0

20

Gravely TCU18848

BELT, HB 109.3 EL AMD

$108.99

$

In Stock, only 2 left!

0

21

Gravely 06213400

Bolt, 3/8-16 x 2.25 CRG 5 Y
(Superseded to 06200301)

$4.99

$

In Stock, Qty 20+

0

22

Gravely 06219800

Bolt, 1/4-20 x 1.00 SQU SN Y
(Superseded to 06200402)

$2.49

$

Usually ships in 4-12 days

0

23

Gravely 05900106

Bolt, 3/8 x 4 Short Neck Round Head

$

$

Not available

24

Gravely 05900108

Bolt, 3/8-16 x 3.50 CRG 5 Y

$

$

Not available

25

Gravely 00200262

Assembly, Spindle Housing

$294.99

$

In Stock, only 1 left!

0

26

Gravely 00959995

Fitting, 1/4-28 Straight Grease Zerk

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 05900120

Bolt, 3/8-16 x 1.00 Hex 5 Y
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 06529200

Nut, 3/8-16 STD Hex GR5 Y
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

29

Gravely N/A

Assembly, Wheel & Strut (see page 26 for parts)

Note: (see page 26 for parts)

$

$

Currently unavailable

30

Gravely 06224100

Bolt, 3/8-16 x 1.25 CRG 5 Y
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 06534900

Locknut, 3/8-16 Whiz Y
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 06508000

Locknut, 3/8-16 Crown Y

$4.99

$

Usually ships in 4-12 days

0

33

Gravely 06436200

Washer, .406 x .813 x x .065 Flat Y
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 05970002

Bolt, Hex .62-11 x 2.00 Grade 8
(Superseded to 05901725)

$6.49

$

In Stock, only 2 left!

0

35

Gravely 03983853

Strap, Rubber Discharge

$63.99

$

Usually ships in 4-12 days

0

36

Gravely 04044200

Shield, Rubber Discharge

$70.99

$

Usually ships in 4-12 days

0

37

Gravely 03820400

Knob, 3/8 x 1.25-4 Prong

$10.99

$

In Stock, only 2 left!

0

38

Gravely 03981953

Weldment, Discharge

$90.99

$

Usually ships in 4-12 days

0

39

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

40

Gravely 00964019

Locknut, 5/16-18 Whiz
(Superseded to 06530400)

$1.99

$

In Stock, Qty 20+

0

41

Gravely 07533600

Bumper, Rubber

$12.99

$

In Stock, only 3 left!

0

42

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

43

Gravely 03761801

Weldment, 52 Gravely Deck w/Decals

$

$

Not available

44

Gravely 03761953

Weldment, 52 Gravely Deck Shield w/Decal

$

$

Not available

45

Gravely 00964024

Locknut, 3/4-16 Crown
(Superseded to 06500031)

$3.99

$

In Stock, Qty 20+

0

46

Gravely 03399703

Washer, .75 x 1.312 x .120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 10

0

47

Gravely 05900105

Bolt, .38-16 x 1.25 Round Head Square Neck
(Superseded to 00200045)

$7.49

$

Usually ships in 4-12 days

0
