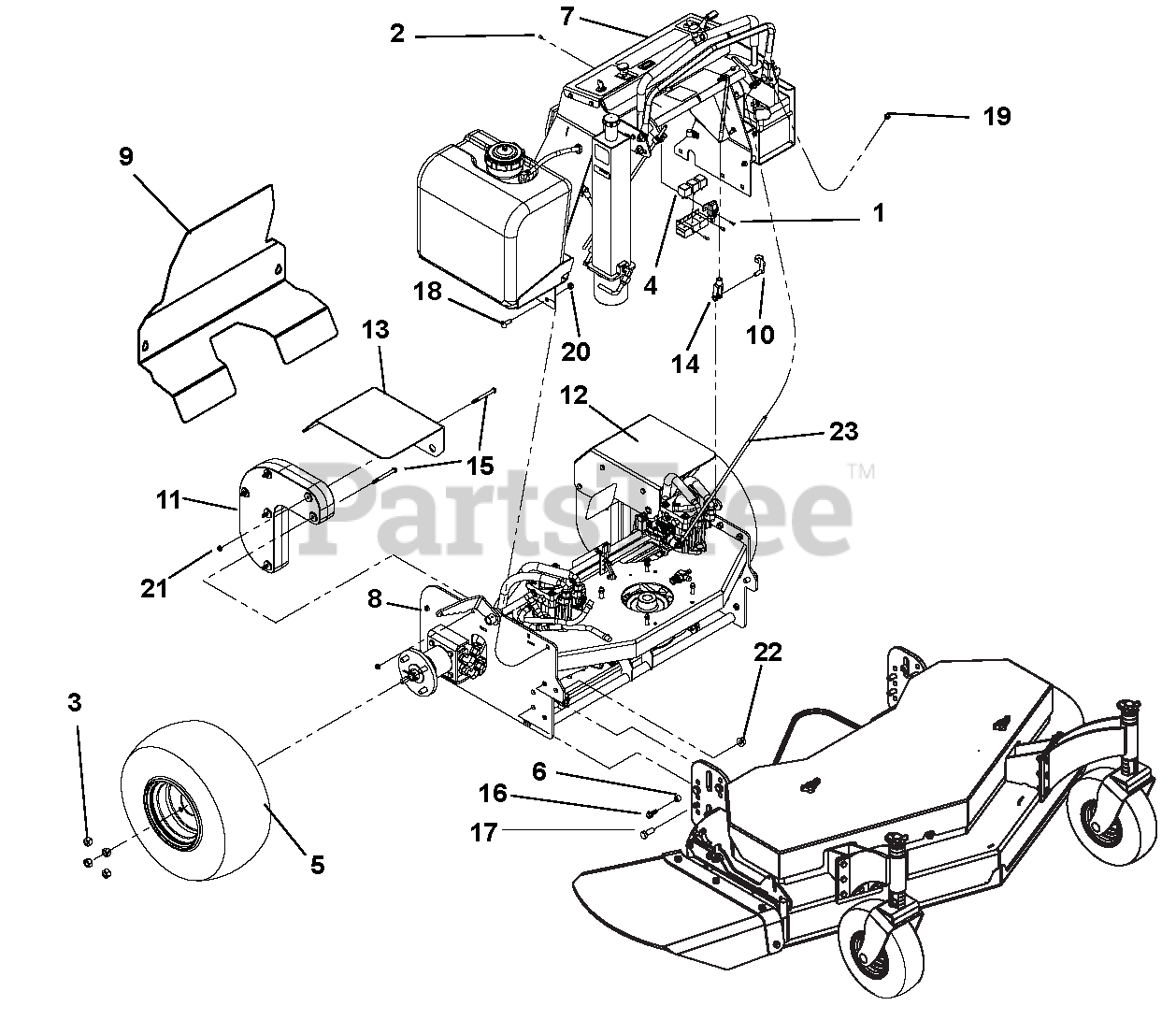

994101 (1952 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 19hp Kawasaki (SN: 000101 & Above) Main Frame Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 19hp Kawasaki

Main Frame Assembly Parts Diagram

  • Title

1

Gravely 06200013

BLT-HEX 8-32 X .5 YWZC

$

$

Not available

2

Gravely 06531300

NUT-LK-NYL 8-32 W/INSTR YWZC

$0.99

$

Usually ships in 4-12 days

0

3

Gravely 00960526

NUT, 1/2-20 LUG C
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 00102770

RELAY, ISO MINI ELEC.

$27.99

$

Usually ships in 4-12 days

0

5

Gravely 00200779

ASSY, TIRE/WHL 18/8.5X8 SLV

$

$

Not available

6

Gravely 00200672

SPACER, .625X.120X.400 Y

$14.99

$

Usually ships in 4-12 days

0

7

Assembly, Console (See Console Components on page 23.)

Note: (See Console Components on page 23.)

$

$

Not available

8

Gravely 03731102

POWER UNIT GRAVELY 48/52

Note: (See Engine, Hydraulic and Mainframe Assembly on page 10.)

$

$

Not available

9

Gravely 03732620

FOOT GUARD W/DECALS GRAVELY

$

$

Not available

10

Gravely 06700005

PIN, CVS SPG 3/8" YOKE SPEC Y
(Superseded to 00200658)

$

$

Not available

11

Gravely 00200775

WEIGHT, CAST DRILLED

$

$

Not available

12

Gravely 00200180

FENDER, LH GRAVELY

$

$

Not available

13

Gravely 00200181

FENDER, RH GRAVELY
(Superseded to 00200751)

$

$

Not available

14

Gravely 08800400

CLEVIS, .38-24 ADJ.

$11.99

$

Usually ships in 4-12 days

0

15

Gravely 05961100

BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 00960044

BOLT, 3/8-16X1.00 FGH 8 Y

$2.99

$

Usually ships in 4-12 days

0

17

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

18

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06529500

NUT-HEX .312-24 YWZC
(Superseded to 06500939)

$2.49

$

Usually ships in 4-12 days

0

20

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

22

Gravely 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$4.99

$

Usually ships in 4-12 days

0

23

Gravely D13029

ROD, CONTROL 5/16X26 Y

$44.99

$

Usually ships in 4-12 days

0
