994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000101 - 000206) Clutch, Pump Components And Foot Plate Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

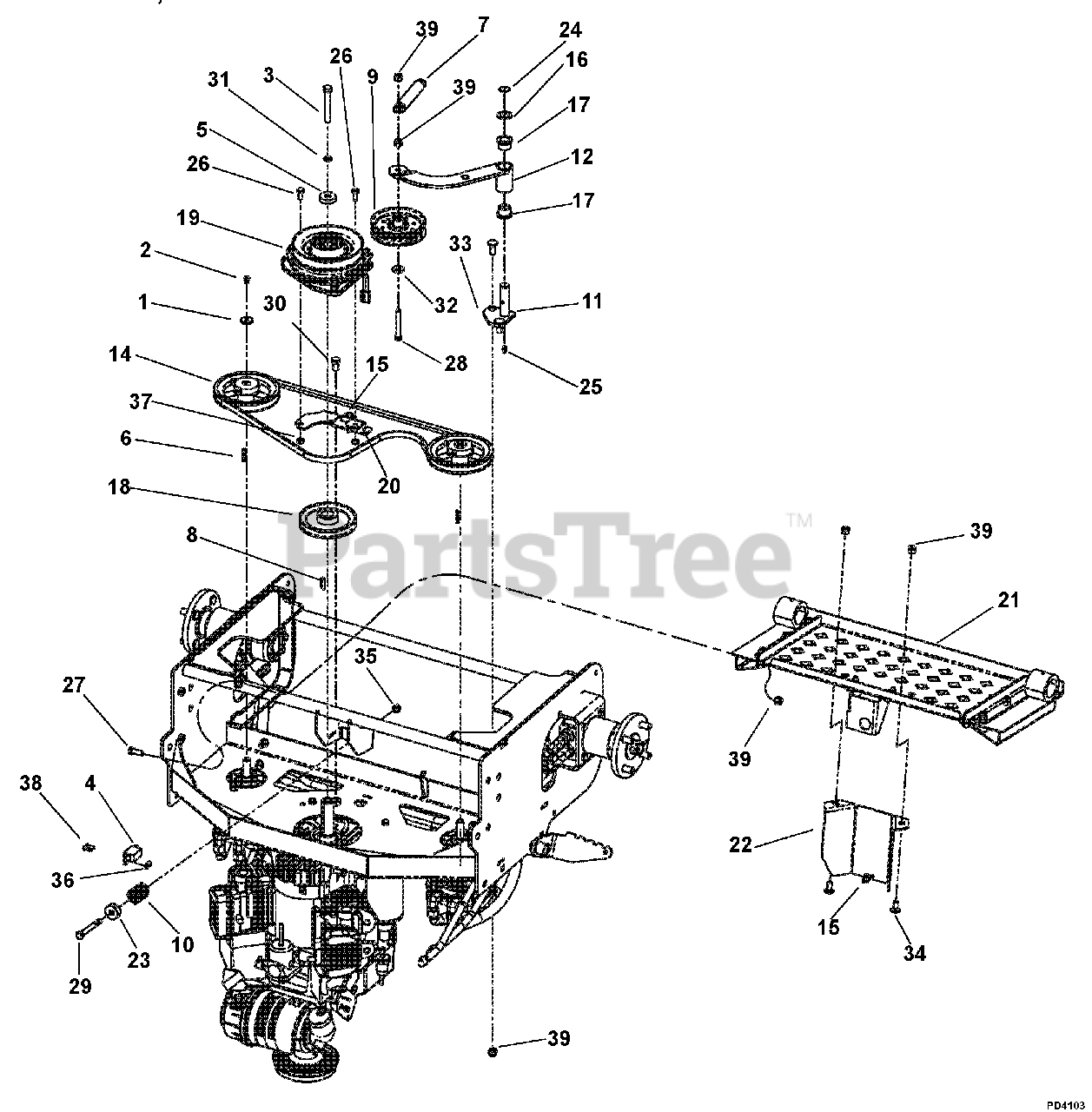

Clutch, Pump Components And Foot Plate Assembly Parts Diagram

  • Title

1

Gravely 06308000

Washer, Locking .250 x .077 Heavy

$0.99

$

Usually ships in 4-12 days

0

2

Gravely 05900124

Bolt, M6 x 1.00 x 10 Hex 8.8

$

$

Not available

3

Gravely 05965700

Bolt, Hex .44 x 3.00 Grade 5
(Superseded to 05900037)

$6.99

$

In Stock, only 4 left!

0

4

Gravely 00875300

Switch
(Superseded to D18038)

$4.99

$

Usually ships in 4-12 days

0

5

Gravely 00875500

Spacer, PTO Clutch
(Superseded to D18056)

$20.99

$

Usually ships in 4-12 days

0

6

Gravely 06600005

Key, Special M5 x 28
(Superseded to D18067)

$

$

Not available

7

Gravely 08300037

Spring, Idler
(Superseded to D18071)

$11.99

$

Usually ships in 4-12 days

0

8

Gravely 06600007

Key, .250 x .250 x .995 TPR
(Superseded to D18145)

$7.49

$

Usually ships in 4-12 days

0

9

Gravely 07300111

Idler
(Superseded to 07350100)

$48.99

$

In Stock, Qty 20+

0

10

Gravely 08300038

Spring
(Superseded to D38128)

$18.99

$

Usually ships in 4-12 days

0

11

Gravely 07300114

Idler Post

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 07300115

Idler Arm

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 07200118

V-Belt
(Superseded to GDU10025)

$45.99

$

In Stock, only 2 left!

0

14

Gravely 07300116

Pulley, RH Pump, Set Screw Included
(Superseded to TCA15316)

$47.99

$

Usually ships in 4-12 days

0

15

Gravely 07519900

Tie Wrap, Black

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 05500132

Bushing, Machine .750 x 1.25 x .048
(Superseded to 00150052)

$4.99

$

Usually ships in 4-12 days

0

17

Gravely 05501700

Bearing, Flange .750 x 1.00 x .750 Bracket
(Superseded to 00191179)

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 07300118

Pulley, V-Belt 4.78PD x 1.000
(Superseded to 00200318)

$56.99

$

Usually ships in 4-12 days

0

19

Gravely 00899800

Clutch Assembly, Ogura
(Superseded to 00200665)

$387.99

$

In Stock, only 1 left!

0

20

Gravely 00899900

Plate, Clutch Dog
(Superseded to 00200666)

$51.99

$

Usually ships in 4-12 days

0

21

Gravely N/A

Assembly, Foot Plate

$

$

Currently unavailable

22

Gravely 00941500

Cover, Operator Presence Control

$9.49

$

Usually ships in 4-12 days

0

23

Gravely 06400027

Washer, Spring
(Superseded to 00200770)

$

$

Not available

24

Gravely 05701200

Ring, Retaining, External .750 x .042
(Superseded to 05700135)

$2.49

$

In Stock, Qty 8

0

25

Gravely 07037900

Grease Zerk, 1/4-28 Straight .69
(Superseded to 00959995)

$3.49

$

Usually ships in 4-12 days

0

26

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 12

0

27

Gravely 05948700

Bolt, Hex .31-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 05958400

Bolt, Hex .31-16 x 2.50 Grade 5
(Superseded to 05901812)

$3.99

$

In Stock, Qty 20+

0

29

Gravely 05961100

Bolt, Hex .31-16 x 3.25 Grade 5
(Superseded to 05901817)

$3.99

$

In Stock, only 1 left!

0

30

Gravely 05900121

Bolt, 7/16-14 x .750 Hex 5

$

$

Not available

31

Gravely 06435700

Washer, Flat, Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 14

0

32

Gravely 06435900

Washer, Flat, Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

33

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.49

$

In Stock, Qty 19

0

34

Gravely 06223900

Bolt, Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

Usually ships in 4-12 days

0

35

Gravely 06529200

Nut, Hex .31-16
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

36

Gravely 06536000

Nut. Locking, Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, only 4 left!

0

37

Gravely 06530200

Nut, Locking, Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

38

Gravely 06111100

Screw, Machine 10-24 x .625 P/HD

$0.99

$

In Stock, Qty 16

0

39

Gravely 06535800

Nut, Locking, Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0
