994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000101 - 000206) Console And Battery Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

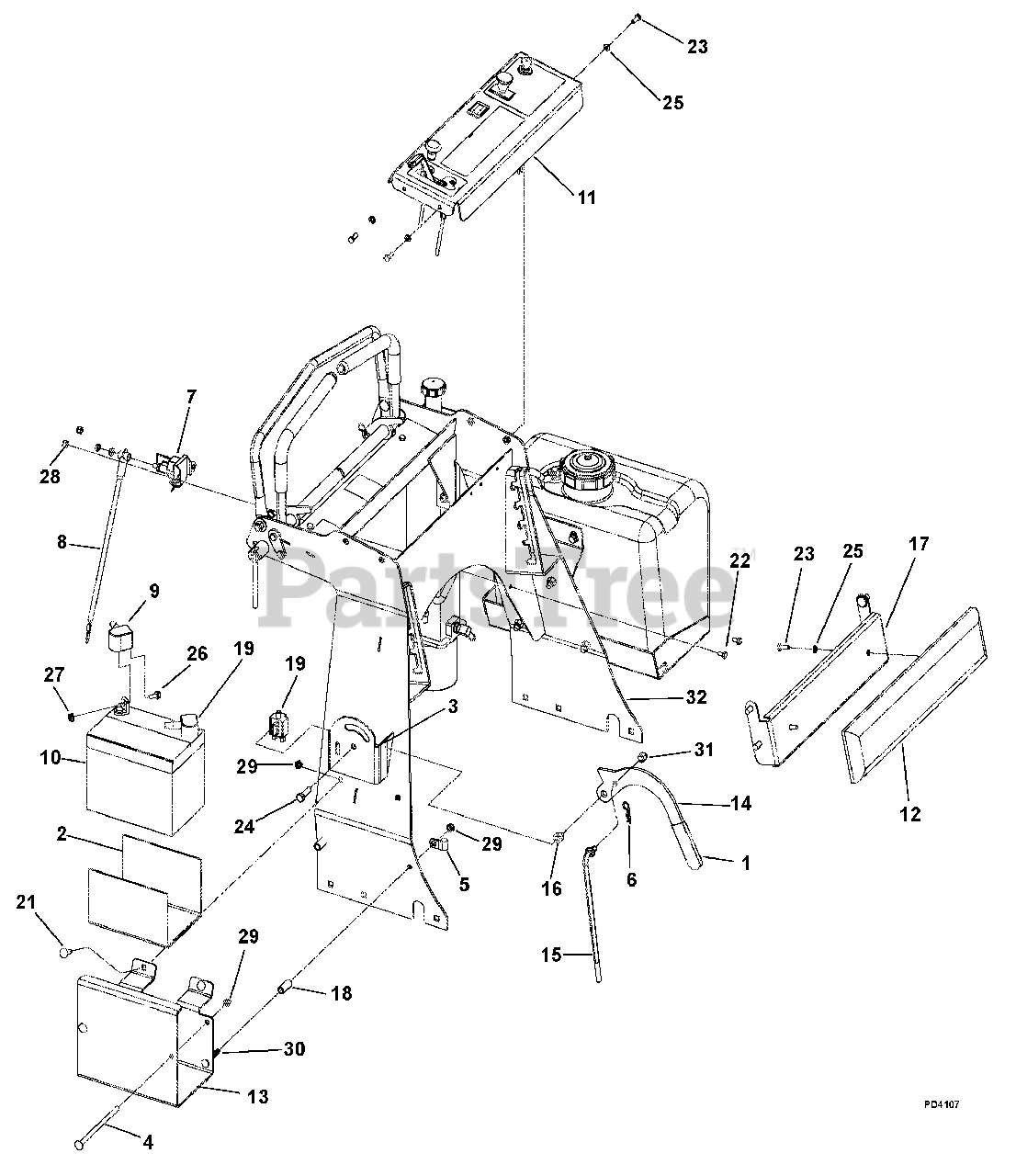

Console And Battery Assembly Parts Diagram

  • Title

1

Gravely 00875800

GRIP
(Superseded to D18079)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 00787200

DECAL, POWDER RIVER CONTROLS

$

$

Not available

3

Gravely 00884900

DECAL, PARK BRAKE

$

$

Not available

4

Gravely 05900107

CAP SCREW, 5/16" X 6"
(Superseded to 06200128)

$7.49

$

Usually ships in 4-12 days

0

5

Gravely 00888500

P-CLIP, .500 INSULATED
(Superseded to 06900512)

$

$

Not available

6

Gravely 06703600

PIN-HAIR INT .09X1.65 PL
(Superseded to 00121080)

$2.99

$

In Stock, Qty 8

0

7

Gravely 03551000

SOLENOID

$43.99

$

In Stock, Qty 6

0

8

Gravely 00872300

STARTER CABLE
(Superseded to 00180842)

$15.99

$

Usually ships in 4-12 days

0

9

Gravely 00888800

CABLE, BATTERY STARTER 48"
(Superseded to 00181148)

$

$

Not available

10

Battery

$

$

Not available

11

Assembly, Control Panel

$

$

Not available

12

Gravely 00896400

PAD, THIGH
(Superseded to 00200606)

$

$

Not available

13

Gravely 00942800

TRAY, BATTERY S/0ECAL S/0

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 00896800

LEVER, BRAKE
(Superseded to 00200614)

$

$

Not available

15

Gravely 00896900

LINK, BRAKE Y
(Superseded to 00200615)

$32.99

$

Usually ships in 4-12 days

0

16

Gravely 05500131

BUSHING, BRAKE PIVOT Y
(Superseded to 00200671)

$

$

Not available

17

Gravely 00900000

WLDT, THIGH PAD BRACKET
(Superseded to 00200690)

$65.99

$

Usually ships in 4-12 days

0

18

Gravely 05500135

BUSHING, .364X.540X1.250 Y

$

$

Not available

19

Gravely 00942200

SWITCH, NO-NO-NC GREY PLUNGER
(Superseded to 00200705)

$17.99

$

Usually ships in 4-12 days

0

20

Gravely 00888800

CABLE, BATTERY STARTER 48"
(Superseded to 00181148)

$

$

Not available

21

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 05947900

BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, only 3 left!

0

23

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

24

Gravely 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

26

Gravely 05900122

BOLT, 1/4-20X.625 WSH Y

$

$

Not available

27

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, only 3 left!

0

28

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

29

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

30

Gravely 06225800

BLT-RDHDSQNKFT .31-18X2.0 G5YZ

$4.99

$

Usually ships in 4-12 days

0

31

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

32

Gravely 00940400

WLDT, CONSOLE W/DECALS S/O
(Superseded to 00892900)

$146.99

$

Usually ships in 4-12 days

0
