994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000101 - 000206) Deck Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

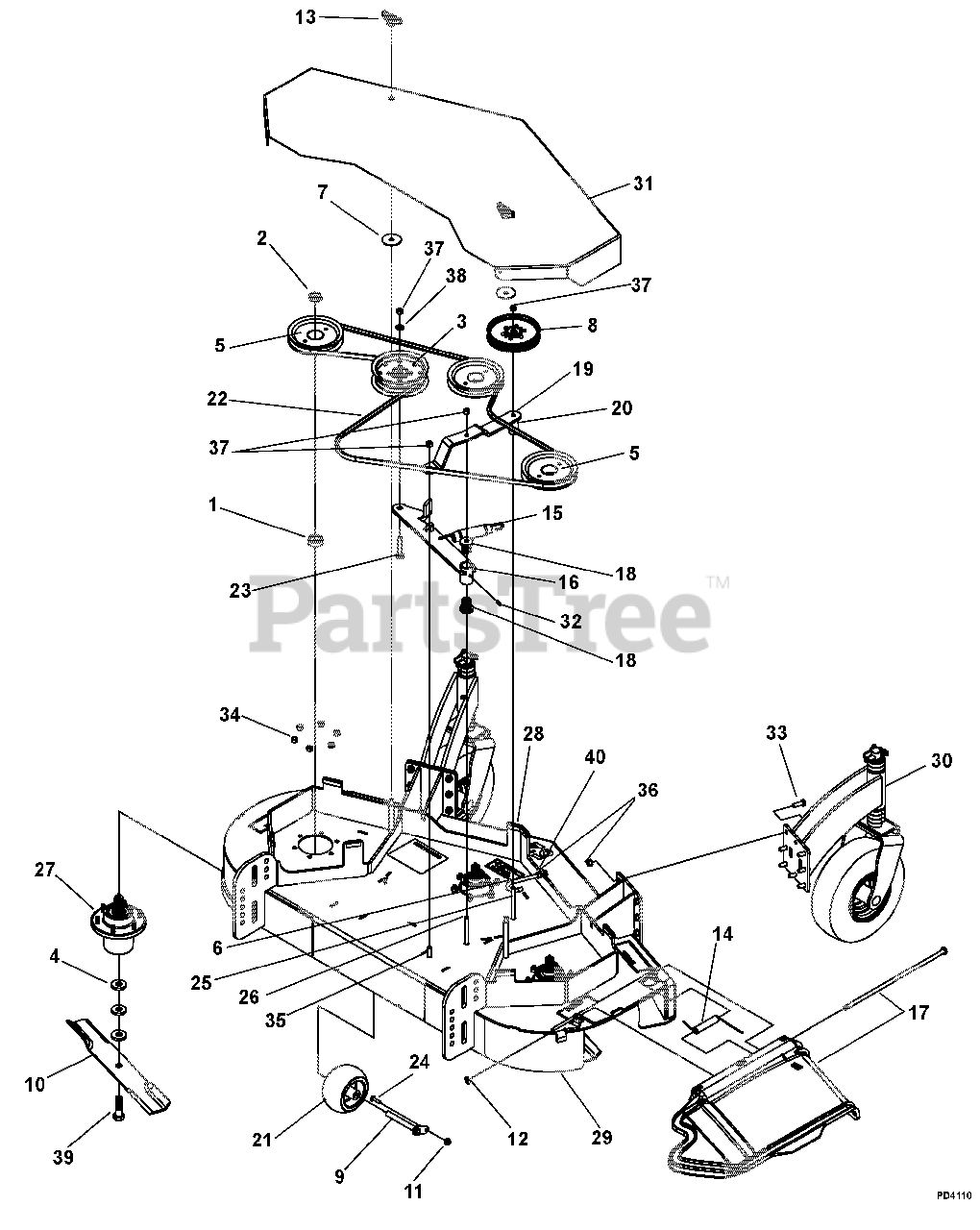

Deck Assembly Parts Diagram

  • Title

1

Gravely 00874200

SPACER, PULLEY
(Superseded to D13024)

$14.99

$

In Stock, only 2 left!

0

2

Gravely 06500027

NUT, PULLEY (SPECIAL)
(Superseded to D13055)

Note: (Special)

$

$

Not available

3

Gravely 07300107

PULLEY, FLAT TENSION IDLER
(Superseded to D18032)

$82.99

$

In Stock, Qty 9

0

4

Gravely 00875400

SPACER, BLADE BOLT
(Superseded to D18055)

$7.49

$

In Stock, Qty 13

0

5

Gravely 07300108

PULLEY, CUTTER HOUSING 52" DEC
(Superseded to 07329667)

$98.99

$

Usually ships in 4-12 days

0

6

Gravely 00876900

J-HOOK
(Superseded to D23058)

$6.49

$

In Stock, only 2 left!

0

7

Gravely 06400030

WSHR-FL-STL .402X2.00X.055 YWZ

$

$

Not available

8

Gravely 07300112

PULLEY, FLAT BLADE-TO-BLADE
(Superseded to D28050)

$

$

Not available

9

Gravely 00878000

PIVOT, ANTI-SCALP ROLLER

$

$

Not available

10

Gravely 00878200

18.0" BLADE, 52" DECK
(Superseded to GDU10231)

$31.99

$

In Stock, Qty 20+

0

11

Gravely 06500035

NUT-1/4" FLANGE PREVAILING TOR

$2.49

$

Usually ships in 4-12 days

0

12

Gravely 06900107

CLIP, RETAINER

$

$

Not available

13

Gravely 00955100

KNOB, 3/8-16 INSERT
(Superseded to M119352)

$3.99

$

In Stock, only 4 left!

0

14

Gravely 08300039

SPRING, TORSIONAL DISCHARGE CH
(Superseded to M132768)

$9.99

$

In Stock, only 1 left!

0

15

Gravely 08300040

SPRING, DECK BELT TENSION
(Superseded to N242189)

$10.99

$

Usually ships in 4-12 days

0

16

Gravely 07300117

ARM, IDLER ENGINE-TO-BLADE
(Superseded to TCA15346)

$145.99

$

In Stock, only 3 left!

0

17

Gravely 00874000

DISCHARGE CHUTE, 52" & 61" DEC
(Superseded to TCA16387)

$37.99

$

In Stock, only 2 left!

0

18

Gravely 05500128

BUSHING
(Superseded to TCU14540)

$18.99

$

In Stock, Qty 6

0

19

Gravely 00949900

STRAP, IDLER PULLEY
(Superseded to TCU18344)

$40.99

$

Usually ships in 4-12 days

0

20

Gravely 00886100

SPACER, BLADE-TO-BLADE PULLEY
(Superseded to TCU18742)

$19.99

$

Usually ships in 4-12 days

0

21

Gravely 07100327

WHEEL, GAGE, 48" AND 52" DECK
(Superseded to TCU18744)

$14.99

$

In Stock, Qty 14

0

22

Gravely 07200120

BELT, ENGINE-TO-BLADES, 52"DEC
(Superseded to TCU18848)

$108.99

$

Usually ships in 4-12 days

0

23

Gravely 06213400

BLT-RDHDSQNK .38-16X2.25 G5YZ
(Superseded to 06200301)

$4.99

$

In Stock, Qty 11

0

24

Gravely 06219800

BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

25

Gravely 05900106

BOLT, 3/8-16 X 3-3/4 CHCS

$

$

Not available

26

Gravely 05900108

BOLT, 3/8-16 X 4.00 CHCS

$

$

Not available

27

Gravely 00872700

SPINDLE ASSEMBLY, INCLUDES ITE
(Superseded to 00200262)

$294.99

$

Usually ships in 4-12 days

0

28

Trim, 1/4

$

$

Not available

29

Gravely 00940500

WLDT, 52" DECK W/DECALS S/O
(Superseded to 00200185)

$

$

Not available

30

Assembly, Wheel and Strut

$

$

Not available

31

Gravely 00959100

COVER, 19HP FIXED DECK

Note: (994101)

$59.99

$

Usually ships in 4-12 days

0

Gravely 00959200

COVER, 23HP FIXED DECK

Note: (994102)

$52.99

$

Usually ships in 4-12 days

0

32

Gravely 07037900

GREASE ZERK, 1/4-28 STR .69 LG
(Superseded to 00959995)

$3.99

$

In Stock, only 2 left!

0

33

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

34

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

35

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

36

Gravely 06543900

NUT-SPIRALOCK-FLG .50-13 PLN

$7.49

$

In Stock, only 4 left!

0

37

Gravely 06543800

NUT, .38-16 LOW CROWN LK ACORN
(Superseded to 06534900)

$1.99

$

In Stock, Qty 20+

0

38

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 05930700

BLT-HEX .62-11X2.25 YWZC GR8

$3.99

$

Usually ships in 4-12 days

0

40

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0
