994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000101 - 000206) Engine, Hydraulic And Mainframe Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

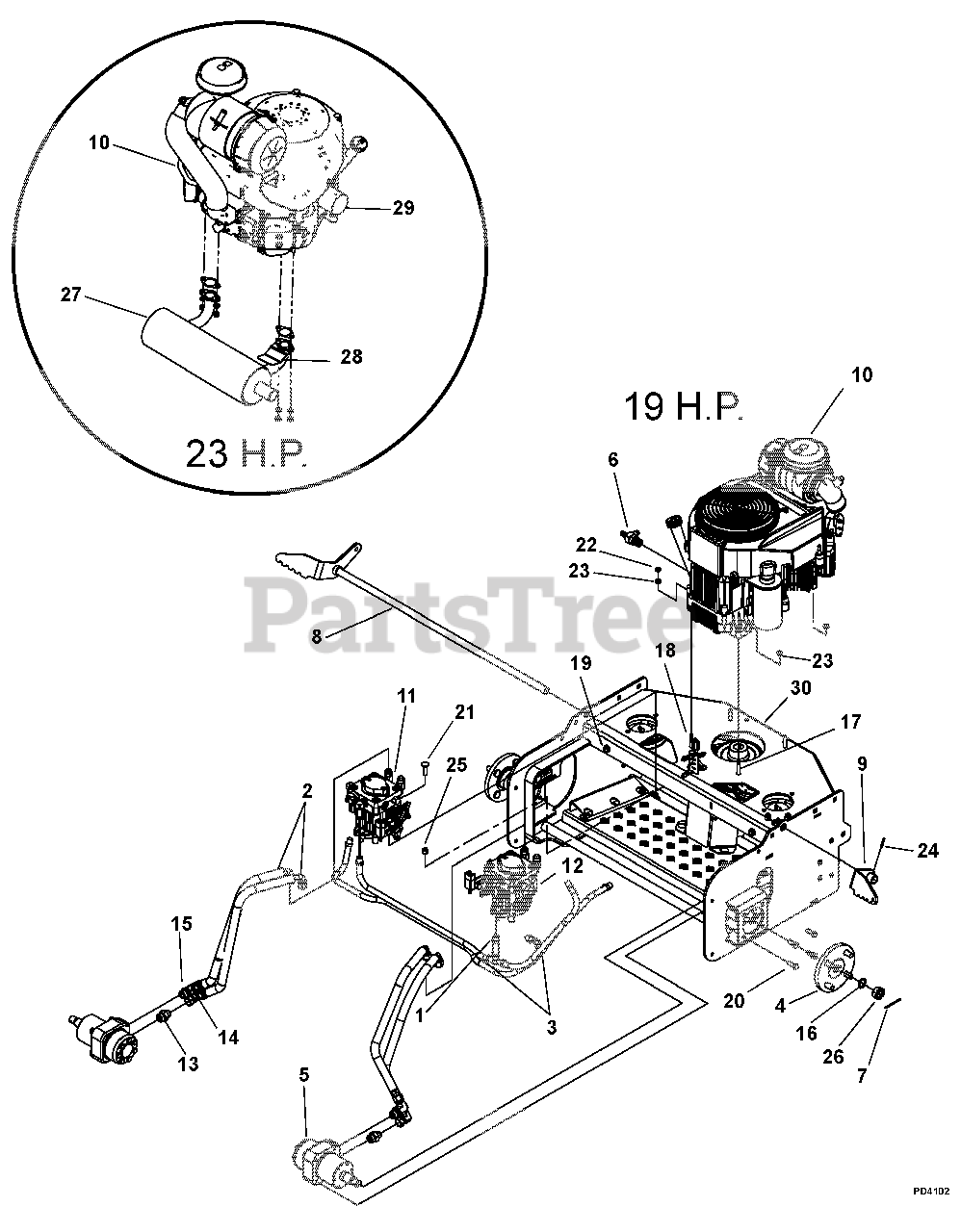

Engine, Hydraulic And Mainframe Assembly Parts Diagram

  • Title

1

Gravely 00876600

Hose Clamp

$

$

Not available

2

Gravely 00876700

Hose, High Pressure
(Superseded to D18394)

$92.99

$

Usually ships in 4-12 days

0

3

Gravely 00879200

Tee Fitting
(Superseded to M86863)

$

$

Not available

4

Gravely 00955400

Hub, Rear Wheel
(Superseded to 00200954)

$241.99

$

Usually ships in 4-12 days

0

5

Gravely 00882300

Wheel Motor

$

$

Not available

6

Gravely 00883700

Oil Drain Fitting
(Superseded to TCA16240)

$

$

Not available

7

Gravely 06714100

Pin, Center .125 x 2.00

$

$

Not available

8

Gravely 00896600

Weldment, Brake Shaft
(Superseded to 00200612)

$

$

Not available

9

Gravely 00897000

Weldment, RH Brake Arm

$

$

Not available

10

Gravely N/A

Engine, Kawasaki 19HP FH580V

$

$

Currently unavailable

Gravely N/A

Engine, Kawasaki 23HP FH680V

$

$

Currently unavailable

11

Gravely N/A

Assembly, LH Hydraulic Pump

$

$

Currently unavailable

12

Gravely N/A

Assembly, RH Hydraulic Pump

$

$

Currently unavailable

13

Gravely 07025800

Adapter, Hydraulic Steel 7/8 "0" to .75

$13.99

$

In Stock, only 2 left!

0

14

Gravely 00942900

Adapter, 3/4 FESW x 3/4 MJIC x 90
(Superseded to 00231046)

$

$

Not available

15

Gravely 07036500

Adapter, 8MJ-10MB90

$

$

Not available

16

Gravely 00953300

Shim, .020 x .787 x 1.102
(Superseded to 24M7158)

$15.99

$

Usually ships in 4-12 days

0

17

Gravely 05952400

Bolt, Hex .31-18 x 1.50 Grade 5
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0

18

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

19

Gravely 05974500

Bolt, Hex .38-16 x 1.00 Grade 8 w/Epoxy Patch
(Superseded to 05901721)

$1.99

$

In Stock, Qty 17

0

20

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, Qty 19

0

22

Gravely 06536100

Nut, Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, only 1 left!

0

23

Gravely 06530200

Nut, Locking, Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

24

Gravely 05802900

PIn, Roll .156 x 1.00

$0.99

$

In Stock, Qty 5

0

25

Gravely 06535800

Nut, Locking, Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

26

Gravely 06500037

Castle Nut

$

$

Not available

27

Gravely 00941700

Muffler, Kawasaki Flat Head Horizontal (994102)
(Superseded to 00191125)

Note: (994102)

$

$

Not available

28

Gravely 00872400

Shield, Heat
(Superseded to 00191365)

$

$

Not available

29

Gravely 21535800

Oil Filter, Kawasaki # 49065-2078
(Superseded to 49065-0724)

$18.99

$

In Stock, Qty 20+

0

30

Gravely 00942600

Weldment, Deck Frame w/Decals S/O

$

$

Not available
