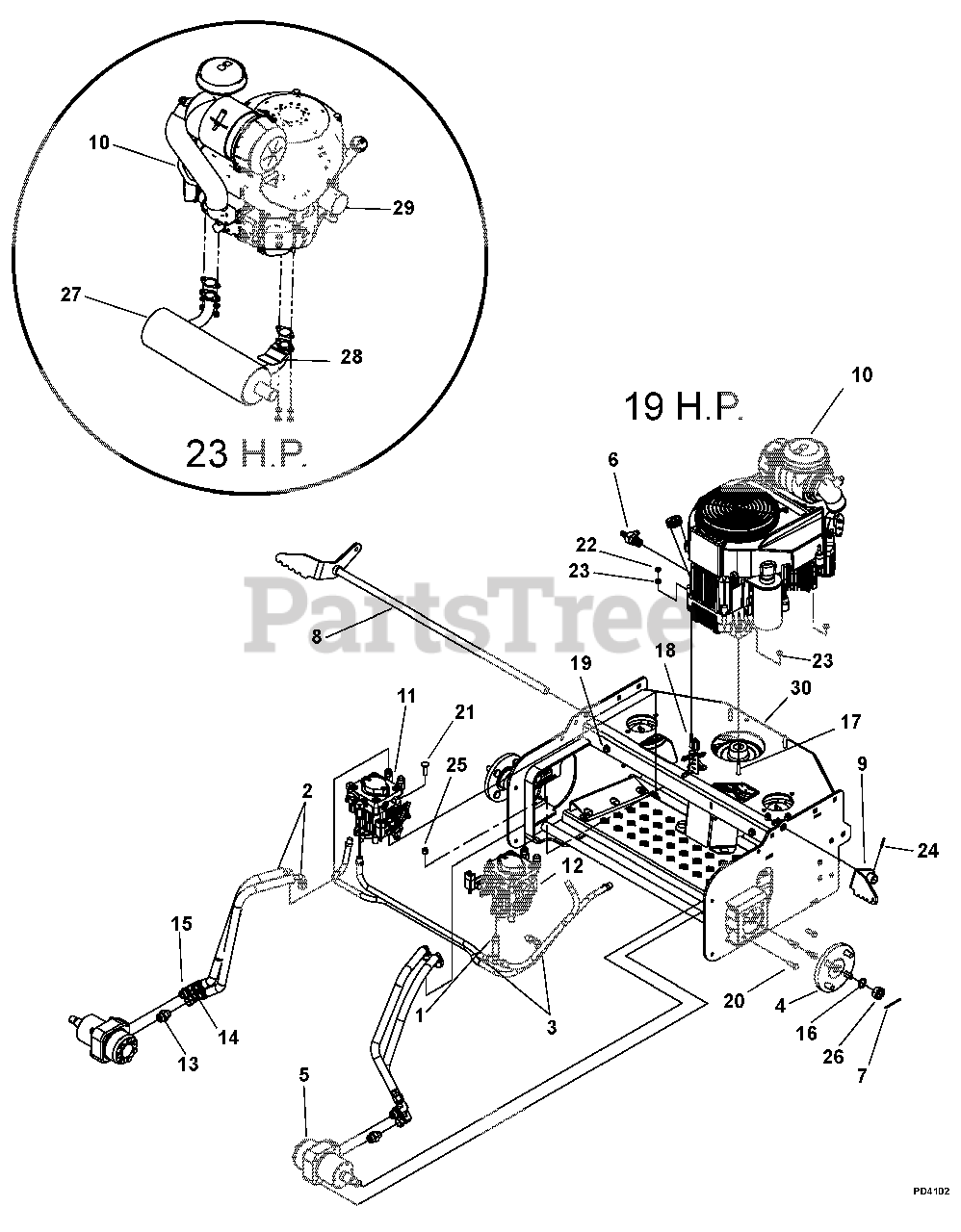

994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000101 - 000206) Engine, Hydraulic And Mainframe Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

Engine, Hydraulic And Mainframe Assembly Parts Diagram

  • Title

1

Gravely 00876600

HOSE CLAMP
(Superseded to D18394)

$93.99

$

In Stock, only 1 left!

0

2

Gravely 00876700

HOSE, HIGH PRESSURE
(Superseded to D18394)

$93.99

$

In Stock, only 1 left!

0

3

Gravely 00879200

TEE FITTING
(Superseded to M86863)

$

$

Not available

4

Gravely 00955400

HUB, REAR WHEEL
(Superseded to 00200954)

$

$

Not available

5

Gravely 00882300

WHEEL MOTOR

$

$

Not available

6

Gravely 00883700

OIL DRAIN FITTING
(Superseded to TCA16240)

$

$

Not available

7

Gravely 06714100

PIN-CTR .125X2.00 YWZC

$

$

Not available

8

Gravely 00896600

WLDT, BRAKE SHAFT
(Superseded to 00200612)

$

$

Not available

9

Gravely 00897000

WLDT, RH BRAKE ARM

$

$

Not available

10

Engine, Kawasaki 19HP FH580V

$

$

Not available

Engine, Kawasaki 23HP FH680V

$

$

Not available

11

Assembly, LH Hydraulic Pump

$

$

Not available

12

Assembly, RH Hydraulic Pump

$

$

Not available

13

Gravely 07025800

ADAPTER, HYD ST 7/8 "O" TO 3/4

$14.99

$

Usually ships in 4-12 days

0

14

Gravely 00942900

ADAPTER, 3/4 FESW X 3/4MJICX90
(Superseded to 00231046)

$

$

Not available

15

Gravely 07036500

ADAPTER, 8MJ-10MB90

$

$

Not available

16

Gravely 00953300

SHIM, .020X.787X1.102
(Superseded to 24M7158)

$16.99

$

Usually ships in 4-12 days

0

17

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

18

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

19

Gravely 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

22

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 17

0

23

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

24

Gravely 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 12

0

25

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

26

Gravely 06500037

CASTLE NUT

$

$

Not available

27

Gravely 00941700

MUFFLER, KAWASAKI FH-HORI
(Superseded to 00191125)

Note: (994102)

$

$

Not available

28

Gravely 00872400

SHIELD, HEAT
(Superseded to 00191365)

$

$

Not available

29

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

$18.99

$

Usually ships in 2-5 days

0

30

Gravely 00942600

WLDT, DECK FRAME W/DECALS S/O

$

$

Not available
