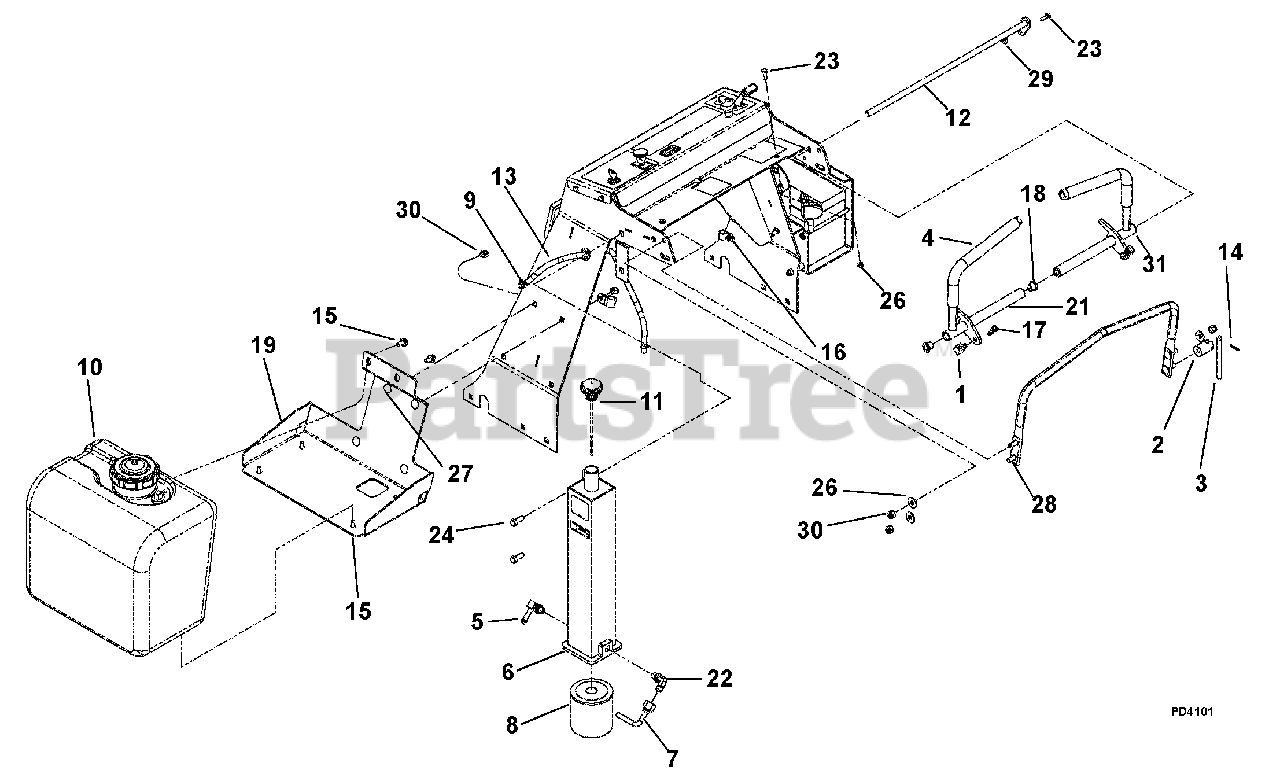

994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000101 - 000206) Fuel, Hydraulic And Handle Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

Fuel, Hydraulic And Handle Assembly Parts Diagram

  • Title

1

Gravely 00874300

SWIVEL
(Superseded to D13028)

$85.99

$

Usually ships in 4-12 days

0

2

Gravely 00874500

BASE, SPEED CONTROL LOCK

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 00874600

HANDLE

$

$

Not available

4

Gravely 00943900

GRIP, CONTROL
(Superseded to D18093)

$8.49

$

In Stock, only 1 left!

0

5

Gravely 07019700

FTG-ADPTR .562-18 ST THD

$7.49

$

Usually ships in 4-12 days

0

6

Gravely 00883300

HYDRAULIC RESERVOIR, INC DECAL
(Superseded to TCA15373)

$

$

Not available

7

Gravely 00954500

ELBOW FITTING

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 00669300

ELEMENT, OIL FILTER

$29.99

$

In Stock, Qty 7

0

9

Gravely 06900108

CLAMP
(Superseded to 03278800)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 00881600

FUEL TANK
(Superseded to 00200151)

$

$

Not available

11

Gravely 00882500

CAP
(Superseded to TCA15122)

$27.99

$

In Stock, only 2 left!

0

12

Gravely 00882700

SHAFT, PIVOT

$

$

Not available

13

Gravely 00950900

HOSE, 1/4" ID LOW PERM FUEL 50

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 05800005

PIN, SPRING 5/32 X 1

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 05956300

BLT-HEX M8 X 1.25X16 YWZC

$

$

Not available

16

Gravely 00888500

P-CLIP, .500 INSULATED
(Superseded to 06900512)

$

$

Not available

17

Gravely 06703600

PIN-HAIR INT .09X1.65 PL
(Superseded to 00121080)

$2.99

$

In Stock, Qty 8

0

18

Gravely 05400017

BRG, FLG .500X.620X.500 BRNZ
(Superseded to 00200116)

$6.49

$

Usually ships in 4-12 days

0

19

Gravely 00896300

BRACKET, FUEL TANK MOUNTING
(Superseded to 00200603)

$

$

Not available

20

Gravely 00899600

HANDLE, SUPPORT
(Superseded to 00200654)

$

$

Not available

21

Gravely 00941100

WLDT, RH CONTROL LEVER

$25.99

$

Usually ships in 4-12 days

0

22

Gravely 08800800

ADPT 2503-6-6
(Superseded to 00313270)

$9.99

$

Usually ships in 4-12 days

0

23

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

24

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$0.99

$

In Stock, Qty 10

0

26

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

29

Gravely 06531000

NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$5.49

$

In Stock, Qty 12

0

30

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

31

Gravely 00941200

WLDT, LH CONTROL LEVER

$

$

Not available
