994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000101 - 000206) Main Frame Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

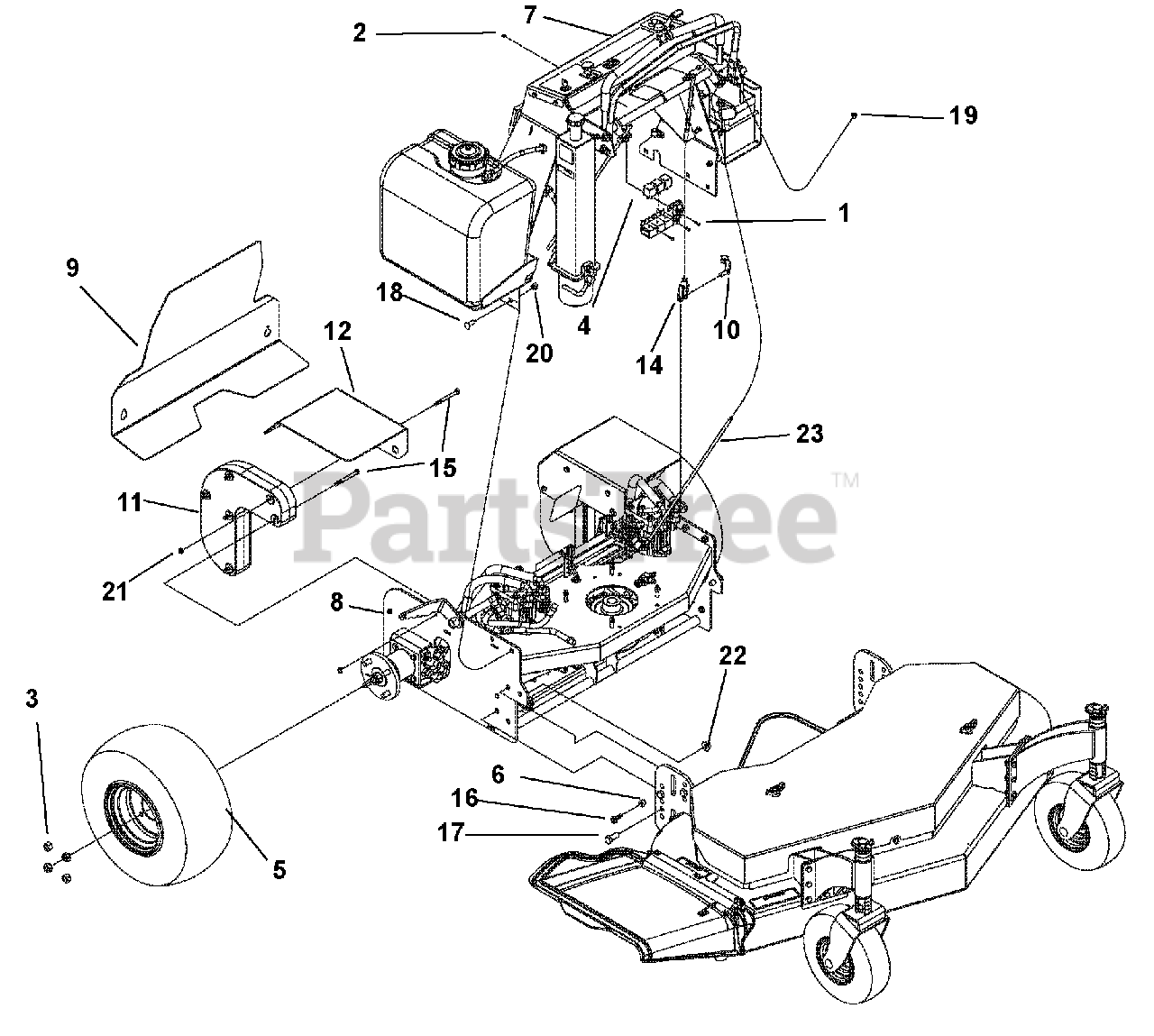

Main Frame Assembly Parts Diagram

  • Title

1

Gravely 06200013

Bolt, Hex 8-32 x .5

$

$

Not available

2

Gravely 06531300

Nut, Locking, Nylon 8-32

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 06535000

Nut, Lug .5-20
(Superseded to 06517600)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00888400

Relay, ISO Mini Electric
(Superseded to 00102770)

$21.99

$

In Stock, only 1 left!

0

5

Gravely 07100318

Assembly, Tire/Wheel 18/8.5 x 8
(Superseded to 00200779)

$

$

Not available

6

Gravely 00942000

Spacer, .625 x .120 x .400
(Superseded to 00200672)

$12.99

$

Usually ships in 4-12 days

0

7

Gravely N/A

Assembly, Console

$

$

Currently unavailable

8

Gravely N/A

Power Unit

$

$

Currently unavailable

9

Gravely 00940200

Foot Guard w/Decals S/O
(Superseded to 00892700)

$75.99

$

Usually ships in 4-12 days

0

10

Gravely 06700005

Pin, CVS SPG 3/8" Yoke
(Superseded to 00200658)

$

$

Not available

11

Gravely 00942300

Weight, Cast Drilled
(Superseded to 00200775)

$

$

Not available

12

Gravely 00940000

Fender, LH S/O
(Superseded to 00892500)

$34.99

$

Usually ships in 4-12 days

0

13

Gravely 00940100

Fender, RH S/O
(Superseded to 00892600)

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 08800400

Yoke, 3/8-24 RH Adjustable

$11.99

$

In Stock, only 1 left!

0

15

Gravely 05971700

Bolt, .31-18 x 3.25 Grade 5

$

$

Not available

16

Gravely 05974500

Bolt, .38-16 x 1.00 Grade 8
(Superseded to 05901721)

$1.99

$

In Stock, Qty 18

0

17

Gravely 05958900

Bolt, .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 06212000

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06529500

Nut, Hex .312-24
(Superseded to 06500939)

$1.99

$

Usually ships in 4-12 days

0

20

Gravely 06534900

Nut, Locking, .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

21

Gravely 06530200

Nut, Locking, Nylon .312-18
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

22

Gravely 06543300

Nut, Locking .50-13
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

23

Gravely 00874400

Control Rod
(Superseded to D13029)

$43.99

$

Usually ships in 4-12 days

0
