994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000101 - 000206) Main Frame Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

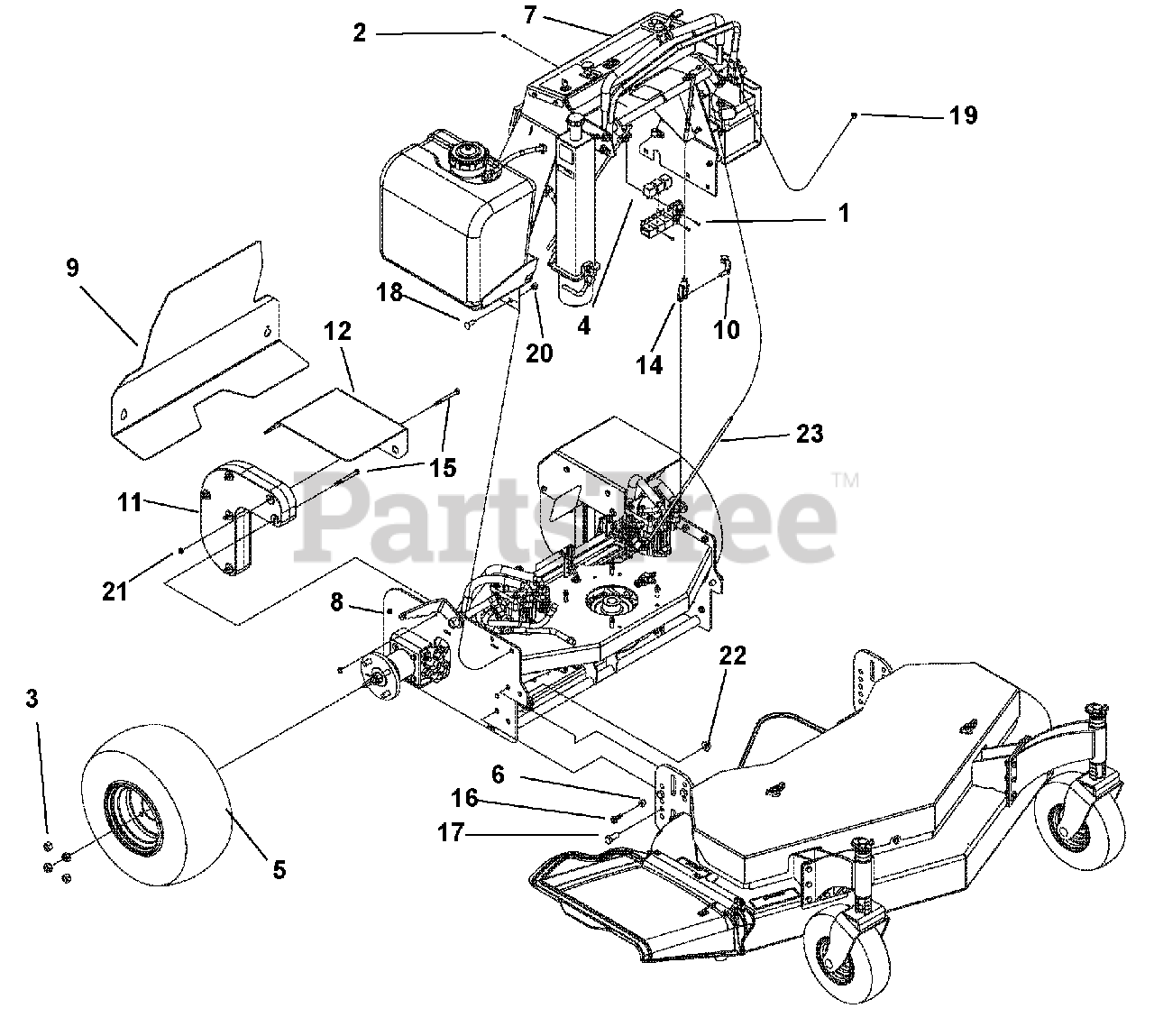

Main Frame Assembly Parts Diagram

  • Title

1

Gravely 06200013

BLT-HEX 8-32 X .5 YWZC

$

$

Not available

2

Gravely 06531300

NUT-LK-NYL 8-32 W/INSTR YWZC

$0.99

$

Usually ships in 4-12 days

0

3

Gravely 06535000

NUT-LUG .50-20 YWZC
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 00888400

RELAY, ISO MINI ELEC.
(Superseded to 00102770)

$27.99

$

Usually ships in 4-12 days

0

5

Gravely 07100318

ASSY, TIRE/WHL 18/8.5X8 SLV
(Superseded to 00200779)

$

$

Not available

6

Gravely 00942000

SPACER, .625X.120X.400 Y
(Superseded to 00200672)

$14.99

$

Usually ships in 4-12 days

0

7

Assembly, Console

$

$

Not available

8

Power Unit

$

$

Not available

9

Gravely 00940200

FOOT GUARD W/DECALS S/O
(Superseded to 00892700)

$75.99

$

Usually ships in 4-12 days

0

10

Gravely 06700005

PIN, CVS SPG 3/8" YOKE SPEC Y
(Superseded to 00200658)

$

$

Not available

11

Gravely 00942300

WEIGHT, CAST DRILLED
(Superseded to 00200775)

$

$

Not available

12

Gravely 00940000

FENDER, LH S/O
(Superseded to 00892500)

$34.99

$

Usually ships in 4-12 days

0

13

Gravely 00940100

FENDER, RH S/O
(Superseded to 00892600)

$34.99

$

Usually ships in 4-12 days

0

14

Gravely 08800400

CLEVIS, .38-24 ADJ.

$11.99

$

Usually ships in 4-12 days

0

15

Gravely 05971700

BLT-HEX .31-18X3.25 GR5 YWZC

$

$

Not available

16

Gravely 05974500

BLT-HEX .38-16X1.00 YZ GR8
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

17

Gravely 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, Qty 6

0

18

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06529500

NUT-HEX .312-24 YWZC
(Superseded to 06500939)

$2.49

$

Usually ships in 4-12 days

0

20

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

22

Gravely 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$4.99

$

Usually ships in 4-12 days

0

23

Gravely 00874400

CONTROL ROD
(Superseded to D13029)

$44.99

$

Usually ships in 4-12 days

0
