994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000101 - 000206) Spindle Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

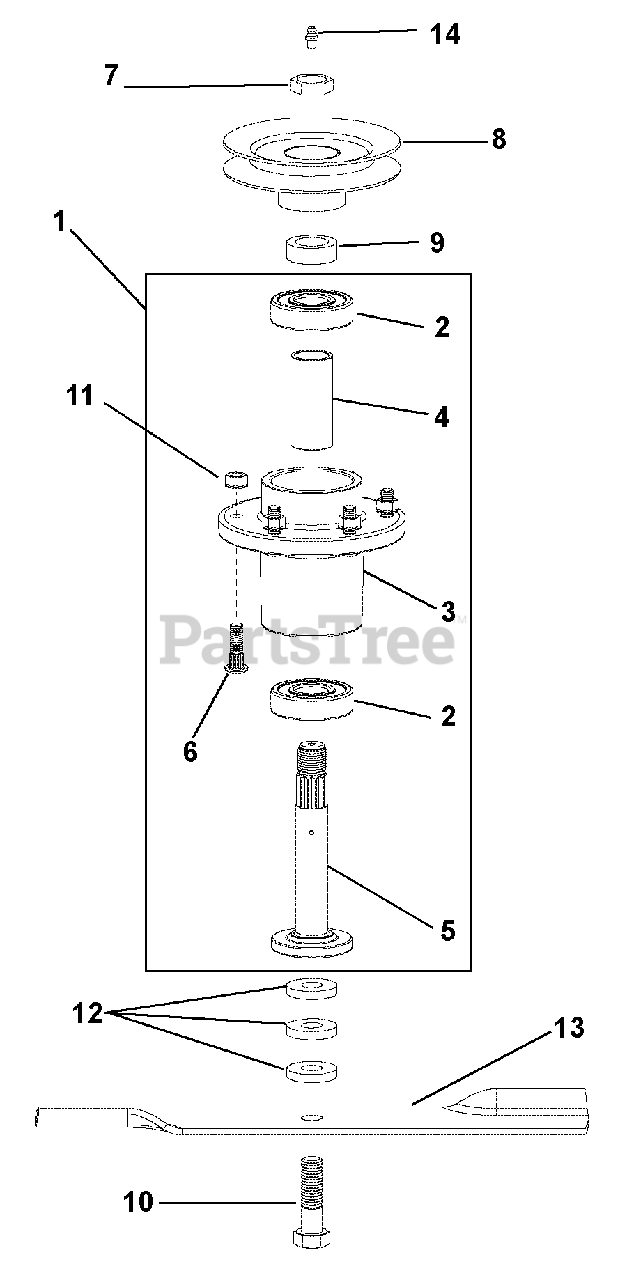

Spindle Assembly Parts Diagram

  • Title

1

Gravely 00872700

Spindle Assembly (Includes Items 2, 3, 4, 5, and 14)
(Superseded to 00200262)

Note: (Includes Items 2, 3, 4, 5, and 14)

$250.99

$

In Stock, only 1 left!

0

2

Gravely 05400019

Ball Bearing
(Superseded to 00200046)

$26.99

$

Usually ships in 4-12 days

0

3

Gravely 00872800

Housing
(Superseded to 00200042)

$87.99

$

Usually ships in 4-12 days

0

4

Gravely 00873000

Spacer, 1.000 x 1.250 x 2.772
(Superseded to 00200044)

$29.99

$

Usually ships in 4-12 days

0

5

Gravely 00872900

Shaft, Spindle
(Superseded to 00200261)

$93.99

$

Usually ships in 4-12 days

0

6

Gravely 05900105

Bolt, 3/8 x 1.25 RIB
(Superseded to 00200045)

$6.99

$

Usually ships in 4-12 days

0

7

Gravely 06500027

Nut, Pulley (Special)
(Superseded to D13055)

Note: (Special)

$39.99

$

In Stock, only 1 left!

0

8

Gravely N/A

Pulley, Cutter Housing - Refer to "Deck Assembly"

$

$

Currently unavailable

9

Gravely 00874200

Spacer, Pulley
(Superseded to D13024)

$10.99

$

In Stock, only 2 left!

0

10

Gravely 05930700

Bolt, Hex .62-11 x 2.25

$3.99

$

In Stock, only 1 left!

0

11

Gravely 06529200

Nut, Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

12

Gravely 00875400

Spacer, Blade Bolt
(Superseded to D18055)

$6.99

$

In Stock, only 3 left!

0

13

Gravely 00878200

18.0" Blade, 52" Deck
(Superseded to GDU10231)

$27.99

$

In Stock, Qty 20+

0

14

Gravely 00873100

Zerk, Grease S/O
(Superseded to JD7849)

$3.49

$

Usually ships in 4-12 days

0
