994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000101 - 000206) Spindle Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

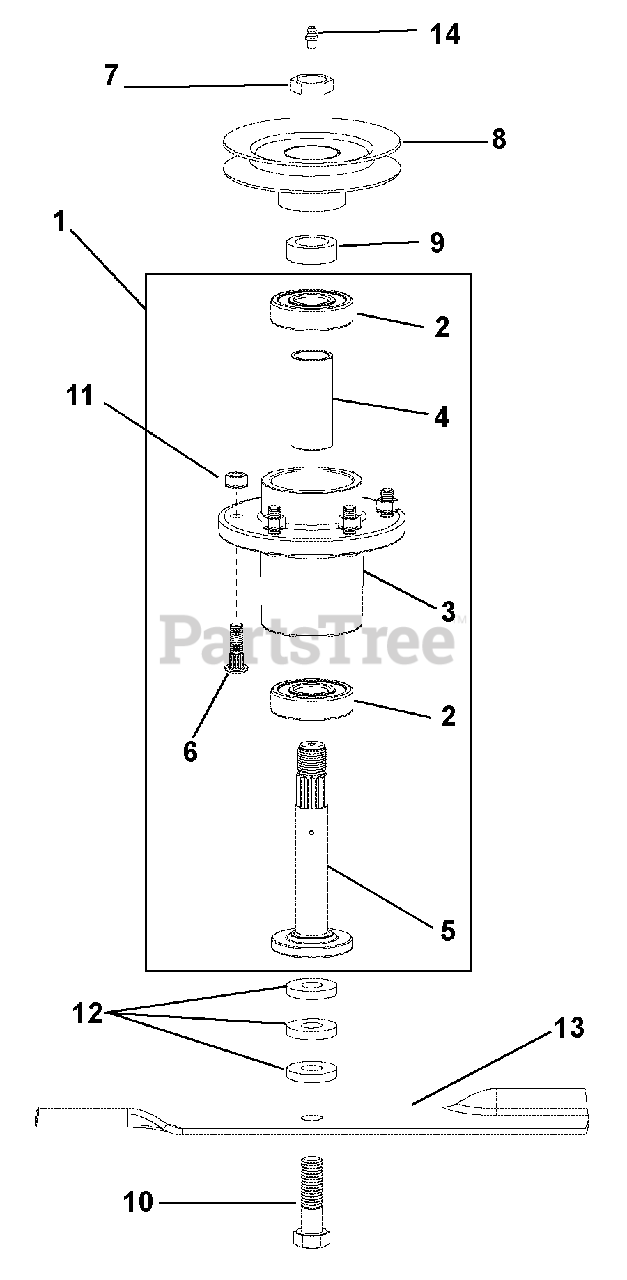

Spindle Assembly Parts Diagram

  • Title

1

Gravely 00872700

SPINDLE ASSEMBLY, INCLUDES ITE
(Superseded to 00200262)

Note: (Includes Items 2, 3, 4, 5, and 14)

$294.99

$

Usually ships in 4-12 days

0

2

Gravely 05400019

BALL BEARING
(Superseded to 00200046)

$29.99

$

In Stock, only 2 left!

0

3

Gravely 00872800

HOUSING
(Superseded to 00200042)

$96.99

$

Usually ships in 4-12 days

0

4

Gravely 00873000

SPACER, 1.000 X 1.250 X 2.772
(Superseded to 00200044)

$30.99

$

Usually ships in 4-12 days

0

5

Gravely 00872900

SHAFT, SPINDLE
(Superseded to 00200261)

$97.99

$

Usually ships in 4-12 days

0

6

Gravely 05900105

BOLT, 3/8-16 X 1.25 RIB
(Superseded to 00200045)

$7.49

$

Usually ships in 4-12 days

0

7

Gravely 06500027

NUT, PULLEY (SPECIAL)
(Superseded to D13055)

Note: (Special)

$

$

Not available

8

Pulley, Cutter Housing - Refer to "Deck Assembly"

$

$

Not available

9

Gravely 00874200

SPACER, PULLEY
(Superseded to D13024)

$14.99

$

In Stock, only 2 left!

0

10

Gravely 05930700

BLT-HEX .62-11X2.25 YWZC GR8

$3.99

$

Usually ships in 4-12 days

0

11

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

12

Gravely 00875400

SPACER, BLADE BOLT
(Superseded to D18055)

$7.49

$

In Stock, only 3 left!

0

13

Gravely 00878200

18.0" BLADE, 52" DECK
(Superseded to GDU10231)

$31.99

$

In Stock, Qty 20+

0

14

Gravely 00873100

ZERK, GREASE S/O
(Superseded to JD7849)

$3.99

$

Usually ships in 4-12 days

0
