994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000101 - 000206) Wheel And Strut Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

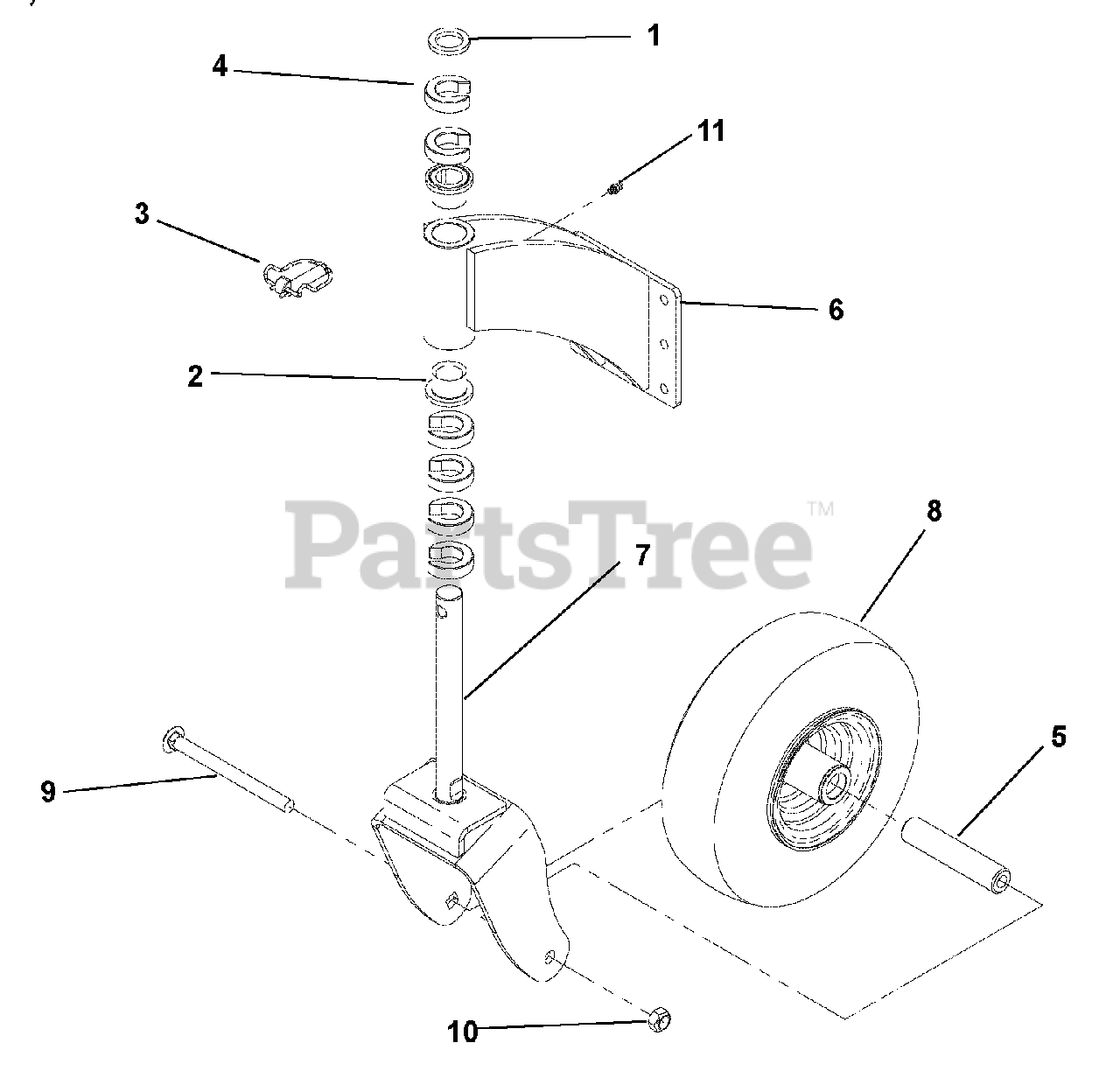

Wheel And Strut Assembly Parts Diagram

  • Title

1

Gravely 00958000

Bushing, 1.03 x 1.50 x .179
(Superseded to D13008)

$9.99

$

Usually ships in 4-12 days

0

2

Gravely 00958100

Bearing, FLG 1.00 x 1.25 x 1.00
(Superseded to D18076)

$5.99

$

In Stock, only 3 left!

0

3

Gravely 00958200

Pin, Lock .438 x 2.00
(Superseded to 00161397)

$9.49

$

In Stock, only 2 left!

0

4

Gravely 00958300

C-Spacer, 1.00 x 1.77 x .50
(Superseded to 00164145)

$3.99

$

In Stock, Qty 7

0

5

Gravely 00958400

Tube, 1.00 x .50 x 4.76
(Superseded to 00191049)

$51.99

$

In Stock, only 2 left!

0

6

Gravely 00958500

Weldment, Caster Mount Bracket
(Superseded to 00200175)

$

$

Not available

7

Gravely 00958600

Weldment, Front Wheel Fork
(Superseded to 00200176)

$217.99

$

Usually ships in 4-12 days

0

8

Gravely 00958700

Wheel, Front 11 x 4 x 5

$

$

Not available

9

Gravely 05961800

Bolt, 1/2-13 x 6.00 CRG

$

$

Not available

10

Gravely 06536300

Locknut, 1/2-13 Crown
(Superseded to 06500827)

$3.99

$

In Stock, only 3 left!

0

11

Gravely 07037900

Grease Zerk, 1/4-28 STR .69 LG
(Superseded to 00959995)

$3.49

$

Usually ships in 4-12 days

0
