994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000207 & Above) 52" Deck Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

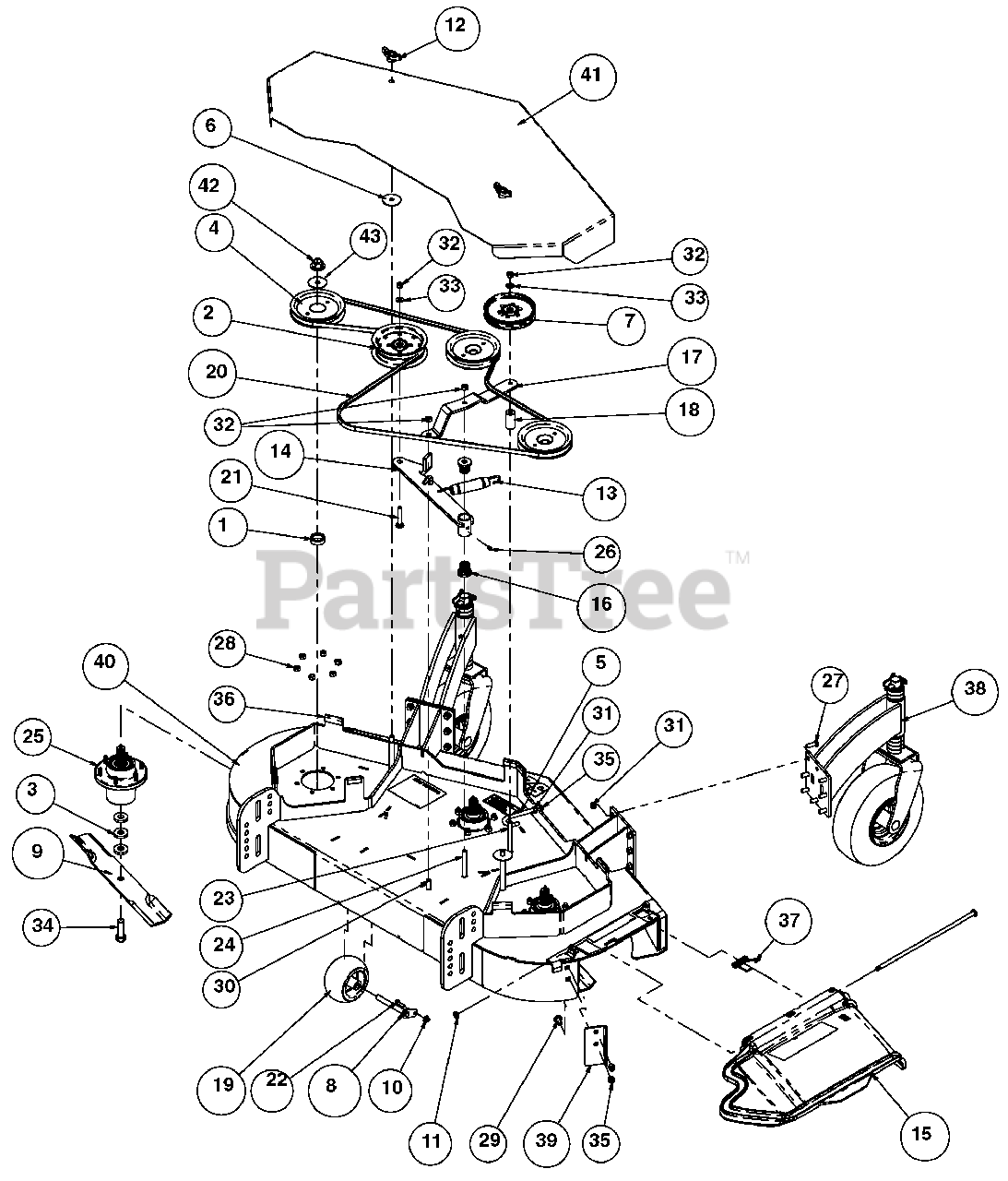

52" Deck Assembly Parts Diagram

  • Title

1

Gravely 00874200

SPACER, PULLEY
(Superseded to D13024)

$14.99

$

In Stock, only 2 left!

0

2

Gravely 07300107

PULLEY, FLAT TENSION IDLER
(Superseded to D18032)

$82.99

$

In Stock, Qty 9

0

3

Gravely 00875400

SPACER, BLADE BOLT
(Superseded to D18055)

$7.49

$

In Stock, Qty 13

0

4

Gravely 03399702

PULLEY, SPLINE SPINDLE LSE

$76.99

$

In Stock, only 2 left!

0

5

Gravely 00876900

J-HOOK
(Superseded to D23058)

$6.49

$

In Stock, only 2 left!

0

6

Gravely 06400030

WSHR-FL-STL .402X2.00X.055 YWZ

$

$

Not available

7

Gravely 07300112

PULLEY, FLAT BLADE-TO-BLADE
(Superseded to D28050)

$

$

Not available

8

Gravely 00878000

PIVOT, ANTI-SCALP ROLLER

$

$

Not available

9

Gravely 00878200

18.0" BLADE, 52" DECK
(Superseded to GDU10231)

$31.99

$

In Stock, Qty 20+

0

10

Gravely 06500035

NUT-1/4" FLANGE PREVAILING TOR

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 06900107

CLIP, RETAINER

$

$

Not available

12

Gravely 00955100

KNOB, 3/8-16 INSERT
(Superseded to M119352)

$3.99

$

In Stock, only 4 left!

0

13

Gravely 08300040

SPRING, DECK BELT TENSION
(Superseded to N242189)

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 07300117

ARM, IDLER ENGINE-TO-BLADE
(Superseded to TCA15346)

$145.99

$

In Stock, only 3 left!

0

15

Gravely 00873900

DISCHARGE CHUTE, 48" DECK

$

$

Not available

16

Gravely TCU14540

BRG, FLG M10XM25XM27 FLUTED

$18.99

$

In Stock, Qty 6

0

17

Gravely 00949900

STRAP, IDLER PULLEY
(Superseded to TCU18344)

$40.99

$

Usually ships in 4-12 days

0

18

Gravely 00886100

SPACER, BLADE-TO-BLADE PULLEY
(Superseded to TCU18742)

$19.99

$

Usually ships in 4-12 days

0

19

Gravely 07100327

WHEEL, GAGE, 48" AND 52" DECK
(Superseded to TCU18744)

$14.99

$

In Stock, Qty 14

0

20

Gravely 07200120

BELT, ENGINE-TO-BLADES, 52"DEC
(Superseded to TCU18848)

$108.99

$

Usually ships in 4-12 days

0

21

Gravely 03H1658

BOLT, 3/8-16X2.25 CRG 5 Y
(Superseded to 06200301)

$4.99

$

In Stock, Qty 11

0

22

Gravely 03H1729

BOLT, 1/4 X 1.00 A17D ZINC
(Superseded to 06219800)

$2.49

$

In Stock, only 3 left!

0

23

Gravely 05900106

BOLT, 3/8-16 X 3-3/4 CHCS

$

$

Not available

24

Gravely 05900108

BOLT, 3/8-16 X 4.00 CHCS

$

$

Not available

25

Gravely 00200260

ASSY, SPINDLE HOUSING
(Superseded to 00200262)

$294.99

$

Usually ships in 4-12 days

0

26

Gravely 07037900

GREASE ZERK, 1/4-28 STR .69 LG
(Superseded to 00959995)

$3.99

$

In Stock, only 2 left!

0

27

Gravely 05900120

BOLT,JDS19-.375-16UNC (960046)
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

29

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

31

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.99

$

In Stock, Qty 20+

0

32

Gravely 06543800

NUT, .38-16 LOW CROWN LK ACORN
(Superseded to 06534900)

$1.99

$

In Stock, Qty 20+

0

33

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.49

$

In Stock, Qty 9

0

35

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

36

Gravely 00999538

TRIM, LOCK 1/4" EDGE

$6.49

$

Usually ships in 4-12 days

0

37

Gravely 03393800

SPRING, TORSION .460"X.138"

$6.49

$

Usually ships in 4-12 days

0

38

Assembly, Wheel & Strut (see page 26 for parts)

Note: (see page 26 for parts)

$

$

Not available

39

Gravely 03754053

PLATE, EXTENDER GRAVELY DECK

$

$

Not available

40

Gravely 03761801

WLDT, 52 GRAVELY DECK W/DECALS

$

$

Not available

41

Gravely 03761901

WLDT, 52 GRVLY DECK SHLD W/DCL

$

$

Not available

42

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

In Stock, Qty 18

0

43

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 9

0
