994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000207 & Above) Console Components Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

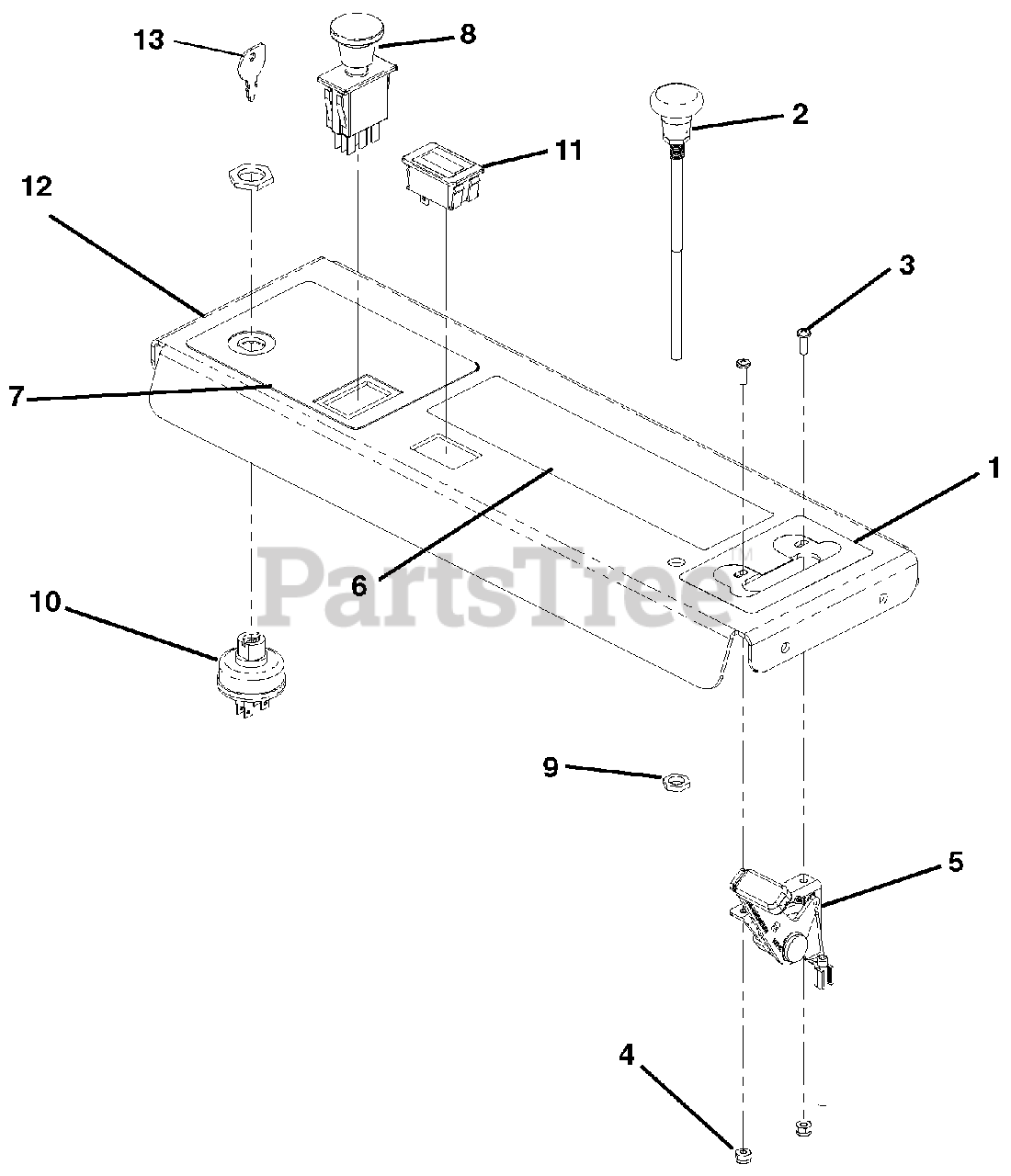

Console Components Parts Diagram

  • Title

1

Gravely 00875100

DECAL, THROTTLE
(Superseded to D18021)

$29.99

$

Usually ships in 4-12 days

0

2

Gravely 00876800

CABLE, CHOKE
(Superseded to D18427)

$56.99

$

Usually ships in 4-12 days

0

3

Gravely 06200013

BLT-HEX 8-32 X .5 YWZC

$

$

Not available

4

Gravely 06531300

NUT-LK-NYL 8-32 W/INSTR YWZC

$1.49

$

Usually ships in 4-12 days

0

5

Gravely 00881800

CABLE, THROTTLE
(Superseded to TCA15051)

$23.99

$

Usually ships in 4-12 days

0

6

Gravely 00884000

DECAL, GENERAL CAUTION

$10.99

$

Usually ships in 4-12 days

0

7

Gravely 00885000

DECAL, PTO/IGNITION
(Superseded to 00111886)

$

$

Not available

8

Gravely 00941600

SWITCH, PTO ENGAGEMENT
(Superseded to 00136574)

$30.99

$

In Stock, only 4 left!

0

9

Gravely 06529400

NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 00953000

SWITCH, KEY - 3 POSITION
(Superseded to 00180620)

$35.99

$

In Stock, only 4 left!

0

11

Gravely 00456600

HOUR METER - DIGITAL
(Superseded to 09497400)

$26.99

$

In Stock, Qty 20+

0

12

Gravely 03731501

CONTROL PANEL GRAVELY W/DECALS

$

$

Not available

13

Gravely 00105684

KEY-IGN SERVICE ONLY
(Superseded to 02460700)

Note: (Service Only)

$11.99

$

In Stock, Qty 16

0
