994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000207 & Above) Console Components Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

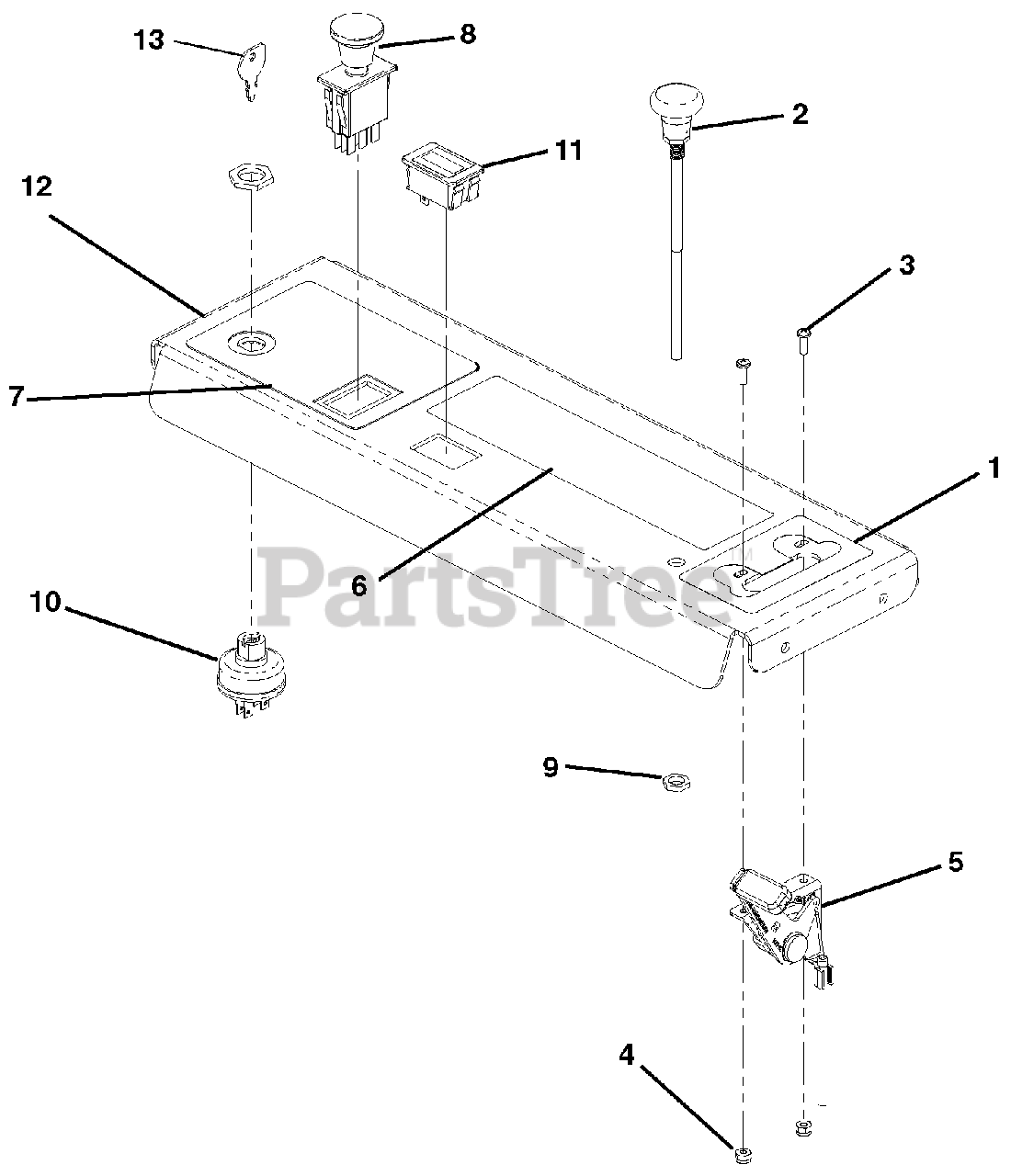

Console Components Parts Diagram

  • Title

1

Gravely 00875100

Decal, Throttle
(Superseded to D18021)

$27.99

$

Usually ships in 4-12 days

0

2

Gravely 00876800

Cable, Choke
(Superseded to D18427)

$51.99

$

Usually ships in 4-12 days

0

3

Gravely 06200013

Screw, 8-32 x .5

$

$

Not available

4

Gravely 06531300

Nut, Elastic Stop 8-32

$1.99

$

Usually ships in 4-12 days

0

5

Gravely 00881800

Cable, Throttle
(Superseded to TCA15051)

$21.99

$

Usually ships in 4-12 days

0

6

Gravely 00884000

Decal, General Caution

$10.99

$

Usually ships in 4-12 days

0

7

Gravely 00885000

Decal, PTO/Ignition
(Superseded to 00111886)

$

$

Not available

8

Gravely 00941600

Switch, PTO Engagement
(Superseded to 00136574)

$28.99

$

In Stock, only 1 left!

0

9

Gravely 06529400

Nut, 3/8 UNF Hex Grade 5
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

10

Gravely 00953000

Switch, Key - 3 Position
(Superseded to 00180620)

$35.99

$

In Stock, only 4 left!

0

11

Gravely 00456600

Hour Meter -Digital
(Superseded to 09497400)

$22.99

$

In Stock, only 2 left!

0

12

Gravely 03731501

Assembly, Control Panel w/Decals

$

$

Not available

13

Gravely 00105684

Key, Ignition (Service Only)
(Superseded to 02460700)

Note: (Service Only)

$7.99

$

In Stock, Qty 15

0
