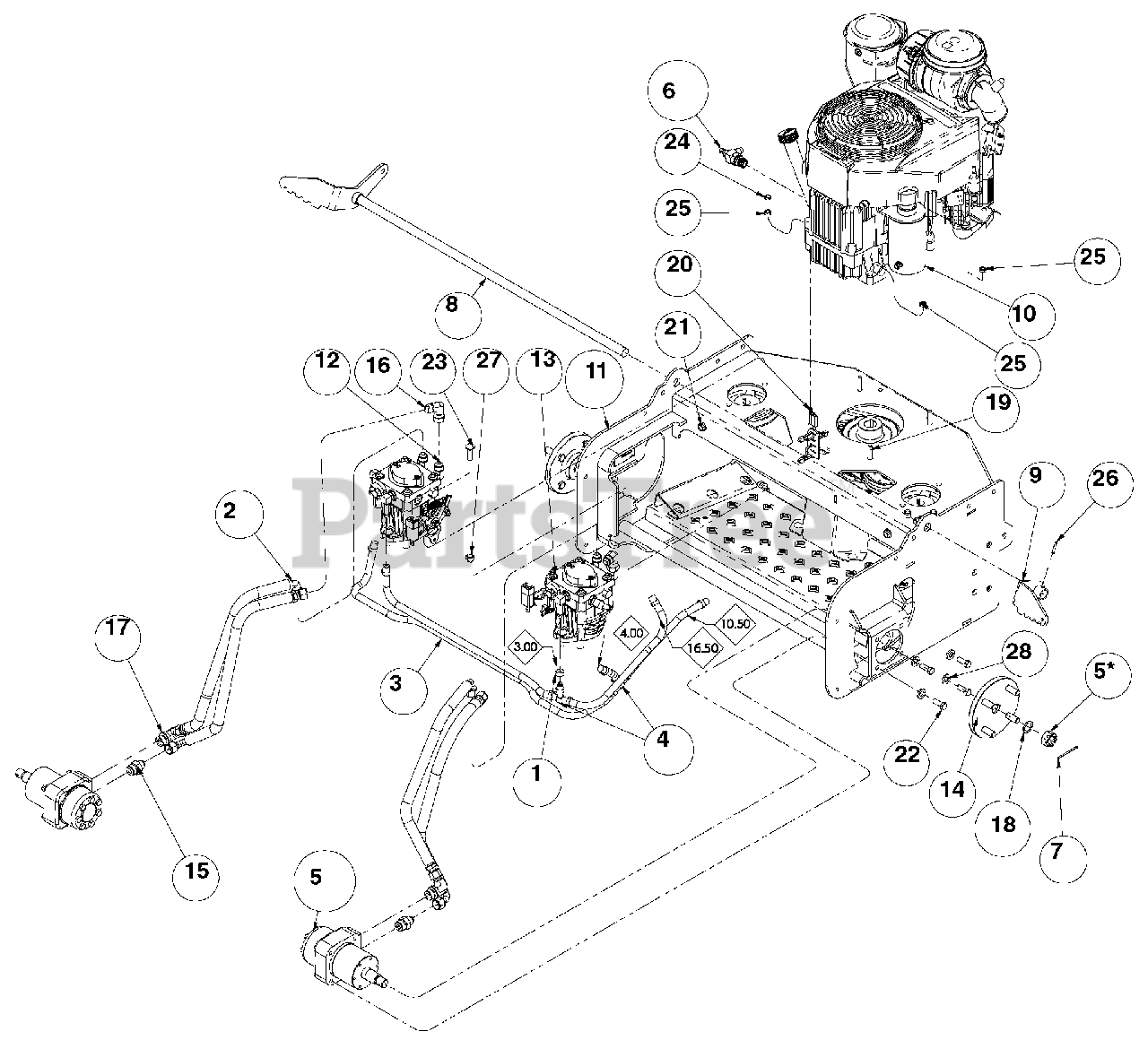

994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000207 & Above) Engine, Hydraulic And Mainframe Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

Engine, Hydraulic And Mainframe Assembly Parts Diagram

  • Title

1

Gravely 00876600

HOSE CLAMP
(Superseded to D18394)

$93.99

$

In Stock, only 1 left!

0

2

Gravely 00876700

HOSE, HIGH PRESSURE
(Superseded to D18394)

$93.99

$

In Stock, only 1 left!

0

3

Gravely 00945300

HOSE, 3/8 SAE30R7 FUEL & OIL
(Superseded to DT5332)

$6.49

$

Usually ships in 4-12 days

0

4

Gravely 00879200

TEE FITTING
(Superseded to M86863)

$

$

Not available

5

Gravely 04915500

MOTOR, HYD WHEEL
(Superseded to 05015500)

Note: (*Includes Castle Nut, tighten to 163 N.m (120 lbf-ft))

$959.99

$

Usually ships in 4-12 days

0

6

Gravely 00883700

OIL DRAIN FITTING
(Superseded to TCA16240)

$

$

Not available

7

Gravely 06714100

PIN-CTR .125X2.00 YWZC

$

$

Not available

8

Gravely 00896600

WLDT, BRAKE SHAFT
(Superseded to 00200612)

$

$

Not available

9

Gravely 00897000

WLDT, RH BRAKE ARM

$

$

Not available

10

Gravely 00200675

ENGINE, KAWASAKI 19HP FH580V

Note: (994101, 105)

$

$

Not available

Gravely 00191123

ENGINE, KAWASAKI 23HP FH680V

Note: (994102)

$

$

Not available

11

Gravely 03731120

WLDT, DECK FRAME W/DCALS GRVLY

$

$

Not available

12

Gravely 00200721

ASSEMBLY, HYD PUMP

Note: (See Pump Components on page 16.)

$

$

Not available

13

Gravely 00200722

ASSEMBLY, HYD PUMP

Note: (See Pump Components on page 16.)

$1612.99

$

Usually ships in 4-12 days

0

14

Gravely 00200954

ASSY, REAR WHEEL HUB

$

$

Not available

15

Gravely 07025800

ADAPTER, HYD ST 7/8 "O" TO 3/4

$14.99

$

Usually ships in 4-12 days

0

16

Gravely 00942900

ADAPTER, 3/4 FESW X 3/4MJICX90
(Superseded to 00231046)

$

$

Not available

17

Gravely 07036500

ADAPTER, 8MJ-10MB90

$

$

Not available

18

Gravely 05500132

BUSHING, MACH .750X1.25X.048 Y
(Superseded to 00150052)

$5.49

$

Usually ships in 4-12 days

0

19

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

20

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$3.49

$

In Stock, Qty 10

0

21

Gravely 00960044

BOLT, 3/8-16X1.00 FGH 8 Y

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 05900120

BOLT,JDS19-.375-16UNC (960046)
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 17

0

25

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

26

Gravely 05802900

PIN-ROLL .156X1.00

$0.99

$

In Stock, Qty 12

0

27

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

28

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.49

$

In Stock, Qty 20+

0
