994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000207 & Above) Engine, Hydraulic And Mainframe Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

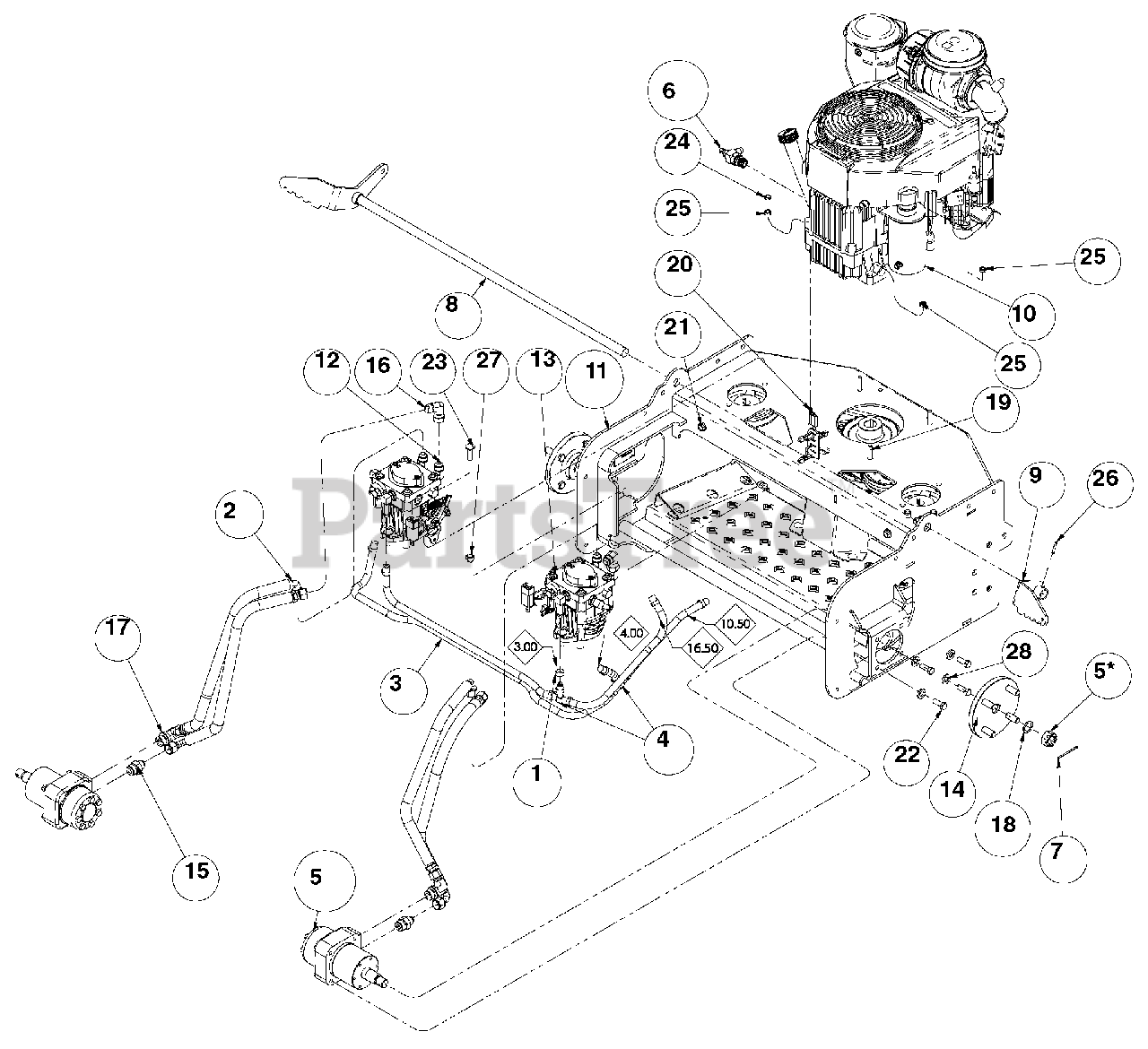

Engine, Hydraulic And Mainframe Assembly Parts Diagram

  • Title

1

Gravely 00876600

Clamp, Hose - 1/2" Pinch

$

$

Not available

2

Gravely 00876700

Hose Assembly
(Superseded to D18394)

$92.99

$

Usually ships in 4-12 days

0

3

Gravely 00945300

Hose, 3/8 SAE 30R7 Fuel & Oil
(Superseded to DT5332)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 00879200

Fitting, TUN 3/8 Hose
(Superseded to M86863)

$

$

Not available

5

Gravely 04915500

Motor, Wheel HGM-12P-7172 (*Includes Castle Nut, tighten to 163 N•m (120 lbf-ft))
(Superseded to 05015500)

Note: (*Includes Castle Nut, tighten to 163 N•m (120 lbf-ft))

$905.99

$

Usually ships in 4-12 days

0

6

Gravely 00883700

Fitting, Oil Drain
(Superseded to TCA16240)

$

$

Not available

7

Gravely 06714100

Pin, Cot .125 x 2.00 Extp Y

$

$

Not available

8

Gravely 00896600

Weldment, Brake Shaft
(Superseded to 00200612)

$

$

Not available

9

Gravely 00897000

Weldment, RH Brake Arm

$

$

Not available

10

Gravely 00200675

Engine, Kawasaki 19HP FH580V (994101, 105)

Note: (994101, 105)

$

$

Not available

Gravely 00191123

Engine, Kawasaki 23HP FH680V (994102)

Note: (994102)

$

$

Not available

11

Gravely 03731120

Weldment, Deck Frame w/Decals

$

$

Not available

12

Gravely 00200721

Assembly, HYD Pump (See Pump Components on page 16.)

Note: (See Pump Components on page 16.)

$

$

Not available

13

Gravely 00200722

Assembly, HYD Pump (See Pump Components on page 16.)

Note: (See Pump Components on page 16.)

$1612.99

$

Usually ships in 4-12 days

0

14

Gravely 00200954

Assembly, Rear Wheel Hub

$241.99

$

Usually ships in 4-12 days

0

15

Gravely 07025800

Fitting, ADP 3/4-16FJIC x 7/8-14MOR

$13.99

$

In Stock, only 2 left!

0

16

Gravely 00942900

Fitting, ADP MJIC-FSWJIC 6500-08-08
(Superseded to 00231046)

$

$

Not available

17

Gravely 07036500

Fitting, ADP JIC-ORB 2062-10-8S

$

$

Not available

18

Gravely 05500132

Bushing, Mach., .75 x 1.25 x .048
(Superseded to 00150052)

$4.99

$

Usually ships in 4-12 days

0

19

Gravely 05952400

Bolt, .3125-18 x 1.50 Hex 5 Y
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0

20

Gravely 05957400

Bolt, .3125-18 x 1.75 Hex 5 Y
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

21

Gravely 00960044

Bolt, .375-16 x 1.00 FGH 8 Y

$2.49

$

Usually ships in 4-12 days

0

22

Gravely 05900120

Bolt, .375-16 x 1.00 Hex 5 Y
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06224100

Bolt, .375-16 x 1.25 CRG 5 Y
(Superseded to 06200415)

$2.49

$

In Stock, Qty 18

0

24

Gravely 06536100

Nut, .3125-18 JAM GR5 Y
(Superseded to 06500909)

$0.99

$

In Stock, only 1 left!

0

25

Gravely 06530200

Locknut, .3125-18 Nyloc Y
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

26

Gravely 05802900

Pin, Roll .156 x 1.00

$0.99

$

In Stock, Qty 5

0

27

Gravely 06535800

Locknut, .375-16 Nyloc Y
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

28

Gravely 06308800

Washers, .375 Medium Spring Lock
(Superseded to 06300116)

$0.99

$

In Stock, Qty 18

0
