994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000207 & Above) Fuel, Hydraulic And Handle Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

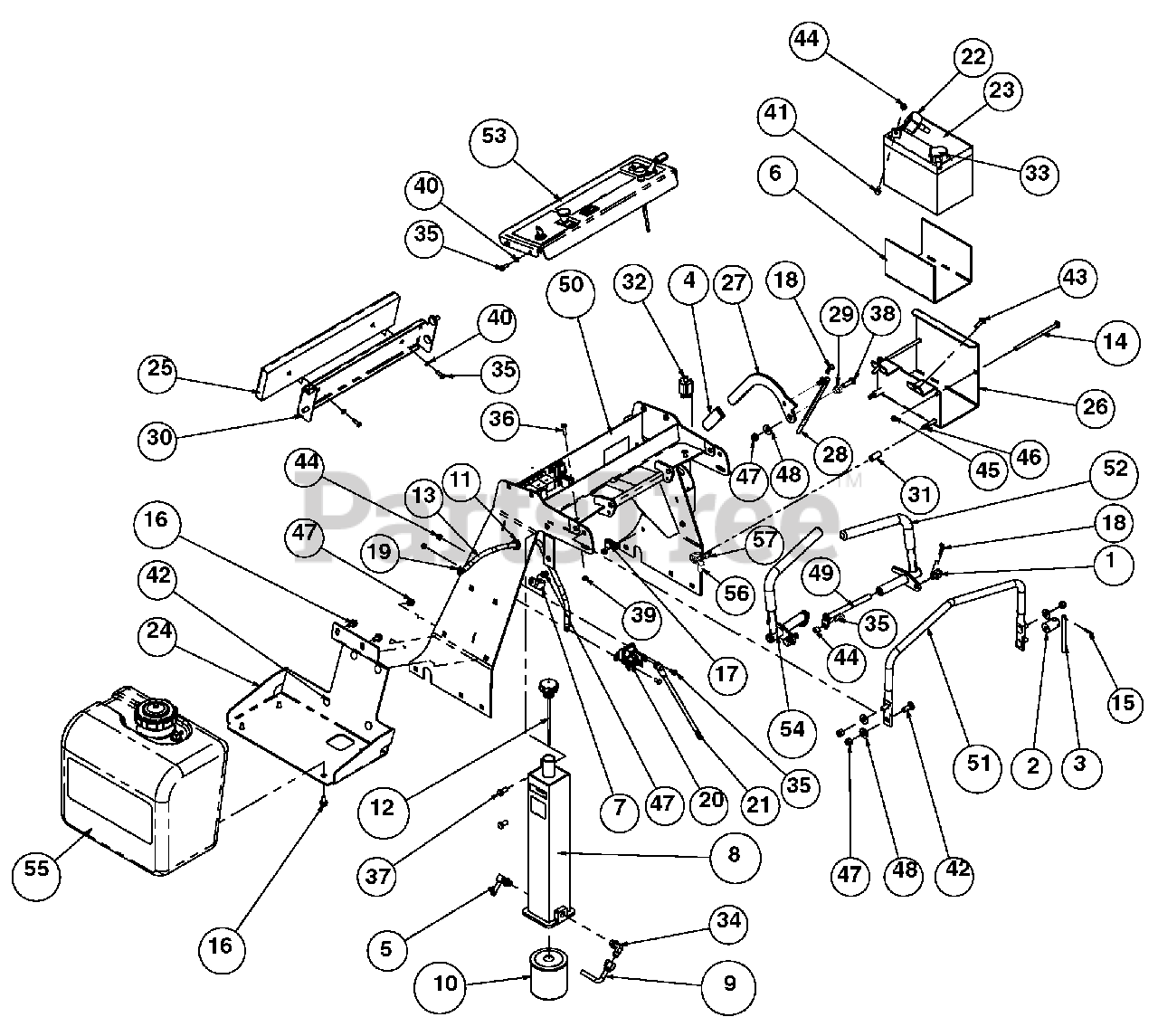

Fuel, Hydraulic And Handle Assembly Parts Diagram

  • Title

1

Gravely 00874300

SWIVEL
(Superseded to D13028)

$85.99

$

Usually ships in 4-12 days

0

2

Gravely 00874500

BASE, SPEED CONTROL LOCK

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 00874600

HANDLE

$

$

Not available

4

Gravely 00875800

GRIP
(Superseded to D18079)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 07019700

FTG-ADPTR .562-18 ST THD

$7.49

$

Usually ships in 4-12 days

0

6

Gravely 00877200

ISOLATOR PAD, BATTERY
(Superseded to D28159)

$

$

Not available

7

Gravely 00954200

P-CLIP, .750 INSULATED

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 00883300

HYDRAULIC RESERVOIR, INC DECAL
(Superseded to TCA15373)

$

$

Not available

9

Gravely 00954500

ELBOW FITTING

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 00669300

ELEMENT, OIL FILTER

$29.99

$

In Stock, Qty 7

0

11

Gravely 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

12

Gravely 00882500

CAP
(Superseded to TCA15122)

$27.99

$

In Stock, only 2 left!

0

13

Gravely 00950900

HOSE, 1/4" ID LOW PERM FUEL 50

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 05900107

CAP SCREW, 5/16" X 6"
(Superseded to 06200128)

$7.49

$

Usually ships in 4-12 days

0

15

Gravely 05800005

PIN, SPRING 5/32 X 1

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 05901314

BLT-HEX-FLANGED M8 X 16

$

$

Not available

17

Gravely 00888500

P-CLIP, .500 INSULATED
(Superseded to 06900512)

$

$

Not available

18

Gravely 06703600

PIN-HAIR INT .09X1.65 PL
(Superseded to 00121080)

$2.99

$

In Stock, Qty 8

0

19

Gravely 00201008

OBS, REPLACED BY 181208O

$

$

Not available

20

Gravely 03551000

SOLENOID

$43.99

$

In Stock, Qty 6

0

21

Gravely 00872300

STARTER CABLE
(Superseded to 00180842)

$15.99

$

Usually ships in 4-12 days

0

22

Gravely 00888800

CABLE, BATTERY STARTER 48"
(Superseded to 00181148)

$

$

Not available

23

Gravely 00191832

BATTERY, 12V-U1-CCA270MIN
(Superseded to 01554800)

$

$

Not available

24

Gravely 00896300

BRACKET, FUEL TANK MOUNTING
(Superseded to 00200603)

$

$

Not available

25

Gravely 00896400

PAD, THIGH
(Superseded to 00200606)

$

$

Not available

26

Gravely 00200789

TRAY, BATTERY W/DECAL GRAVELY

$

$

Not available

27

Gravely 00896800

LEVER, BRAKE
(Superseded to 00200614)

$

$

Not available

28

Gravely 00896900

LINK, BRAKE Y
(Superseded to 00200615)

$32.99

$

Usually ships in 4-12 days

0

29

Gravely 05500131

BUSHING, BRAKE PIVOT Y
(Superseded to 00200671)

$

$

Not available

30

Gravely 00900000

WLDT, THIGH PAD BRACKET
(Superseded to 00200690)

$65.99

$

Usually ships in 4-12 days

0

31

Gravely 05500135

BUSHING, .364X.540X1.250 Y

$

$

Not available

32

Gravely 00942200

SWITCH, NO-NO-NC GREY PLUNGER
(Superseded to 00200705)

$17.99

$

Usually ships in 4-12 days

0

33

Gravely 00200777

CABLE, BATTERY GROUND - 20.5"

$

$

Not available

34

Gravely 08800800

ADPT 2503-6-6
(Superseded to 00313270)

$9.99

$

Usually ships in 4-12 days

0

35

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

36

Gravely 00960002

BOLT, 1/4-20X1.00 HEX 5 Y
(Superseded to 05947700)

$1.99

$

In Stock, only 2 left!

0

37

Gravely 00960045

BOLT, 3/8-16X.750 HEX 5 Y
(Superseded to 05959400)

$1.99

$

In Stock, Qty 14

0

38

Gravely 00960047

BOLT, 3/8-16X1.25 HEX 5 Y
(Superseded to 05958000)

$1.99

$

In Stock, Qty 20+

0

39

Gravely AA960500

NUT, 1/4-20 STD HEX GR5 Y

$

$

Not available

40

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

41

Gravely AA963001

BOLT, 1/4-20X.625 WSH Y

$

$

Not available

42

Gravely 06212000

BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.99

$

In Stock, Qty 20+

0

43

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

44

Gravely 06530100

NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$1.49

$

In Stock, only 3 left!

0

45

Gravely 06530200

NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$1.49

$

In Stock, Qty 5

0

46

Gravely 00967185

BOLT, 5/16-18X2.00 CRG 5 Y
(Superseded to 06200127)

$3.99

$

Usually ships in 4-12 days

0

47

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

48

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

49

Gravely 00203893

WLDT, PIN AND LOCK Y

$34.99

$

Usually ships in 4-12 days

0

50

Gravely 03740700

GRAVELY CONSOLE W/DECALS

$

$

Not available

51

Gravely 03730751

SUPPORT, HANDLE PAINTED

$

$

Not available

52

Gravely 03730900

LH CONTROL LEVER W/GRIP

$

$

Not available

53

Gravely 03731501

CONTROL PANEL GRAVELY W/DECALS

Note: (switches sold seperately)

$

$

Not available

54

Gravely 03731000

RH CONTROL LEVER W/GRIP

$246.99

$

Usually ships in 4-12 days

0

55

Gravely 00200151

TANK, FUEL GRAVELY W/CAP

$

$

Not available

56

Gravely AH89557

P-CLIP, .500 INSULATED

$5.49

$

Usually ships in 4-12 days

0

57

Gravely 07519900

TIE WRAP, BLACK LG 7.31

$3.99

$

Usually ships in 4-12 days

0
