994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000207 & Above) Fuel, Hydraulic And Handle Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

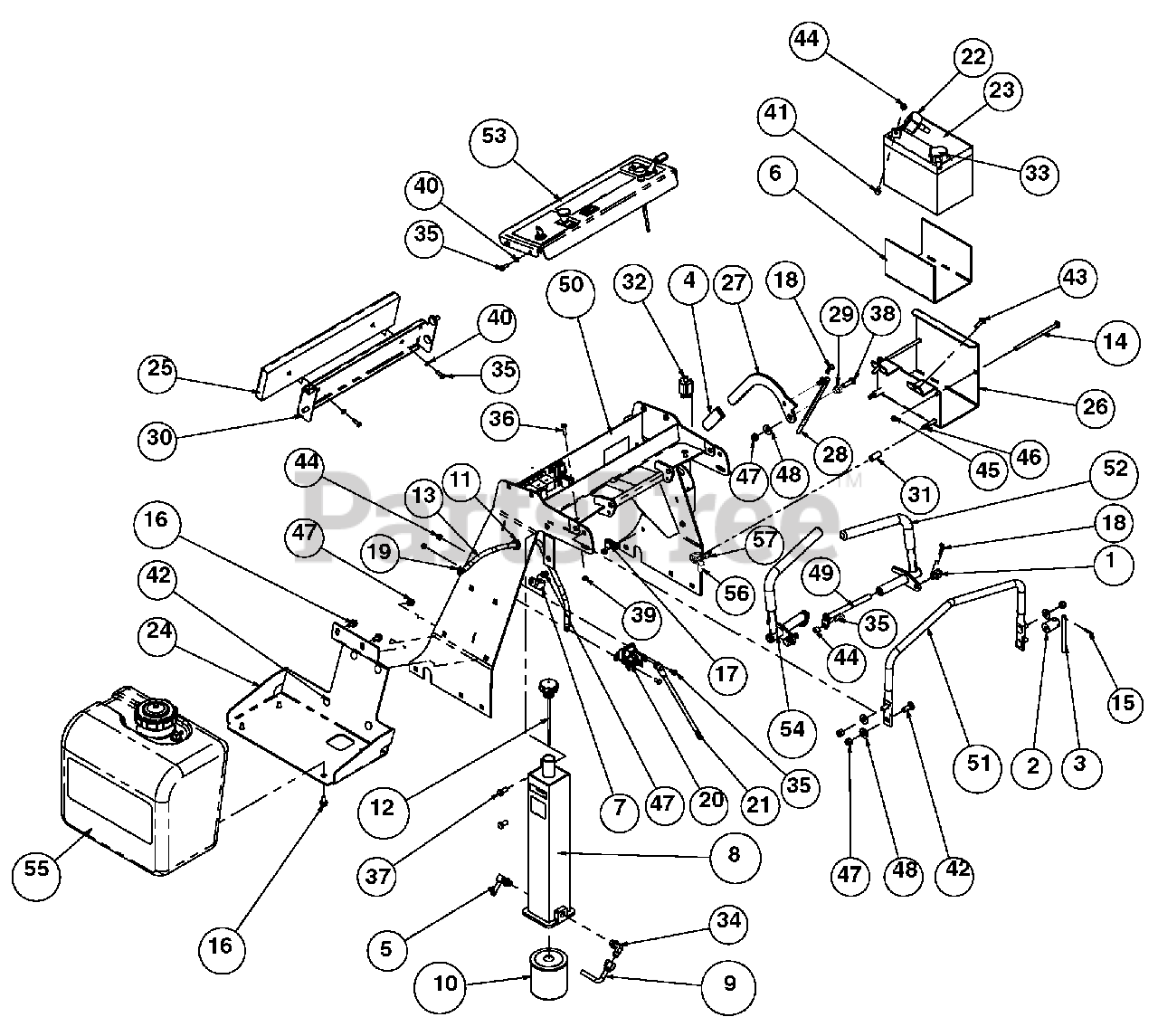

Fuel, Hydraulic And Handle Assembly Parts Diagram

  • Title

1

Gravely 00874300

Swivel Adjuster
(Superseded to D13028)

$83.99

$

Usually ships in 4-12 days

0

2

Gravely 00874500

Base, Lock Lever Y

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 00874600

Lever, Lock Y

$

$

Not available

4

Gravely 00875800

Grip, PVC .250 x 1.00 x 3.63
(Superseded to D18079)

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 07019700

Fitting, 90 9/16 MOR x 3/8 Hose

$6.99

$

Usually ships in 4-12 days

0

6

Gravely 00877200

Strip, Battery Insulator
(Superseded to D28159)

$15.99

$

Usually ships in 4-12 days

0

7

Gravely 00954200

P-Clip, .750 Insulated

$3.49

$

Usually ships in 4-12 days

0

8

Gravely 00883300

Reservoir, Hydraulic S/O
(Superseded to TCA15373)

$

$

Not available

9

Gravely 00954500

Elbow, Fitting

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 00669300

Filter, Oil

$26.99

$

In Stock, Qty 8

0

11

Gravely 03278800

Clamp, Fuel Line

$1.49

$

In Stock, Qty 6

0

12

Gravely 00882500

Cap, Filler Oil
(Superseded to TCA15122)

$27.99

$

Usually ships in 4-12 days

0

13

Gravely 00950900

Hose, 1/4" ID Low Perm Fuel 50

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 05900107

Bolt, 5/16-18 x 6.00 CRG 2 Y
(Superseded to 06200128)

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 05800005

Pin, Spring

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 05901314

Screw, Hex, FL,JDS123, M8 x 1.25 x 16

$

$

Not available

17

Gravely 00888500

P-Clip, .500 Insulated
(Superseded to 06900512)

$

$

Not available

18

Gravely 06703600

Pin, Hair .091 x 1.63 5/16-1/2 Y
(Superseded to 00121080)

$2.99

$

In Stock, Qty 11

0

19

Gravely 00201008

Grommet, Round Rubber .625 x .19

$

$

Not available

20

Gravely 03551000

Solenoid, 12 V Starter

$34.99

$

In Stock, Qty 5

0

21

Gravely 00872300

Cable, 12" Starter
(Superseded to 00180842)

$15.99

$

Usually ships in 4-12 days

0

22

Gravely 00888800

Cable, Battery Starter - 48"
(Superseded to 00181148)

$38.99

$

Usually ships in 4-12 days

0

23

Gravely 00191832

Battery, 12V-U1-CCA270 Min
(Superseded to 01554800)

$

$

Not available

24

Gravely 00896300

Bracket, Fuel Tank Mounting
(Superseded to 00200603)

$

$

Not available

25

Gravely 00896400

Pad, Thigh
(Superseded to 00200606)

$

$

Not available

26

Gravely 00200789

Tray, Battery

$

$

Not available

27

Gravely 00896800

Lever, Brake
(Superseded to 00200614)

$

$

Not available

28

Gravely 00896900

Link. Brake Y
(Superseded to 00200615)

$28.99

$

Usually ships in 4-12 days

0

29

Gravely 05500131

Bushing, Brake Pivot Y
(Superseded to 00200671)

$

$

Not available

30

Gravely 00900000

Weldment, Thigh Pad Bracket
(Superseded to 00200690)

$64.99

$

Usually ships in 4-12 days

0

31

Gravely 05500135

Bushing, .364 x .540 x 1.250 Y

$

$

Not available

32

Gravely 00942200

Switch, NO-NO-NC Grey Plunger
(Superseded to 00200705)

$17.99

$

In Stock, only 1 left!

0

33

Gravely 00200777

Cable, Battery Negative 30"

$

$

Not available

34

Gravely 08800800

Fitting, 90 9/16 MOR x 9/16 MJIC
(Superseded to 00313270)

$9.49

$

In Stock, only 1 left!

0

35

Gravely 05946800

Bolt, 1/4-20 x .750 Hex 5 Y
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

36

Gravely 00960002

Bolt, 1/4-20 x 1.00 Hex 5 Y
(Superseded to 05947700)

$1.49

$

In Stock, Qty 7

0

37

Gravely 00960045

Bolt, 3/8-16 x .750 Hex 5 Y
(Superseded to 05959400)

$1.49

$

In Stock, only 2 left!

0

38

Gravely 00960047

Bolt, 3/8-16 x 1.25 Hex 5 Y
(Superseded to 05958000)

$1.49

$

In Stock, Qty 8

0

39

Gravely AA960500

Nut, 1/4-20 Standard Hex Grade 5 Y

$

$

Not available

40

Gravely 06308400

Washer, .250 Med. Spring Lock Y
(Superseded to 06401009)

$0.99

$

In Stock, Qty 16

0

41

Gravely AA963001

Bolt, 1/4-20 x .625 WSH Y

$

$

Not available

42

Gravely 06212000

Bolt, 3/8-16 x 1.00 CRG 5 SN Y
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

43

Gravely 06216100

Bolt, 5/16-18 x 1.00 CRG 2 Y
(Superseded to 06200231)

$1.49

$

In Stock, Qty 13

0

44

Gravely 06530100

Locknut, 1/4-20 Whiz Y
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

45

Gravely 06530200

Locknut, 5/16-18 Nyloc Y
(Superseded to 06500820)

$0.99

$

Usually ships in 4-12 days

0

46

Gravely 00967185

Bolt, 5/16-18 x 2.00 Round Head Square Neck 5 Y
(Superseded to 06200127)

$3.99

$

Usually ships in 4-12 days

0

47

Gravely 06535800

Locknut, 3/8-16 Nyloc Y
(Superseded to 06500831)

$2.49

$

In Stock, Qty 19

0

48

Gravely 06435900

Washer, .375 REG Flat Y
(Superseded to 06401008)

$1.49

$

Usually ships in 4-12 days

0

49

Gravely 00203893

Weldment, Pin and Lock

$34.99

$

Usually ships in 4-12 days

0

50

Gravely 03740700

Gravely Console With Decals

$

$

Not available

51

Gravely 03730751

Handle, Support

$112.99

$

Usually ships in 4-12 days

0

52

Gravely 03730900

LH Control Lever W/Grip

$

$

Not available

53

Gravely 03731501

Assembly, Control Panel w/Decals (switches sold seperately)

Note: (switches sold seperately)

$

$

Not available

54

Gravely 03731000

RH Control Lever W/Grip

$162.99

$

In Stock, only 1 left!

0

55

Gravely 00200151

Tank, Fuel Assembly

$

$

Not available

56

Gravely AH89557

P-Clip, .50 Insulated

$5.49

$

In Stock, only 1 left!

0

57

Gravely 07519900

Cable Tie .15 x 8.50

$3.49

$

Usually ships in 4-12 days

0
