994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000207 & Above) Hydraulic Components Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

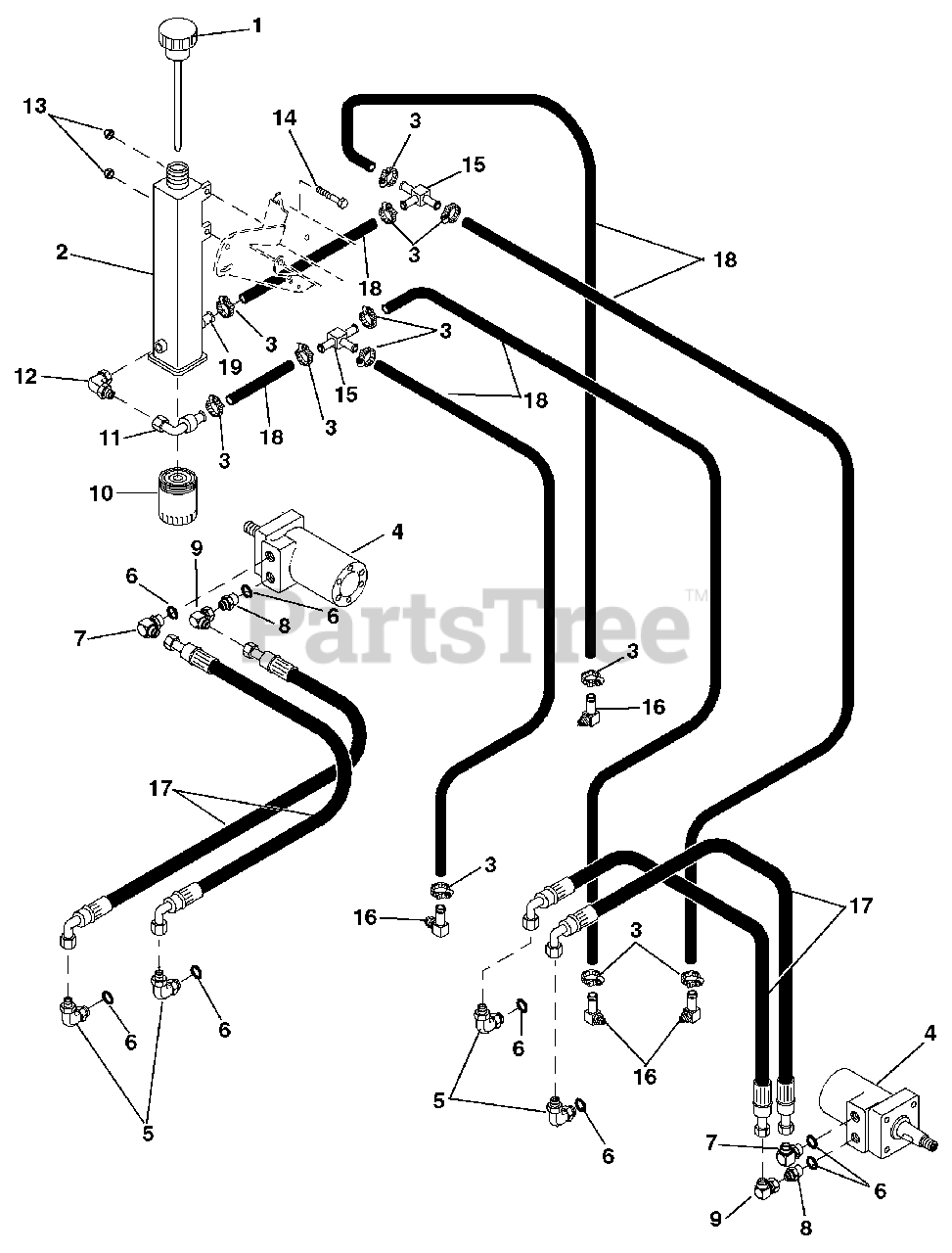

Hydraulic Components Parts Diagram

  • Title

1

Gravely 00882500

CAP
(Superseded to TCA15122)

$27.99

$

In Stock, only 2 left!

0

2

Gravely 00883300

HYDRAULIC RESERVOIR, INC DECAL
(Superseded to TCA15373)

$

$

Not available

3

Gravely 00876600

HOSE CLAMP
(Superseded to D18394)

$93.99

$

In Stock, only 1 left!

0

4

Gravely 04915500

MOTOR, HYD WHEEL
(Superseded to 05015500)

$959.99

$

Usually ships in 4-12 days

0

5

Gravely 00954100

FITTING, INCLUDES O-RING
(Superseded to D14196)

$6.49

$

Usually ships in 4-12 days

0

6

Gravely 05600007

O-RING, INCLUDED WITH FITTING

$

$

Not available

7

Gravely 07036500

ADAPTER, 8MJ-10MB90

$

$

Not available

8

Gravely 07025800

ADAPTER, HYD ST 7/8 "O" TO 3/4

$14.99

$

Usually ships in 4-12 days

0

9

Gravely 00942900

ADAPTER, 3/4 FESW X 3/4MJICX90
(Superseded to 00231046)

$

$

Not available

10

Gravely 00669300

ELEMENT, OIL FILTER

$29.99

$

In Stock, Qty 7

0

11

Gravely 00954500

ELBOW FITTING

$14.99

$

Usually ships in 4-12 days

0

12

Gravely 08800800

ADPT 2503-6-6
(Superseded to 00313270)

$9.99

$

Usually ships in 4-12 days

0

13

Gravely 06535800

NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$3.49

$

In Stock, Qty 20+

0

14

Gravely 00960045

BOLT, 3/8-16X.750 HEX 5 Y
(Superseded to 05959400)

$1.99

$

In Stock, Qty 14

0

15

Gravely 00879200

TEE FITTING
(Superseded to M86863)

$

$

Not available

16

Gravely 07019700

FTG-ADPTR .562-18 ST THD

$7.49

$

Usually ships in 4-12 days

0

17

Gravely 00876700

HOSE, HIGH PRESSURE
(Superseded to D18394)

$93.99

$

In Stock, only 1 left!

0

18

Gravely 00945300

HOSE, 3/8 SAE30R7 FUEL & OIL
(Superseded to DT5332)

$6.49

$

Usually ships in 4-12 days

0

19

Gravely 00954400

ADAPTER, STRAIGHT FITTING

$5.99

$

Usually ships in 4-12 days

0

Gravely 00879100

TIE STRAPS

$

$

Not available
