994102 (2352 FX) - Gravely Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki (SN: 000207 & Above) Spindle Assembly Parts Diagram

Pro-Stance 52" Stand-On Mower, Fixed Deck, 23hp Kawasaki

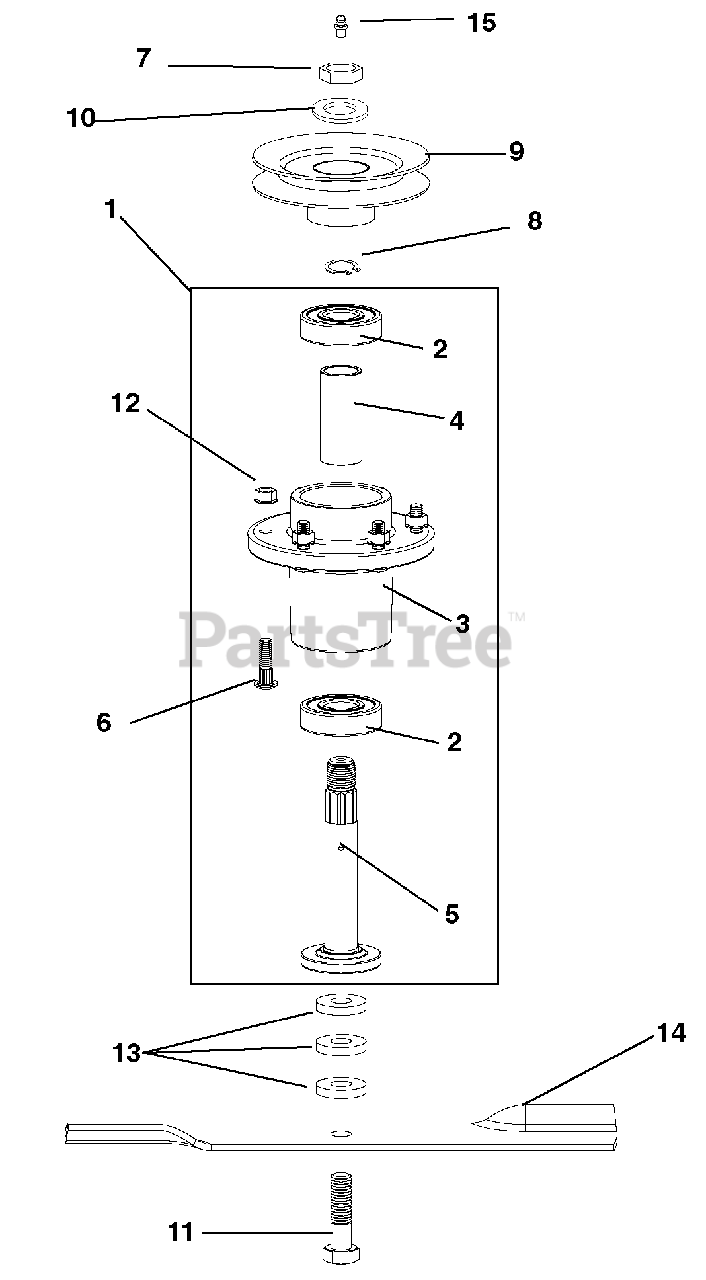

Spindle Assembly Parts Diagram

  • Title

1

Gravely 00200262

ASSY, SPINDLE S/O

Note: (Includes 2, 3, 4, 5, & 15)

$294.99

$

Usually ships in 4-12 days

0

2

Gravely 00200046

BEARING, 6305LLC

$29.99

$

In Stock, only 2 left!

0

3

Gravely 00200042

HOUSING, SPINDLE W/STUDS

$96.99

$

Usually ships in 4-12 days

0

4

Gravely 00873000

SPACER, 1.000 X 1.250 X 2.772
(Superseded to 00200044)

$30.99

$

Usually ships in 4-12 days

0

5

Gravely 00872900

SHAFT, SPINDLE
(Superseded to 00200261)

$97.99

$

Usually ships in 4-12 days

0

6

Gravely 05900105

BOLT, 3/8-16 X 1.25 RIB
(Superseded to 00200045)

$7.49

$

Usually ships in 4-12 days

0

7

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

In Stock, Qty 18

0

8

Gravely 00200263

RING RETAINER S/O

$7.49

$

Usually ships in 4-12 days

0

9

Pulley, Cutter Housing - Refer to Deck Assembly on page 24 or page 26

$

$

Not available

10

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$2.49

$

In Stock, Qty 9

0

11

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$6.49

$

In Stock, Qty 9

0

12

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

13

Gravely 00875400

SPACER, BLADE BOLT
(Superseded to D18055)

$7.49

$

In Stock, Qty 13

0

14

Gravely 00878100

16.5" BLADE, 48" DECK
(Superseded to GDU10230)

Note: (48-Inch Decks)

$29.99

$

In Stock, Qty 8

0

Gravely 00878200

18.0" BLADE, 52" DECK
(Superseded to GDU10231)

Note: (52-inch Decks)

$31.99

$

In Stock, Qty 20+

0

15

Gravely 07037900

GREASE ZERK, 1/4-28 STR .69 LG
(Superseded to 00959995)

$3.99

$

In Stock, only 2 left!

0
