994103 (2352 FL) - Gravely Pro-Stance 52" Stand-On Mower, Floating Deck, 23hp Kawasaki (SN: 000101 - 000500) Caster Wheels And Rear Wheels Parts Diagram

Pro-Stance 52" Stand-On Mower, Floating Deck, 23hp Kawasaki

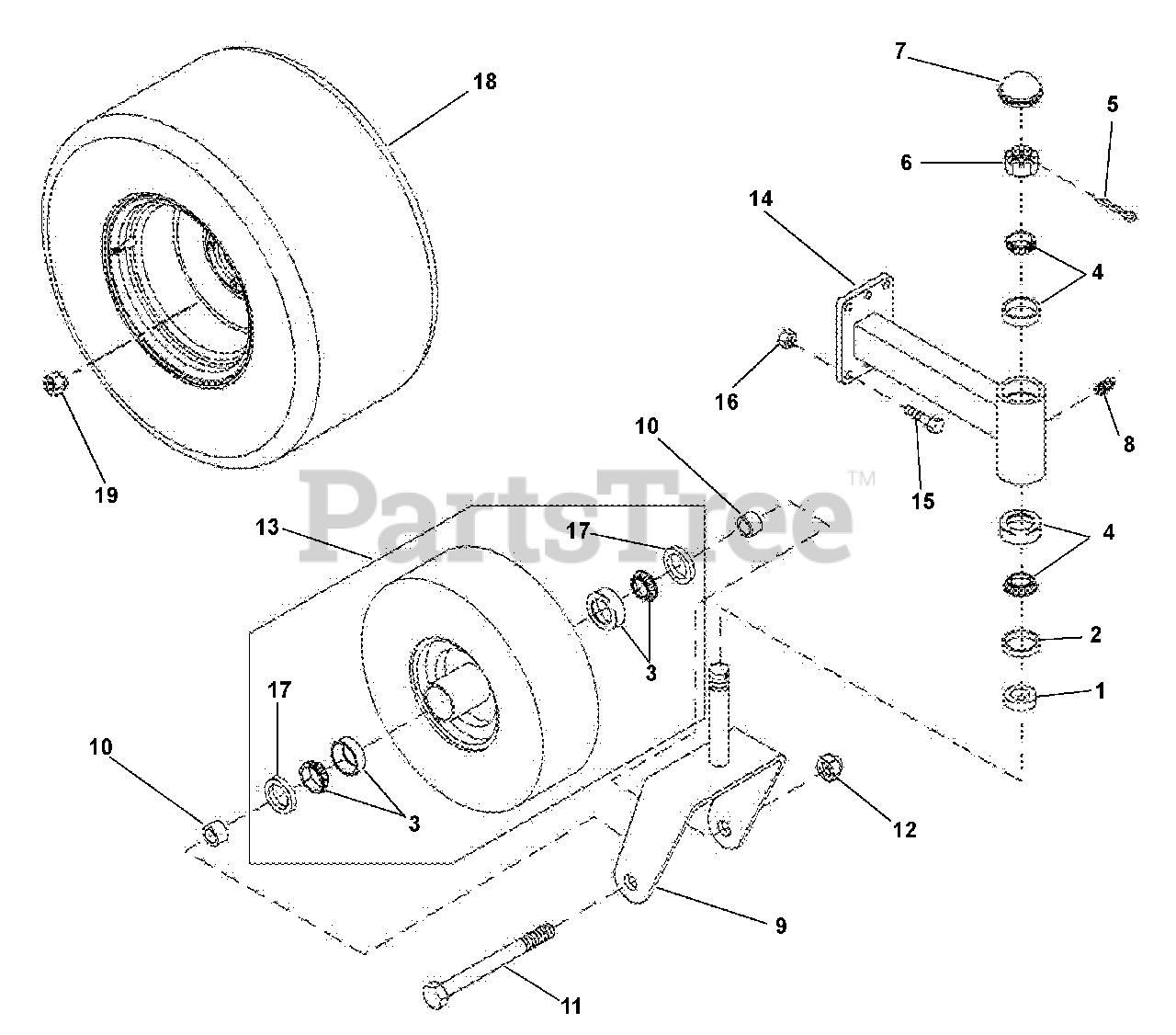

Caster Wheels And Rear Wheels Parts Diagram

  • Title

1

Gravely 00885100

Spacer, Caster Bushing

$

$

Not available

2

Gravely 05600008

Seal, Wheel Bearing
(Superseded to E14625)

$16.99

$

Usually ships in 4-12 days

0

3

Gravely 05400020

Bearing Assembly, Caster Wheel
(Superseded to D38035)

$25.99

$

Usually ships in 4-12 days

0

4

Gravely 00944500

Spindle Bearing Kit, Cup & Cone

$

$

Not available

5

Gravely 06700008

Pin, Cotter, DIN 94, 3.2 x 50

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 06531200

Nut, Hex, Castellated 1-14

$14.99

$

Usually ships in 4-12 days

0

7

Gravely 00955200

Cap, Dust
(Superseded to 05117700)

$6.49

$

In Stock, only 2 left!

0

8

Gravely 00954800

Lubrication Fitting

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 00877000

Yoke
(Superseded to 00200210)

$232.99

$

Usually ships in 4-12 days

0

10

Gravely 00956600

Spacer, Caster Wheel
(Superseded to D33007)

$18.99

$

Usually ships in 4-12 days

0

11

Gravely D28097

Bolt, Hex M6 x 1.0 x 12
(Superseded to 05901333)

$

$

Not available

12

Gravely 06536700

Nut, Jam .31-24
(Superseded to 06500923)

$1.49

$

In Stock, Qty 10

0

13

Gravely 07100311

Caster, Wheel and Tire Assembly
(Superseded to 00200013)

$128.99

$

Usually ships in 4-12 days

0

14

Gravely 00882400

Caster Arm
(Superseded to 00200209)

$349.99

$

Usually ships in 4-12 days

0

15

Gravely 05943000

Bolt, Hex, M10 x 1.5 x 25

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 06542400

Nut, Locking, Nylon M10-1.5

$1.99

$

Usually ships in 4-12 days

0

17

Gravely 05600009

Seal
(Superseded to D38065)

$15.99

$

Usually ships in 4-12 days

0

18

Gravely 07100312

Wheel & Tire Assembly, Rear (994100)
(Superseded to 00200011)

Note: (994100)

$

$

Not available

Gravely 07100313

Wheel & Tire Assembly, Rear (994103)
(Superseded to 00200012)

Note: (994103)

$

$

Not available

19

Gravely 06535000

Nut, Lug .50-20
(Superseded to 06517600)

$1.99

$

In Stock, Qty 20+

0
