994103 (2352 FL) - Gravely Pro-Stance 52" Stand-On Mower, Floating Deck, 23hp Kawasaki (SN: 000101 - 000500) Mower Deck Lift Linkage Parts Diagram

Pro-Stance 52" Stand-On Mower, Floating Deck, 23hp Kawasaki

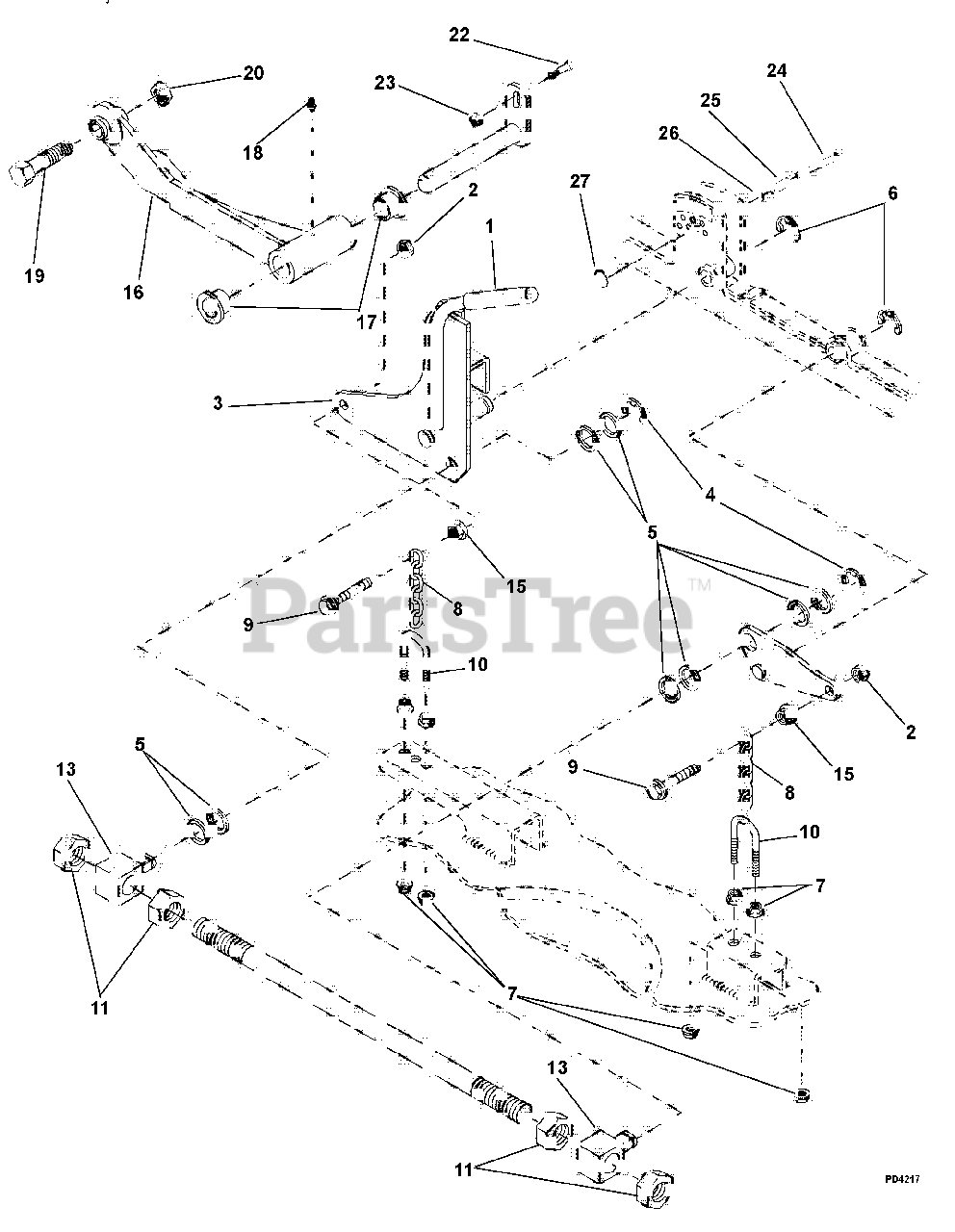

Mower Deck Lift Linkage Parts Diagram

  • Title

1

Gravely 00876000

Grip
(Superseded to D18225)

$

$

Not available

2

Gravely 06500034

Locknut, M10 x 1.50

$

$

Not available

3

Gravely 00877800

Lift Arm, LH Rear
(Superseded to GDA10010)

$

$

Not available

Gravely 00877700

Lift Arm, RH Rear

$

$

Not available

4

Gravely 00879500

Snap Ring

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 06400029

Washer, JDS24 .891 x 1.375 x .048
(Superseded to 24H1413)

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 00879600

Snap Ring

$

$

Not available

7

Gravely 06534900

Nut, Flange .375-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 18

0

8

Gravely 00872100

Chain, Deck Lift
(Superseded to 00150749)

$16.99

$

Usually ships in 4-12 days

0

9

Gravely 05955200

Bolt, M10 x 1.5 x 40

$

$

Not available

10

Gravely 05900118

U-Bolt

$

$

Not available

11

Gravely 06537600

Nut, Hex .75-10

$

$

Not available

12

Gravely 00884300

Rod, Deck Lift

$

$

Not available

13

Gravely 00873400

Swivel
(Superseded to 00200075)

$

$

Not available

14

Gravely 00877600

Lift Arm, LH Front

$5.99

$

Usually ships in 4-12 days

0

Gravely 00877500

Lift Arm, RH Front

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 06500034

Locknut, M10 x 1050

$

$

Not available

16

Gravely 00880500

Thrust Arm, LH (994100)
(Superseded to TCA14877)

Note: (994100)

$

$

Not available

Gravely 00879900

Thrust Arm, RH (994100)

Note: (994100)

$39.99

$

Usually ships in 4-12 days

0

Gravely 00880700

Thrust Arm, LH (994103)

Note: (994103)

$

$

Not available

Gravely 00880600

Thrust Arm, RH (994103)

Note: (994103)

$

$

Not available

17

Gravely 05500127

Bushing

$

$

Not available

18

Gravely 00954800

Fitting, Lubrication

$3.49

$

Usually ships in 4-12 days

0

19

Gravely 05961700

Bolt, Hex .75-10 x 3.00

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 06537600

Nut, Hex .75-10

$

$

Not available

21

Gravely 00879700

Pivot Pin, Thrust Arm
(Superseded to TCA13292)

$116.99

$

Usually ships in 4-12 days

0

22

Gravely 06219800

Bolt, Round Head Square Neck .25-20 x 1.00
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

23

Gravely 06541700

Nut, Lock, Nylon M8-1.25
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

24

Gravely 06800007

Pin, Clevis
(Superseded to M137523)

$3.99

$

Usually ships in 4-12 days

0

25

Gravely 05500129

Bushing

$

$

Not available

26

Gravely 00954700

Pushnut, M12 Bolt Retainer

$

$

Not available

27

Gravely 00879300

Ring, Locking
(Superseded to M88183)

$

$

Not available
