994103 (2352 FL) - Gravely Pro-Stance 52" Stand-On Mower, Floating Deck, 23hp Kawasaki (SN: 000101 - 000500) Park Brake Parts Diagram

Pro-Stance 52" Stand-On Mower, Floating Deck, 23hp Kawasaki

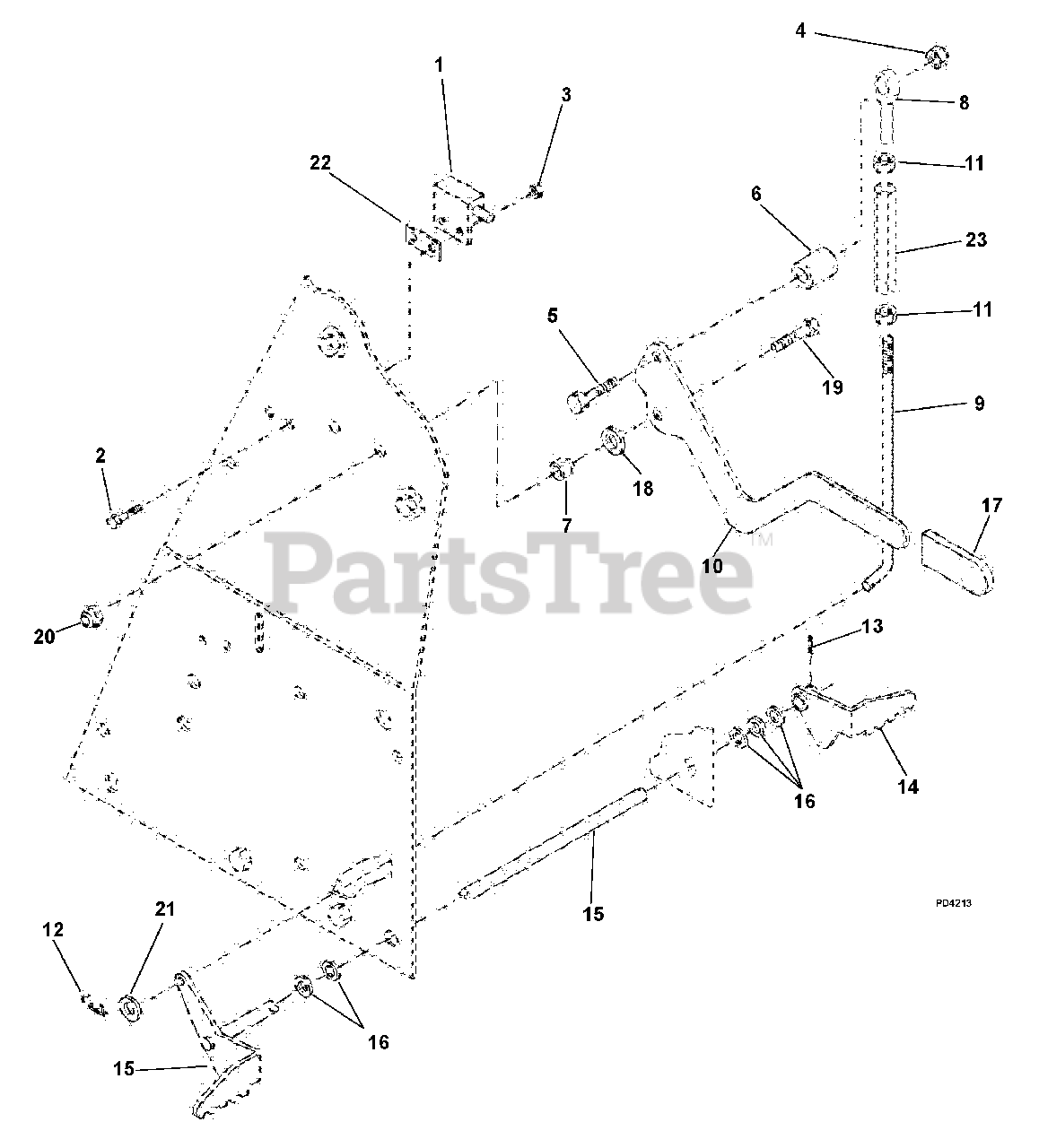

Park Brake Parts Diagram

  • Title

1

Gravely 00875300

Switch
(Superseded to D18038)

$4.99

$

Usually ships in 4-12 days

0

2

Gravely 05900110

Cap Screw, M5 x 0.8 x 20

$

$

Not available

3

Gravely 06522100

Nut, Hex M5 x .8

$

$

Not available

4

Gravely 06529600

Nut, Lock .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05963300

Bolt, Hex .38-16 x 2.00
(Superseded to 05901718)

$2.99

$

In Stock, Qty 14

0

6

Gravely 00883800

Spacer

$

$

Not available

7

Gravely 05500139

Bushing
(Superseded to GDU10037)

$

$

Not available

8

Gravely 00953700

End, LH Tie Rod

$

$

Not available

9

Gravely 00887300

Rod
(Superseded to TCU20956)

$

$

Not available

10

Gravely 00874100

Lever

$

$

Not available

11

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, only 1 left!

0

12

Gravely 06700010

Pin HAR .094 x 1.53 5/16-1/2

$

$

Not available

13

Gravely 05800004

Pin, Spring

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 00882600

Arm

$

$

Not available

15

Gravely 00882100

Shaft
(Superseded to TCA15070)

$64.99

$

Usually ships in 4-12 days

0

16

Gravely 06400029

Washer, JD24 .89 x 1.375 x .048
(Superseded to 24H1413)

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 00875800

Grip
(Superseded to D18079)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 06400022

Washer, 17/32" x 15/16" x 0.06
(Superseded to 24H1341)

$7.99

$

Usually ships in 4-12 days

0

19

Gravely 05955200

Bolt, M10 x 1.5 x 40

$

$

Not available

20

Gravely 06542400

Nut, Lock, Nylon M10-1.5

$3.49

$

Usually ships in 4-12 days

0

21

Gravely 06436200

Washer, Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 00879400

Spacer Plate

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 00887200

Turn Buckle

$

$

Not available
